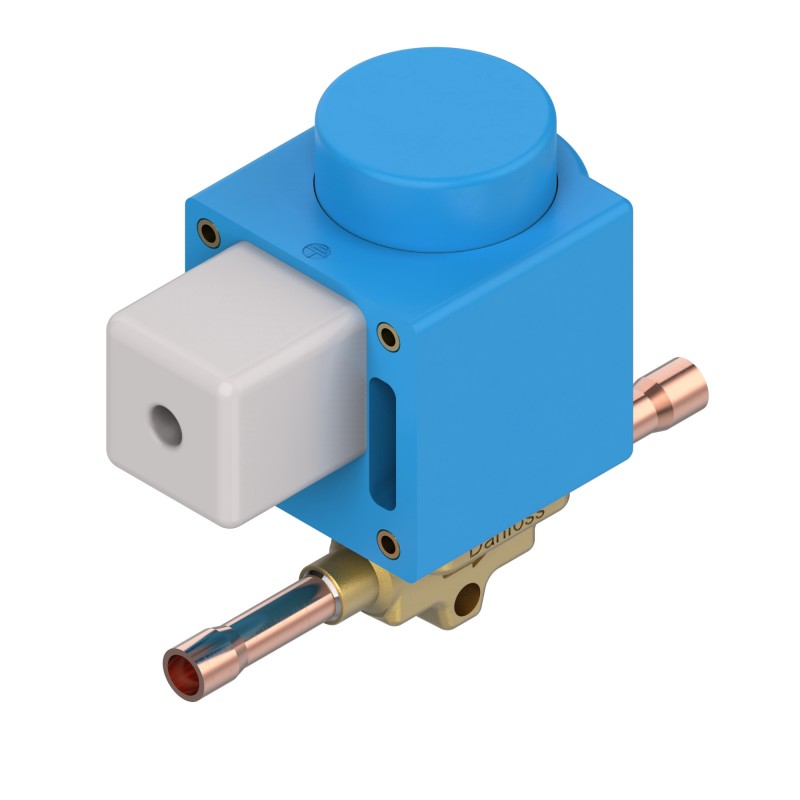

032L2031 DANFOSS REFRIGERATION EVO 101 Valve ODF-ODF 10 мм Multi 24
032L2031
DANFOSS REFRIGERATION
EVO 101 Valve ODF-ODF 10 мм Multi 24
Solenoid valve, EVO 101
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Function: NC, Inlet connection type: SOLDER, ODF, Outlet connection type: SOLDER, ODF, Manual operation option: No
Product details
| Gross weight | 0.51 kg |
| Net weight | 0.46 kg |
| EAN | 5702428533195 |
| Gross weight | 0.51 kg |
| Net weight | 0.46 kg |
| EAN | 5702428533195 |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [Max] | 175 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | EAC LLC CDC TYSK |
| Coil | Yes |
| Coil connection | Plug, DIN 43650-A |
| Coil type | BB230AS |
| Cv value [gal/min] | 0.31 gal/min |
| Direction | Straightway |
| Enclosure rating IP | IP65 |
| Frequency [Hz] | 50 Hz |
| Function | NC |
| Inlet connection type | SOLDER, ODF |
| Inlet size [mm] | 10 mm |
| Kv value [m³/h] | 0.27 m³/h |
| Manual operation option | No |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD[bar] 10W AC | 38 bar |
| MaxOPD[psi] 10W AC | 550 psi |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [Max] | 105 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 221 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| MinODP [bar] | 0 bar |
| MOPD[bar/psi] | COIL DEPENDEND |
| Orifice size [mm] | 3.3 mm |
| Outlet connection type | SOLDER, ODF |
| Outlet size [mm] | 10 mm |
| Packing format | Multi pack |
| Parts Program name | EVO |
| Power consumption | 11 W |
| Power consumption [W] 50Hz | 11 W |
| Product accessories | No |
| Product group | Solenoid valves |
| Product name | Solenoid valve |
| Quantity per packing format | 24 pc |
| Refrigerants | R1234yf R125 R134a R152a R22 R290 R32 R404A R407A R407C R407F R410A R417A R448A R449A R450A R452A R513A R600 R600a R1234ze(E) R507A |
| Serviceable | No |
| Supply voltage 50Hz Max [V] | 230 V |
| Supply voltage [V] AC | 230 V |
| Type | EVO 101 |
| Type designation | Solenoid valve, Solder |
| Valve operation | DIRECT |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [Max] | 175 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | EAC LLC CDC TYSK |
| Coil | Yes |
| Coil connection | Plug, DIN 43650-A |
| Coil type | BB230AS |
| Cv value [gal/min] | 0.31 gal/min |
| Direction | Straightway |
| Enclosure rating IP | IP65 |
| Frequency [Hz] | 50 Hz |
| Function | NC |
| Inlet connection type | SOLDER, ODF |
| Inlet size [mm] | 10 mm |
| Kv value [m³/h] | 0.27 m³/h |
| Manual operation option | No |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD[bar] 10W AC | 38 bar |
| MaxOPD[psi] 10W AC | 550 psi |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [Max] | 105 °C |
| Medium temperature range [°C] [Min] | -40 °C |
| Medium temperature range [°F] [Max] | 221 °F |
| Medium temperature range [°F] [Min] | -40 °F |
| MinODP [bar] | 0 bar |
| MOPD[bar/psi] | COIL DEPENDEND |
| Orifice size [mm] | 3.3 mm |
| Outlet connection type | SOLDER, ODF |
| Outlet size [mm] | 10 mm |
| Packing format | Multi pack |
| Parts Program name | EVO |
| Power consumption | 11 W |
| Power consumption [W] 50Hz | 11 W |
| Product accessories | No |
| Product group | Solenoid valves |
| Product name | Solenoid valve |
| Quantity per packing format | 24 pc |
| Refrigerants | R1234yf R125 R134a R152a R22 R290 R32 R404A R407A R407C R407F R410A R417A R448A R449A R450A R452A R513A R600 R600a R1234ze(E) R507A |
| Serviceable | No |
| Supply voltage 50Hz Max [V] | 230 V |
| Supply voltage [V] AC | 230 V |
| Type | EVO 101 |
| Type designation | Solenoid valve, Solder |
| Valve operation | DIRECT |
Datasheet - PDF
