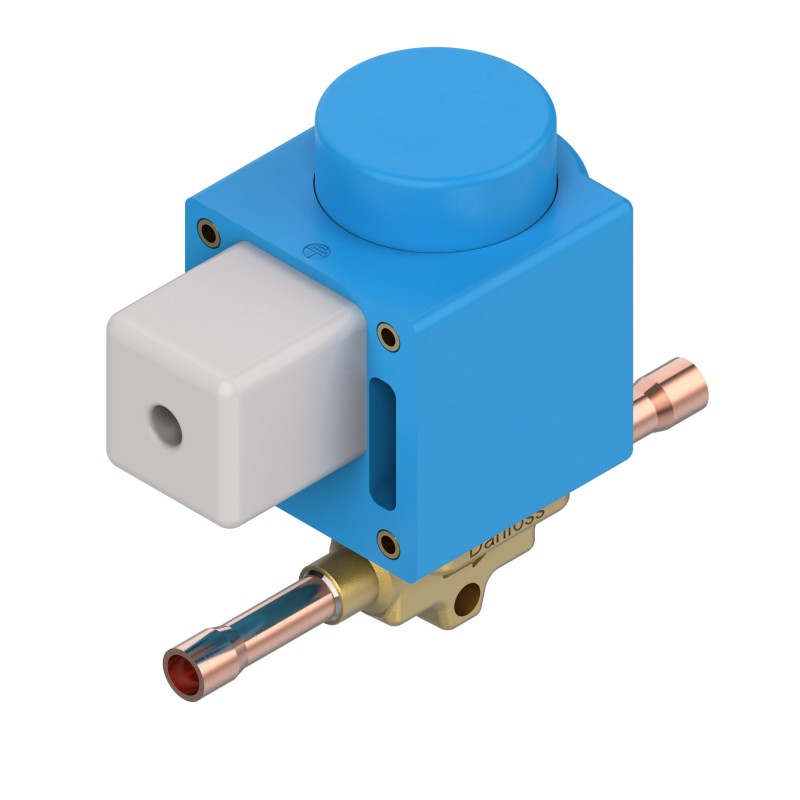

DANFOSS REFRIGERATION 032L2011 032L2011 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

032L2011 DANFOSS REFRIGERATION EVO 100 Valve ODF-ODF 1/4 in Multi 24

Name: 032L2011 DANFOSS REFRIGERATION EVO 100 Valve ODF-ODF 1/4 in Multi 24
Brand: DANFOSS REFRIGERATION
SKU: DAO032L2011
Price: 65.00 USD
Availability: OutOfStock

Reference: 032L2011

Manufacturer: DANFOSS REFRIGERATION

Description:

EVO 100 Valve ODF-ODF 1/4 in Multi 24

Solenoid valve, EVO 100

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 54,97 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Function: NC, Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Manual operation option: No

Product details

Gross weight	0.502 Kilogram
Net weight	0.455 Kilogram
Volume	0.911 Liter
EAN	5702428533171

Type	EVO 100
Product group	Solenoid valves
Product Name Description	Solenoid valve

Gross weight	0.502 Kilogram
Net weight	0.455 Kilogram
Volume	0.911 Liter
EAN	5702428533171
Type	EVO 100
Product group	Solenoid valves
Product Name Description	Solenoid valve

Actuator system [mm]	13.5 mm
Ambient temperature	-40 - 80 °C
Ambient temperature range [°F] [max]	175 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	EAC LLC CDC TYSK
China RoHS compliance	Out of scope
Coil	Yes
Coil connection	Plug, DIN 43650-A
Coil type	BB230AS
Contains batteries	No
Cv value [gal/min]	0.18 gal/min
Direction	Straightway
Enclosure rating IP	IP65
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a) 6(c)
Frequency [Hz]	50 Hz
Function	NC
Inlet connection type	Solder, ODF
Inlet size [in]	1/4 in
Kv value [m³/h]	0.16 m³/h
Lubricants compatibility	AB MO PAG PAO POE PVE
Manual operation option	No
Max. Working Pressure [bar]	45.2 bar
Max. Working Pressure [psig]	655 psig
MaxOPD[bar] 10W AC	38 bar
MaxOPD[psi] 10W AC	550 psi

Medium temp. range note	Defrost max 130°C/265°F
Medium temperature range [°C] [max]	105 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	221 °F
Medium temperature range [°F] [min]	-40 °F
MinODP [bar]	0 bar
MOPD[bar/psi]	Coil Dependent
Orifice size [mm]	2.3 mm
Outlet connection type	Solder, ODF
Outlet size [in]	1/4 in
Packing format	Multi pack
Parts Program name	EVO
Power consumption	11 W
Power consumption [W] 50Hz	11 W
Product accessories	No
Quantity per packing format	24 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1234yf R1234ze(E) R125 R134a R152a R22 R290 R32 R404A R407A R407C R407F R410A R417A R448A R449A R450A R452A R507A R513A R600 R600a
SCIP dossier no.	52f475eb-6026-442a-932e-863e4660eac8
SCIP dossier product name	EVR 2-8/EVO 100-102
Serviceable	No
Supply voltage 50Hz Max [V]	230 V
Supply voltage [V] AC	230 V
Type designation	Solenoid valve, Solder
Valve operation	Direct

Actuator system [mm]	13.5 mm
Ambient temperature	-40 - 80 °C
Ambient temperature range [°F] [max]	175 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	EAC LLC CDC TYSK
China RoHS compliance	Out of scope
Coil	Yes
Coil connection	Plug, DIN 43650-A
Coil type	BB230AS
Contains batteries	No
Cv value [gal/min]	0.18 gal/min
Direction	Straightway
Enclosure rating IP	IP65
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a) 6(c)
Frequency [Hz]	50 Hz
Function	NC
Inlet connection type	Solder, ODF
Inlet size [in]	1/4 in
Kv value [m³/h]	0.16 m³/h
Lubricants compatibility	AB MO PAG PAO POE PVE
Manual operation option	No
Max. Working Pressure [bar]	45.2 bar
Max. Working Pressure [psig]	655 psig
MaxOPD[bar] 10W AC	38 bar
MaxOPD[psi] 10W AC	550 psi
Medium temp. range note	Defrost max 130°C/265°F
Medium temperature range [°C] [max]	105 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	221 °F
Medium temperature range [°F] [min]	-40 °F
MinODP [bar]	0 bar
MOPD[bar/psi]	Coil Dependent
Orifice size [mm]	2.3 mm
Outlet connection type	Solder, ODF
Outlet size [in]	1/4 in
Packing format	Multi pack
Parts Program name	EVO
Power consumption	11 W
Power consumption [W] 50Hz	11 W
Product accessories	No
Quantity per packing format	24 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1234yf R1234ze(E) R125 R134a R152a R22 R290 R32 R404A R407A R407C R407F R410A R417A R448A R449A R450A R452A R507A R513A R600 R600a
SCIP dossier no.	52f475eb-6026-442a-932e-863e4660eac8
SCIP dossier product name	EVR 2-8/EVO 100-102
Serviceable	No
Supply voltage 50Hz Max [V]	230 V
Supply voltage [V] AC	230 V
Type designation	Solenoid valve, Solder
Valve operation	Direct
