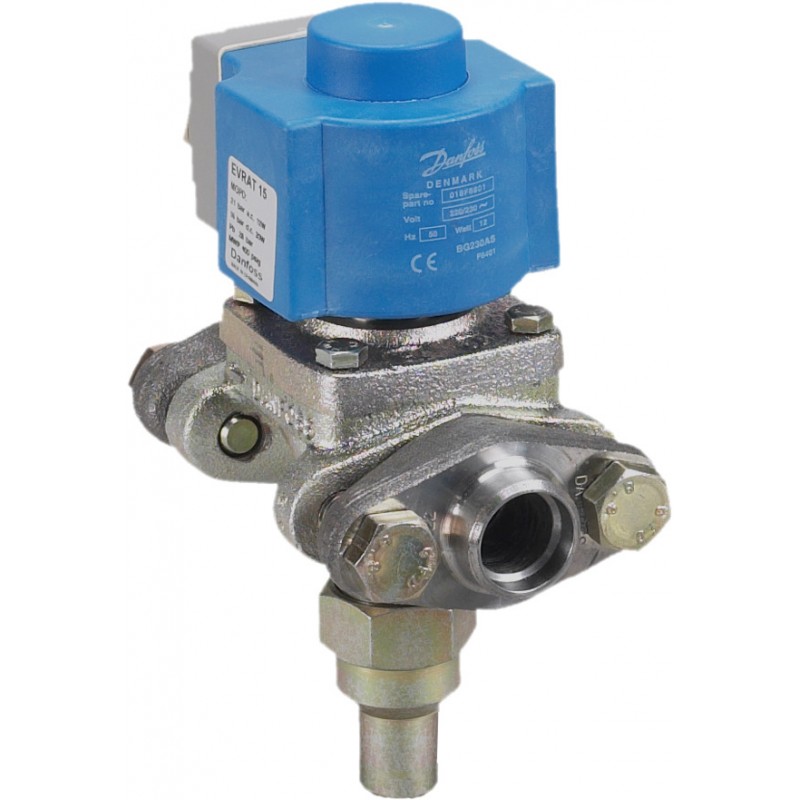

032F621832 DANFOSS REFRIGERATION EVRA15 Фланцевый клапан 10 Вт Клеммная коробка Sing
032F621832
DANFOSS REFRIGERATION
EVRA15 Фланцевый клапан 10 Вт Клеммная коробка Sing
Solenoid valve, EVRA 15
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Function: NC, Inlet connection type: Flange, Outlet connection type: Flange, Manual operation option: No, Cv value [gal/min]: 3.120, Kv value [m³/h]: 2.700
Product details
| Gross weight | 2.08 Kg |
| Net weight | 1.831 Kg |
| Volume | 6.248 Liter |
| EAN | 5702428049740 |
| Gross weight | 2.08 Kg |
| Net weight | 1.831 Kg |
| Volume | 6.248 Liter |
| EAN | 5702428049740 |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | EAC LLC CDC TYSK |
| Body material | Cast iron |
| Coil | Yes |
| Coil connection | Connection Box |
| Coil type | BE230CS |
| Cv value [gal/min] | 3.12 gal/min |
| Direction | Straightway |
| Enclosure rating IP | IP67 |
| Flow direction indicator | Embossed 1-way arrow |
| Frequency [Hz] | 50/60 Hz |
| Function | NC |
| Inlet connection type | Flange |
| Kv value [m³/h] | 2.7 m³/h |
| Manual operation option | No |
| Max. Working Pressure [bar] | 42 bar |
| Max. Working Pressure [psig] | 610 psig |
| MaxOPD[bar] 10W AC | 21 bar |
| MaxOPD[bar] 20W DC | 18 bar |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.05 bar |
| MinODP [psi] | 0.72 psi |
| Orifice size [mm] | 15 mm |
| Outlet connection type | Flange |
| Packing format | Single pack |
| Parts Program name | EVRA / EVRAT |
| Power consumption | 10 W |
| Power consumption [W] 50Hz | 17 W |
| Power consumption [W] 60Hz | 14 W |
| Product accessories | Flanges Solenoid valve accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R507A |
| Serviceable | Solenoid valve spare parts |
| Supply voltage 50Hz Max [V] | 230 V |
| Supply voltage 50Hz Min [V] | 220 V |
| Supply voltage 60Hz Max [V] | 230 V |
| Supply voltage 60Hz Min [V] | 220 V |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 220 V |
| Type | EVRA 15 |
| Type designation | Solenoid valve |
| Valve operation | Servo-diaphragm |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | EAC LLC CDC TYSK |
| Body material | Cast iron |
| Coil | Yes |
| Coil connection | Connection Box |
| Coil type | BE230CS |
| Cv value [gal/min] | 3.12 gal/min |
| Direction | Straightway |
| Enclosure rating IP | IP67 |
| Flow direction indicator | Embossed 1-way arrow |
| Frequency [Hz] | 50/60 Hz |
| Function | NC |
| Inlet connection type | Flange |
| Kv value [m³/h] | 2.7 m³/h |
| Manual operation option | No |
| Max. Working Pressure [bar] | 42 bar |
| Max. Working Pressure [psig] | 610 psig |
| MaxOPD[bar] 10W AC | 21 bar |
| MaxOPD[bar] 20W DC | 18 bar |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.05 bar |
| MinODP [psi] | 0.72 psi |
| Orifice size [mm] | 15 mm |
| Outlet connection type | Flange |
| Packing format | Single pack |
| Parts Program name | EVRA / EVRAT |
| Power consumption | 10 W |
| Power consumption [W] 50Hz | 17 W |
| Power consumption [W] 60Hz | 14 W |
| Product accessories | Flanges Solenoid valve accessories |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R507A |
| Serviceable | Solenoid valve spare parts |
| Supply voltage 50Hz Max [V] | 230 V |
| Supply voltage 50Hz Min [V] | 220 V |
| Supply voltage 60Hz Max [V] | 230 V |
| Supply voltage 60Hz Min [V] | 220 V |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 220 V |
| Type | EVRA 15 |
| Type designation | Solenoid valve |
| Valve operation | Servo-diaphragm |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
