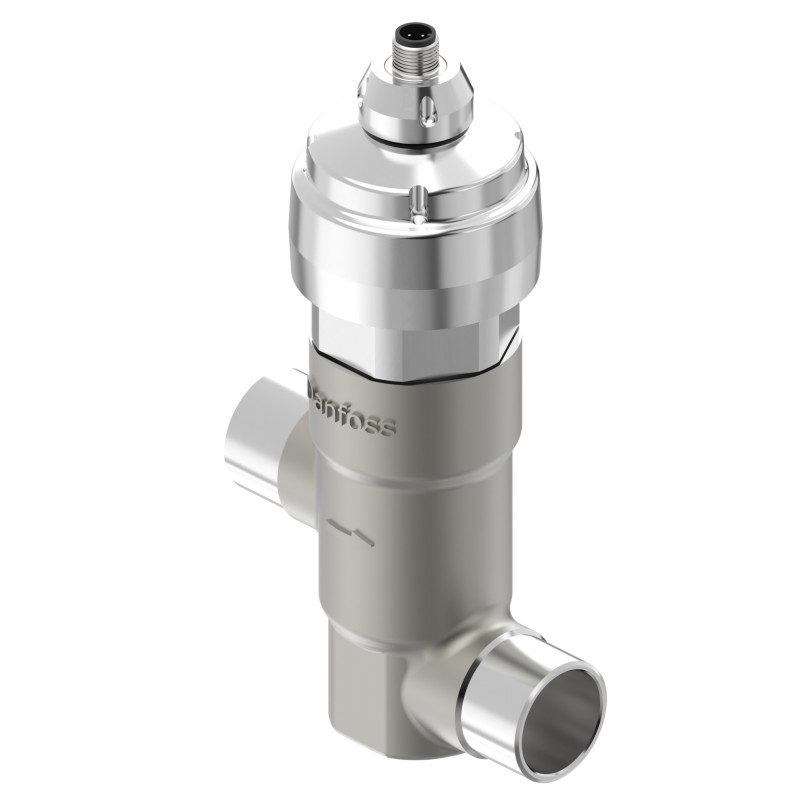

027H8232 DANFOSS REFRIGERATION CCMT 24 Передатчик Elec.reg.valve w.out
027H8232
DANFOSS REFRIGERATION
CCMT 24 Передатчик Elec.reg.valve w.out
Electric regulating valve, CCMT 24
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Kv value [m³/h]: 2.400, Max. Working Pressure [bar]: 140.0
Product details
| Gross weight | 2.97 kg |
| Net weight | 0.01 kg |
| EAN | 5702428030656 |
| Gross weight | 2.97 kg |
| Net weight | 0.01 kg |
| EAN | 5702428030656 |
| Ambient temperature range [°C] [Max] | 60 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 140 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | LLC CDC EURO-TYSK UL |
| Connection Solder size [in] | 1 1/8 in |
| Connection standard | EN10220 |
| Connection Weld size [in] | 1 in |
| Cv value [gal/min] | 2.784 gal/min |
| Diff.press.setting range [bar] | 90 bar |
| Diff.press.setting range [psi] | 1305 psi |
| Further information | Solder, ODF |
| Kv value [m³/h] | 2.4 m³/h |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2030 psig |
| MaxOPD [bar] | 90 bar |
| MaxOPD [psig] | 1305 psig |
| Packing format | Single pack |
| Product accessories | Electric valve accessories |
| Product description | Electric Expansion Valve |
| Product group | Press. and temp. regul. valves |
| Product name | Electric regulating valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R744 |
| Serviceable | Electric valve spare parts |
| Temperature range [°C] [Max] | 60 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 140 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | CCMT 24 |
| UL approved refrigerants | R134a R744 |
| Ambient temperature range [°C] [Max] | 60 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 140 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval | LLC CDC EURO-TYSK UL |
| Connection Solder size [in] | 1 1/8 in |
| Connection standard | EN10220 |
| Connection Weld size [in] | 1 in |
| Cv value [gal/min] | 2.784 gal/min |
| Diff.press.setting range [bar] | 90 bar |
| Diff.press.setting range [psi] | 1305 psi |
| Further information | Solder, ODF |
| Kv value [m³/h] | 2.4 m³/h |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2030 psig |
| MaxOPD [bar] | 90 bar |
| MaxOPD [psig] | 1305 psig |
| Packing format | Single pack |
| Product accessories | Electric valve accessories |
| Product description | Electric Expansion Valve |
| Product group | Press. and temp. regul. valves |
| Product name | Electric regulating valve |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R744 |
| Serviceable | Electric valve spare parts |
| Temperature range [°C] [Max] | 60 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 140 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | CCMT 24 |
| UL approved refrigerants | R134a R744 |
Datasheet - PDF
