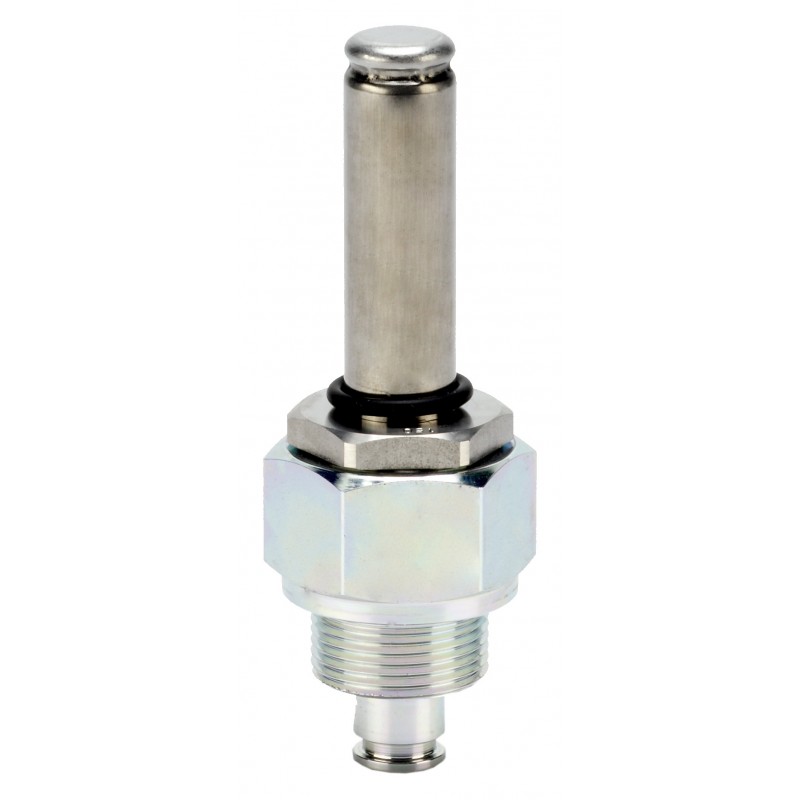

DANFOSS REFRIGERATION 027B112232 027B112232 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

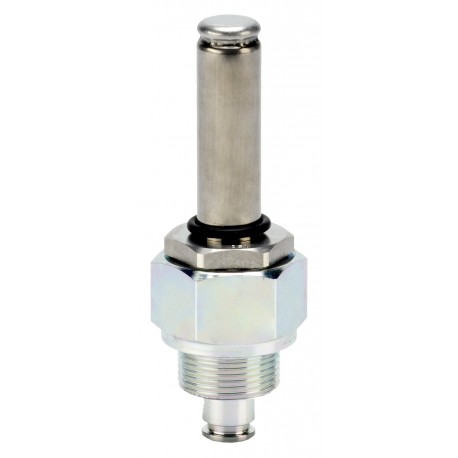

027B112232 DANFOSS REFRIGERATION Pilot valve

Name: 027B112232 DANFOSS REFRIGERATION Pilot valve
Brand: DANFOSS REFRIGERATION
SKU: DAO027B112232
Price: 223.98 USD
Availability: OutOfStock

Reference: 027B112232

Manufacturer: DANFOSS REFRIGERATION

Description:

Pilot valve

EVM PILOT VALVE 220V 50

Pilot valve, EVM

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 200,09 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Kv value [m³/h]: 0.28, Max. Working Pressure [bar]: 65

Product details

Gross weight	0.602 Kilogram
Net weight	0.549 Kilogram
Volume	0.845 Liter
EAN	5702428043915

Type	EVM
Product group	Press. and temp. regul. valves
Product Name Description	Pilot valve

Gross weight	0.602 Kilogram
Net weight	0.549 Kilogram
Volume	0.845 Liter
EAN	5702428043915
Type	EVM
Product group	Press. and temp. regul. valves
Product Name Description	Pilot valve

Actuator system [mm]	13.5 mm
Ambient temperature	-40 - 80 °C
Ambient temperature range [°F] [max]	176 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	LLC CDC TYSK UL
Body material	Steel
China RoHS compliance	Yes
China RoHS exemption clause	No
Coil	Yes
Coil connection	Connection Box
Coil type	BE230CS
Contains batteries	No
Cv value [gal/min]	0.324 gal/min
Direction	None
Enclosure rating IP	IP67
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Frequency [Hz]	50/60 Hz
Function	NC
Inlet connection type	Thread
Kv value [m³/h]	0.28 m³/h
Manual operation option	No
Max. Working Pressure [bar]	65 bar
Max. Working Pressure [psig]	943 psig
MaxOPD[bar] 10W AC	21 bar
MaxOPD[bar] 20W DC	14 bar

MaxOPD[psi] 10W AC	305 psi
Medium temperature range [°C] [max]	120 °C
Medium temperature range [°C] [min]	-60 °C
Medium temperature range [°F] [max]	248 °F
Medium temperature range [°F] [min]	-76 °F
Orifice size [mm]	3.3 mm
Packing format	Multi pack
Parts Program name	CVH ICS
Power consumption	10 W
Power consumption [W] 50Hz	17 W
Power consumption [W] 60Hz	14 W
Product accessories	Pilot valve accessories
Quantity per packing format	16 pc
REACH Candidate List substances	No
Refrigerants	R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A
Serviceable	No
Supply voltage 50Hz Max [V]	230 V
Supply voltage 50Hz Min [V]	220 V
Supply voltage 60Hz Max [V]	230 V
Supply voltage 60Hz Min [V]	220 V
Supply voltage [V] AC [max]	230 V
Supply voltage [V] AC [min]	220 V
Type designation	Solenoid valve
UL mark	Yes
Valve operation	Servo-piston

Actuator system [mm]	13.5 mm
Ambient temperature	-40 - 80 °C
Ambient temperature range [°F] [max]	176 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	LLC CDC TYSK UL
Body material	Steel
China RoHS compliance	Yes
China RoHS exemption clause	No
Coil	Yes
Coil connection	Connection Box
Coil type	BE230CS
Contains batteries	No
Cv value [gal/min]	0.324 gal/min
Direction	None
Enclosure rating IP	IP67
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Frequency [Hz]	50/60 Hz
Function	NC
Inlet connection type	Thread
Kv value [m³/h]	0.28 m³/h
Manual operation option	No
Max. Working Pressure [bar]	65 bar
Max. Working Pressure [psig]	943 psig
MaxOPD[bar] 10W AC	21 bar
MaxOPD[bar] 20W DC	14 bar
MaxOPD[psi] 10W AC	305 psi
Medium temperature range [°C] [max]	120 °C
Medium temperature range [°C] [min]	-60 °C
Medium temperature range [°F] [max]	248 °F
Medium temperature range [°F] [min]	-76 °F
Orifice size [mm]	3.3 mm
Packing format	Multi pack
Parts Program name	CVH ICS
Power consumption	10 W
Power consumption [W] 50Hz	17 W
Power consumption [W] 60Hz	14 W
Product accessories	Pilot valve accessories
Quantity per packing format	16 pc
REACH Candidate List substances	No
Refrigerants	R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A
Serviceable	No
Supply voltage 50Hz Max [V]	230 V
Supply voltage 50Hz Min [V]	220 V
Supply voltage 60Hz Max [V]	230 V
Supply voltage 60Hz Min [V]	220 V
Supply voltage [V] AC [max]	230 V
Supply voltage [V] AC [min]	220 V
Type designation	Solenoid valve
UL mark	Yes
Valve operation	Servo-piston

DATASHEET - PDF

Title

Size

Type

027B112232 027B112232 EN_027F1159.pdf

1 Mbytes

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
