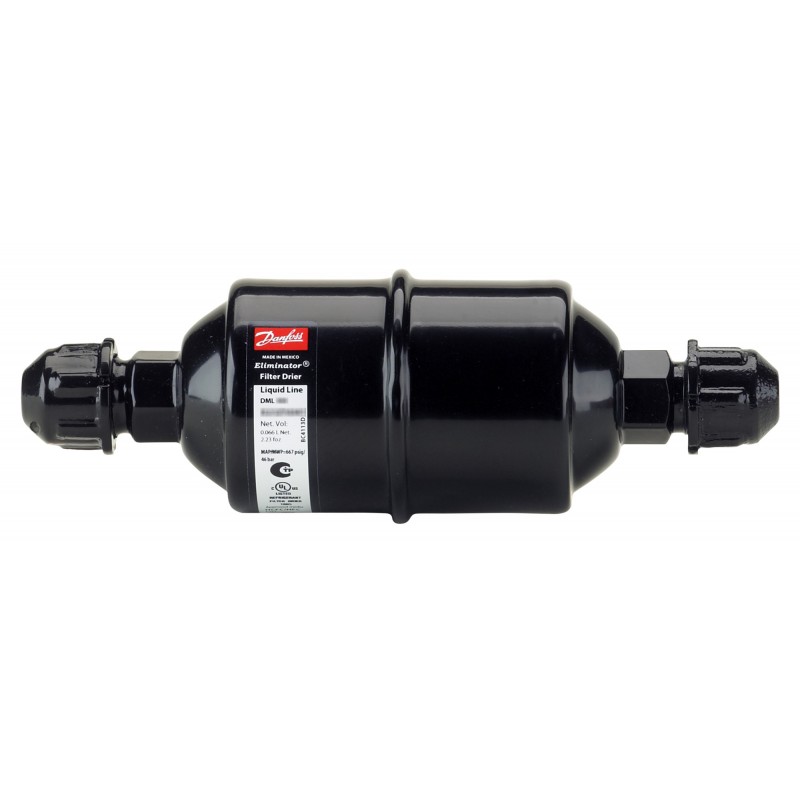

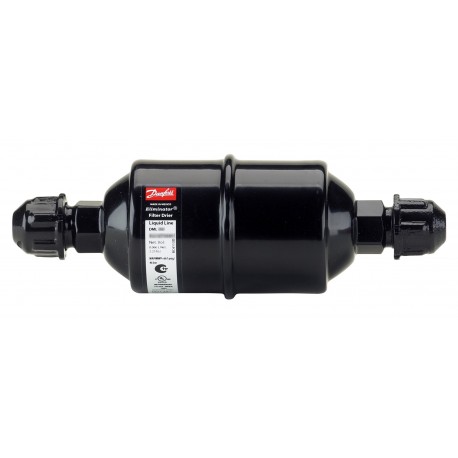

023Z504191 DANFOSS REFRIGERATION Фильтр сухой DML 084 M/24
023Z504191
DANFOSS REFRIGERATION
Фильтр сухой DML 084 M/24
Hermetic filter drier, DML, 08 cu.in., Steel
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Inlet connection type: FLARE, Outlet connection type: FLARE, Core Size code: 08 cu.in.
Product details
| Gross weight | 0.46 kg |
| Net weight | 0.37 kg |
| EAN | 5702428650090 |
| Gross weight | 0.46 kg |
| Net weight | 0.37 kg |
| EAN | 5702428650090 |
| Acid capacity [g] | 0.54 g |
| Acid capacity [oz] | 0.019 oz |
| Activated alum/Molec sieve [%] | 0% / 100% |
| Approval | UL |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| Category | Art. 3, par. 3 |
| Connection material | Steel |
| Core | Solid core |
| Core Size code | 08 cu.in. |
| Drying Cap[Drops of Water]24°C | R134a: 250 R290: -- R32: 211 R404A: 261 R407C: 243 R410A: 227 R507: 273 |
| Drying Cap[Drops of Water]52°C | R134a: 229 R290: -- R32: 194 R404A: 247 R407C: 224 R410A: 201 R507: 246 |
| Flow capacity [kW] | R134a: 21.8 R290: -- R32: 33.2 R404A: 15.3 R407C: 22.3 R410A: 22.6 R507: 14.8 |
| Flow capacity [TR] | R134a: 6.2 R290: -- R32: 9.4 R404A: 4.4 R407C: 6.3 R410A: 6.4 R507: 4.2 |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
| Inlet 1 connection size [in] | 1/2 in |
| Inlet connection size [mm] | 12 mm |
| Inlet connection type | FLARE |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 3.87 oz |
| Net volume [l] | 0.114 L |
| Oil free refrigerants | R1234ze(E) R134a R513A R515A |
| Outlet 1 connection size [in] | 1/2 in |
| Outlet connection size [mm] | 12 mm |
| Outlet connection type | FLARE |
| Packing format | Multi pack |
| Product accessories | Generic accessories |
| Product description | Liquid line filter drier |
| Product group | Filter driers |
| Product name | Hermetic filter drier |
| Quantity per packing format | 24 pc |
| Refrigerant oil compatibility | Oilfree applications R1234ze(E) R134a R513A R515A |
| Refrigerants | R1234yf R125 R134a R22/R407C R23 R32 R404A R407A R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R507A R513A R1234ze(E) R1233zd(E) R407H R454A R454C R463A R515B R516A |
| Serviceable | No |
| Shell volume [foz US] | 5.85 oz |
| Shell volume [l] | 0.17 L |
| Solid core surface [cm2] | 118 cm² |
| Solid core surface [in2] | 18.29 in² |
| Solid core volume [cm3] | 59 cm³ |
| Solid core volume [in3] | 3.57 in³ |
| Specification key | DML 084 |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | DML |
| Type designation | DML 084 |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A |
| Acid capacity [g] | 0.54 g |
| Acid capacity [oz] | 0.019 oz |
| Activated alum/Molec sieve [%] | 0% / 100% |
| Approval | UL |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| Category | Art. 3, par. 3 |
| Connection material | Steel |
| Core | Solid core |
| Core Size code | 08 cu.in. |
| Drying Cap[Drops of Water]24°C | R134a: 250 R290: -- R32: 211 R404A: 261 R407C: 243 R410A: 227 R507: 273 |
| Drying Cap[Drops of Water]52°C | R134a: 229 R290: -- R32: 194 R404A: 247 R407C: 224 R410A: 201 R507: 246 |
| Flow capacity [kW] | R134a: 21.8 R290: -- R32: 33.2 R404A: 15.3 R407C: 22.3 R410A: 22.6 R507: 14.8 |
| Flow capacity [TR] | R134a: 6.2 R290: -- R32: 9.4 R404A: 4.4 R407C: 6.3 R410A: 6.4 R507: 4.2 |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
| Inlet 1 connection size [in] | 1/2 in |
| Inlet connection size [mm] | 12 mm |
| Inlet connection type | FLARE |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 3.87 oz |
| Net volume [l] | 0.114 L |
| Oil free refrigerants | R1234ze(E) R134a R513A R515A |
| Outlet 1 connection size [in] | 1/2 in |
| Outlet connection size [mm] | 12 mm |
| Outlet connection type | FLARE |
| Packing format | Multi pack |
| Product accessories | Generic accessories |
| Product description | Liquid line filter drier |
| Product group | Filter driers |
| Product name | Hermetic filter drier |
| Quantity per packing format | 24 pc |
| Refrigerant oil compatibility | Oilfree applications R1234ze(E) R134a R513A R515A |
| Refrigerants | R1234yf R125 R134a R22/R407C R23 R32 R404A R407A R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R507A R513A R1234ze(E) R1233zd(E) R407H R454A R454C R463A R515B R516A |
| Serviceable | No |
| Shell volume [foz US] | 5.85 oz |
| Shell volume [l] | 0.17 L |
| Solid core surface [cm2] | 118 cm² |
| Solid core surface [in2] | 18.29 in² |
| Solid core volume [cm3] | 59 cm³ |
| Solid core volume [in3] | 3.57 in³ |
| Specification key | DML 084 |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | DML |
| Type designation | DML 084 |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
