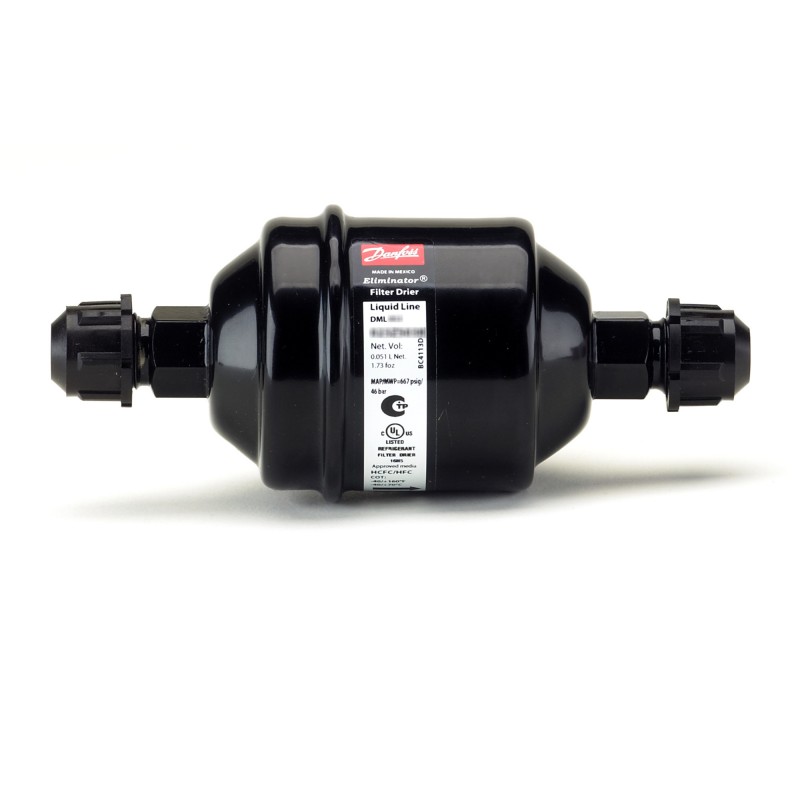

023Z501091 DANFOSS REFRIGERATION Фильтр сухой DCL 165 M/12
023Z501091
DANFOSS REFRIGERATION
Фильтр сухой DCL 165 M/12
Hermetic filter drier, DCL, 16 cu.in., Steel
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Inlet connection type: FLARE, Outlet connection type: FLARE, Core Size code: 16 cu.in.
Product details
| Gross weight | 0.85 kg |
| Net weight | 0.82 kg |
| EAN | 5702428651738 |
| Gross weight | 0.85 kg |
| Net weight | 0.82 kg |
| EAN | 5702428651738 |
| Acid capacity [g] | 3.11 g |
| Acid capacity [oz] | 0.11 oz |
| Activated alum/Molec sieve [%] | 20% / 80% |
| Approval | UL |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| Category | Art. 3, par. 3 |
| Connection material | Steel |
| Core | Solid core |
| Core Size code | 16 cu.in. |
| Drying Cap[Drops of Water]24°C | R134a: 443 R290: -- R32: 373 R404A: 461 R407C: 430 R410A: 401 R507: 483 |
| Drying Cap[Drops of Water]52°C | R134a: 405 R290: -- R32: 343 R404A: 437 R407C: 396 R410A: 356 R507: 434 |
| Flow capacity [kW] | R134a: 38.7 R290: -- R32: 58.9 R404A: 27.2 R407C: 39.6 R410A: 40.2 R507: 26.4 |
| Flow capacity [TR] | R134a: 11.0 R290: -- R32: 16.8 R404A: 7.7 R407C: 11.3 R410A: 11.4 R507: 7.5 |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | II |
| Inlet 1 connection size [in] | 5/8 in |
| Inlet connection size [mm] | 16 mm |
| Inlet connection type | FLARE |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 7.63 oz |
| Net volume [l] | 0.226 L |
| Oil free refrigerants | R1234ze(E) R134a R513A R515A |
| Outlet 1 connection size [in] | 5/8 in |
| Outlet connection size [mm] | 16 mm |
| Outlet connection type | FLARE |
| Packing format | Multi pack |
| Product accessories | Generic accessories |
| Product description | Liquid line filter drier |
| Product group | Filter driers |
| Product name | Hermetic filter drier |
| Quantity per packing format | 12 pc |
| Refrigerant oil compatibility | Oilfree applications R1234ze(E) R134a R513A R515A |
| Refrigerants | R1234yf R125 R134a R22/R407C R23 R290 R32 R404A R407A R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R507A R513A R600 R1234ze(E) |
| Serviceable | No |
| Shell volume [foz US] | 11.97 oz |
| Shell volume [l] | 0.35 L |
| Solid core surface [cm2] | 183 cm² |
| Solid core surface [in2] | 28.34 in² |
| Solid core volume [cm3] | 128 cm³ |
| Solid core volume [in3] | 7.84 in³ |
| Specification key | DCL 165 |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | DCL |
| Type designation | DCL 165 |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A |
| Acid capacity [g] | 3.11 g |
| Acid capacity [oz] | 0.11 oz |
| Activated alum/Molec sieve [%] | 20% / 80% |
| Approval | UL |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| Category | Art. 3, par. 3 |
| Connection material | Steel |
| Core | Solid core |
| Core Size code | 16 cu.in. |
| Drying Cap[Drops of Water]24°C | R134a: 443 R290: -- R32: 373 R404A: 461 R407C: 430 R410A: 401 R507: 483 |
| Drying Cap[Drops of Water]52°C | R134a: 405 R290: -- R32: 343 R404A: 437 R407C: 396 R410A: 356 R507: 434 |
| Flow capacity [kW] | R134a: 38.7 R290: -- R32: 58.9 R404A: 27.2 R407C: 39.6 R410A: 40.2 R507: 26.4 |
| Flow capacity [TR] | R134a: 11.0 R290: -- R32: 16.8 R404A: 7.7 R407C: 11.3 R410A: 11.4 R507: 7.5 |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | II |
| Inlet 1 connection size [in] | 5/8 in |
| Inlet connection size [mm] | 16 mm |
| Inlet connection type | FLARE |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 7.63 oz |
| Net volume [l] | 0.226 L |
| Oil free refrigerants | R1234ze(E) R134a R513A R515A |
| Outlet 1 connection size [in] | 5/8 in |
| Outlet connection size [mm] | 16 mm |
| Outlet connection type | FLARE |
| Packing format | Multi pack |
| Product accessories | Generic accessories |
| Product description | Liquid line filter drier |
| Product group | Filter driers |
| Product name | Hermetic filter drier |
| Quantity per packing format | 12 pc |
| Refrigerant oil compatibility | Oilfree applications R1234ze(E) R134a R513A R515A |
| Refrigerants | R1234yf R125 R134a R22/R407C R23 R290 R32 R404A R407A R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R507A R513A R600 R1234ze(E) |
| Serviceable | No |
| Shell volume [foz US] | 11.97 oz |
| Shell volume [l] | 0.35 L |
| Solid core surface [cm2] | 183 cm² |
| Solid core surface [in2] | 28.34 in² |
| Solid core volume [cm3] | 128 cm³ |
| Solid core volume [in3] | 7.84 in³ |
| Specification key | DCL 165 |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | DCL |
| Type designation | DCL 165 |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
