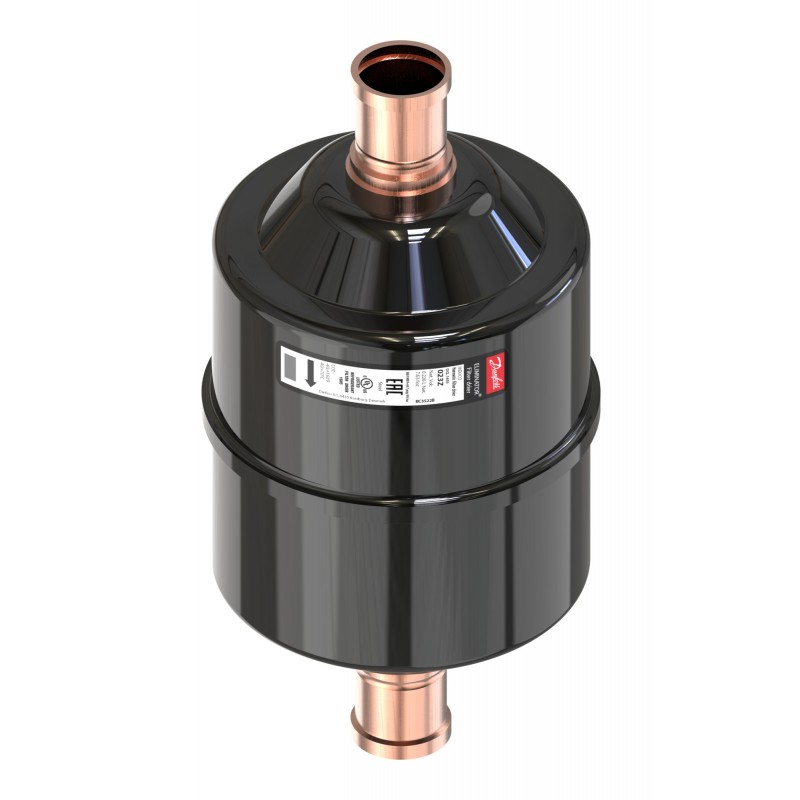

023Z458191 DANFOSS REFRIGERATION Фильтр сухой DML 165S M/12
023Z458191
DANFOSS REFRIGERATION
Фильтр сухой DML 165S M/12
Hermetic filter drier, DML, 16 cu.in., Steel Cu-plated
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Inlet connection type: SOLDER, ODF, Outlet connection type: SOLDER, ODF, Core Size code: 16 cu.in.
Product details
| Gross weight | 0.75 kg |
| Net weight | 0.67 kg |
| EAN | 5702428649957 |
| Gross weight | 0.75 kg |
| Net weight | 0.67 kg |
| EAN | 5702428649957 |
| Acid capacity [g] | 1.2 g |
| Acid capacity [oz] | 0.042 oz |
| Activated alum/Molec sieve [%] | 0% / 100% |
| Approval | UL |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| Category | Art. 3, par. 3 |
| Connection material | Steel Cu-plated |
| Core | Solid core |
| Core Size code | 16 cu.in. |
| Drying Cap[Drops of Water]24°C | R134a: 559 R290: -- R32: 470 R404A: 582 R407C: 543 R410A: 506 R507: 610 |
| Drying Cap[Drops of Water]52°C | R134a: 512 R290: -- R404A: 551 R407C: 500 R410A: 450 R507: 548 R32: 433 |
| Flow capacity [kW] | R134a: 38.7 R290: 46.6 R32: 58.9 R404A: 27.2 R407C: 39.6 R410A: 40.2 R507: 26.4 |
| Flow capacity [TR] | R134a: 11.0 R290: 13.2 R32: 16.8 R404A: 7.7 R407C: 11.3 R410A: 11.4 R507: 7.5 |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
| Inlet 1 connection size [in] | 5/8 in |
| Inlet connection type | SOLDER, ODF |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 7.63 oz |
| Net volume [l] | 0.226 L |
| Oil free refrigerants | R1234ze(E) R134a R513A R515A |
| Outlet 1 connection size [in] | 5/8 in |
| Outlet connection type | SOLDER, ODF |
| Packing format | Multi pack |
| Product description | Liquid line filter drier |
| Product group | Filter driers |
| Product name | Hermetic filter drier |
| Quantity per packing format | 12 pc |
| Refrigerant oil compatibility | Oilfree applications R1234ze(E) R134a R513A R515A |
| Refrigerants | R1234yf R125 R134a R22/R407C R23 R290 R32 R404A R407A R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R507A R513A R600 R1234ze(E) R1233zd(E) R407H R454A R463A R516A R454C R515B |
| Serviceable | No |
| Shell volume [foz US] | 11.97 oz |
| Shell volume [l] | 0.35 L |
| Solid core surface [cm2] | 183 cm² |
| Solid core surface [in2] | 28.34 in² |
| Solid core volume [cm3] | 128 cm³ |
| Solid core volume [in3] | 7.84 in³ |
| Specification key | DML 165S |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | DML |
| Type designation | DML 165S |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A |
| Acid capacity [g] | 1.2 g |
| Acid capacity [oz] | 0.042 oz |
| Activated alum/Molec sieve [%] | 0% / 100% |
| Approval | UL |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| Category | Art. 3, par. 3 |
| Connection material | Steel Cu-plated |
| Core | Solid core |
| Core Size code | 16 cu.in. |
| Drying Cap[Drops of Water]24°C | R134a: 559 R290: -- R32: 470 R404A: 582 R407C: 543 R410A: 506 R507: 610 |
| Drying Cap[Drops of Water]52°C | R134a: 512 R290: -- R404A: 551 R407C: 500 R410A: 450 R507: 548 R32: 433 |
| Flow capacity [kW] | R134a: 38.7 R290: 46.6 R32: 58.9 R404A: 27.2 R407C: 39.6 R410A: 40.2 R507: 26.4 |
| Flow capacity [TR] | R134a: 11.0 R290: 13.2 R32: 16.8 R404A: 7.7 R407C: 11.3 R410A: 11.4 R507: 7.5 |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
| Inlet 1 connection size [in] | 5/8 in |
| Inlet connection type | SOLDER, ODF |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 7.63 oz |
| Net volume [l] | 0.226 L |
| Oil free refrigerants | R1234ze(E) R134a R513A R515A |
| Outlet 1 connection size [in] | 5/8 in |
| Outlet connection type | SOLDER, ODF |
| Packing format | Multi pack |
| Product description | Liquid line filter drier |
| Product group | Filter driers |
| Product name | Hermetic filter drier |
| Quantity per packing format | 12 pc |
| Refrigerant oil compatibility | Oilfree applications R1234ze(E) R134a R513A R515A |
| Refrigerants | R1234yf R125 R134a R22/R407C R23 R290 R32 R404A R407A R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R507A R513A R600 R1234ze(E) R1233zd(E) R407H R454A R463A R516A R454C R515B |
| Serviceable | No |
| Shell volume [foz US] | 11.97 oz |
| Shell volume [l] | 0.35 L |
| Solid core surface [cm2] | 183 cm² |
| Solid core surface [in2] | 28.34 in² |
| Solid core volume [cm3] | 128 cm³ |
| Solid core volume [in3] | 7.84 in³ |
| Specification key | DML 165S |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | DML |
| Type designation | DML 165S |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A |
