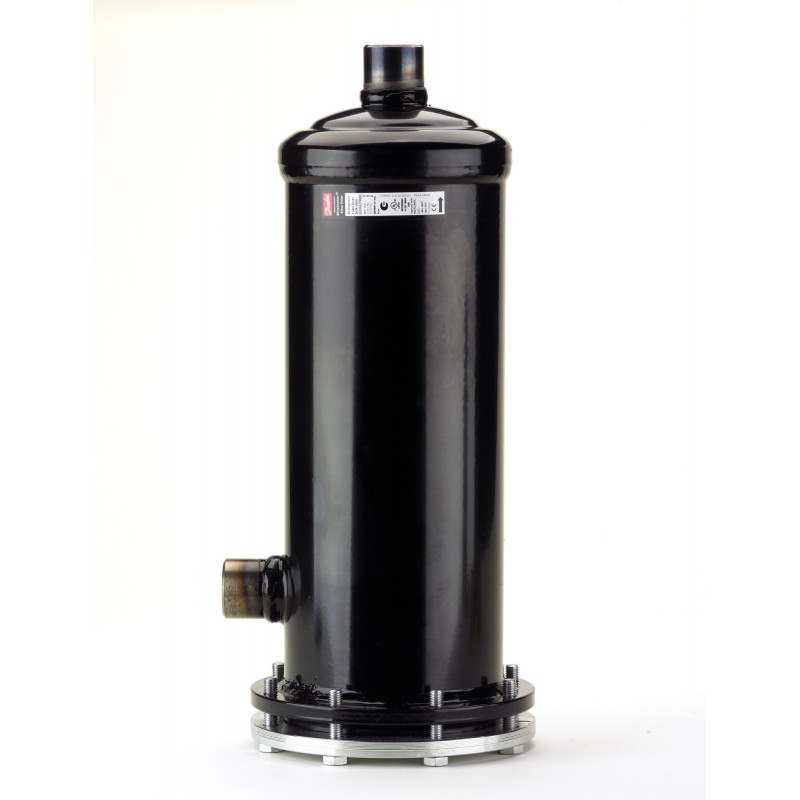

023U7066 DANFOSS REFRIGERATION ФИЛЬТР DCR 1449 Assy.
023U7066
DANFOSS REFRIGERATION
ФИЛЬТР DCR 1449 Assy.
Filter drier, shell, DCR
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Core Size code: 144 cu.in., Connection material: Steel, Connection Solder size [in]: 1 1/8 in
Product details
| Gross weight | 8.26 kg |
| Net weight | 7.6 kg |
| EAN | 5702428126786 |
| Gross weight | 8.26 kg |
| Net weight | 7.6 kg |
| EAN | 5702428126786 |
| Approval | CE CSA UL UKCA |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| Category | I |
| Connection material | Steel |
| Connection options | Butt weld/Solder, ODF |
| Connection Solder size [in] | 1 1/8 in |
| Connection standard | ANSI/ASME B36.10M |
| Connection type | Butt weld/Solder, ODF |
| Connection Weld size [in] | 1 in |
| Core Size code | 144 cu.in. |
| Cover | Plug |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
| Liq Cap [Kw] | R1234ze: 200.4 R134a: 225.7 R404A: 158.8 R407C: 231.3 R410A: 234.9 R452A: 160.8 R507: 154.0 |
| Liq Cap [TR] | R1234ze: 57.0 R134a: 64.2 R404A: 45.1 R407C: 65.8 R410A: 66.8 R452A: 45.7 R507: 43.8 |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2004)[IMP] | DELTA P=1PSI TLIQ= 86°F TVAP=5°F |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| MWP comments | 35_bar/508_psig_as_receiver 35_bar/508_psig_with_48-F |
| Net volume [foz US] | 120.96 oz |
| Net volume [l] | 3.577 L |
| Number of cores | 3 |
| Oil free refrigerants | R134a R513A R515A |
| Packing format | Single pack |
| Parts included | 1 cov 8 Bolts 6 felt gaskets |
| Parts Program name | DCR |
| Pressure Design | Normal Pressure |
| Product accessories | DCR accessories |
| Product description | Refrigerant Filter Drier |
| Product family name | DCR-DA DCR-DC DCR-DM |
| Product group | Filter driers |
| Product name | Filter drier, shell |
| Quantity per packing format | 1 pc |
| Refrigerant oil compatibility | Oilfree applications R134a R513A R515A |
| Refrigerants | R125 R134a R22/R407C R23 R404A R407A R407F R410A R438A R448A R449A R449B R450A R452A R507A R513A R1234ze(E) |
| Replace comp1 (Danfoss code) | 023Z9066 |
| Replace comp2 (Danfoss code) | 023Z2871 |
| Serviceable | DCR spare parts |
| Shell volume [foz US] | 164.29 oz |
| Shell volume [l] | 4.85 L |
| Specification key | DCR 1449 |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | DCR |
| Type designation | DCR 1449 |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R438A R448A R449A R449B R450A R452A R507A R513A |
| Approval | CE CSA UL UKCA |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| Category | I |
| Connection material | Steel |
| Connection options | Butt weld/Solder, ODF |
| Connection Solder size [in] | 1 1/8 in |
| Connection standard | ANSI/ASME B36.10M |
| Connection type | Butt weld/Solder, ODF |
| Connection Weld size [in] | 1 in |
| Core Size code | 144 cu.in. |
| Cover | Plug |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
| Liq Cap [Kw] | R1234ze: 200.4 R134a: 225.7 R404A: 158.8 R407C: 231.3 R410A: 234.9 R452A: 160.8 R507: 154.0 |
| Liq Cap [TR] | R1234ze: 57.0 R134a: 64.2 R404A: 45.1 R407C: 65.8 R410A: 66.8 R452A: 45.7 R507: 43.8 |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2004)[IMP] | DELTA P=1PSI TLIQ= 86°F TVAP=5°F |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| MWP comments | 35_bar/508_psig_as_receiver 35_bar/508_psig_with_48-F |
| Net volume [foz US] | 120.96 oz |
| Net volume [l] | 3.577 L |
| Number of cores | 3 |
| Oil free refrigerants | R134a R513A R515A |
| Packing format | Single pack |
| Parts included | 1 cov 8 Bolts 6 felt gaskets |
| Parts Program name | DCR |
| Pressure Design | Normal Pressure |
| Product accessories | DCR accessories |
| Product description | Refrigerant Filter Drier |
| Product family name | DCR-DA DCR-DC DCR-DM |
| Product group | Filter driers |
| Product name | Filter drier, shell |
| Quantity per packing format | 1 pc |
| Refrigerant oil compatibility | Oilfree applications R134a R513A R515A |
| Refrigerants | R125 R134a R22/R407C R23 R404A R407A R407F R410A R438A R448A R449A R449B R450A R452A R507A R513A R1234ze(E) |
| Replace comp1 (Danfoss code) | 023Z9066 |
| Replace comp2 (Danfoss code) | 023Z2871 |
| Serviceable | DCR spare parts |
| Shell volume [foz US] | 164.29 oz |
| Shell volume [l] | 4.85 L |
| Specification key | DCR 1449 |
| Temperature range [°C] [Max] | 70 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 160 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | DCR |
| Type designation | DCR 1449 |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R438A R448A R449A R449B R450A R452A R507A R513A |
