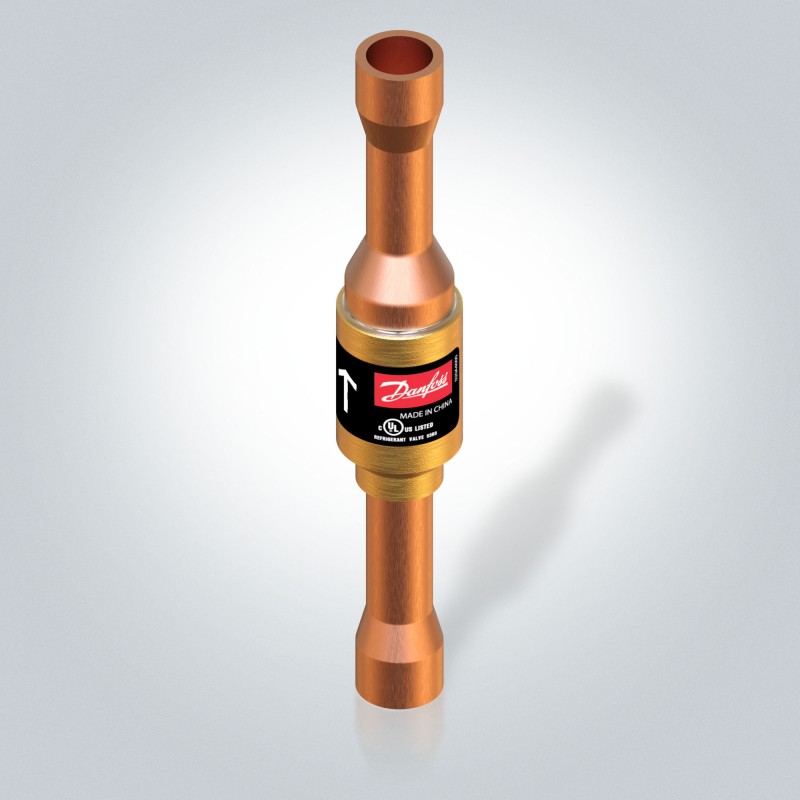

020B4000 DANFOSS REFRIGERATION NRV 10s H Проверить Valve M/25X4
020B4000
DANFOSS REFRIGERATION
NRV 10s H Проверить Valve M/25X4
Check valve, NRV 10s H, Max. Working Pressure [bar]: 90.0
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Inlet connection type: SOLDER, ODF, Outlet connection type: SOLDER, ODF, Direction: Straightway, Packing format: Multi pack
Product details
| Gross weight | 0.08 kg |
| Net weight | 0.07 kg |
| EAN | 5702428571821 |
| Gross weight | 0.08 kg |
| Net weight | 0.07 kg |
| EAN | 5702428571821 |
| Approval | C UL US LISTED |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 1.04 gal/min |
| Design | Piston |
| Direction | Straightway |
| Flow direction | Single-flow |
| Flow direction indicator | On product label |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 3/8 in |
| Kv value [m³/h] | 0.9 m³/h |
| Max. Working Pressure [bar] | 90 bar |
| Max. Working Pressure [psig] | 1305 psig |
| Min. Pressure drop [bar] | 1.1 bar |
| Min. Pressure drop [psi] | 16 psi |
| MinODP [bar] | 0.4 bar |
| MinODP [psi] | 5.8 psi |
| Outlet connection type | SOLDER, ODF |
| Outlet size [in] | 3/8 in |
| Packing format | Multi pack |
| Product family name | NRV v2 |
| Product group | Check valves |
| Product name | Check valve |
| Quantity per packing format | 25 pc |
| Rated cap cond, Hot gas [IMP] | tcond=86 °F tdisc=176 °F tevap=14 °F thotgas=140 °F tsub=9 °F |
| Rated cap cond, Hot gas [SI] | tcond=30 °C tdisc=80 °C tevap=-10 °C thotgas=60 °C tsub=5K |
| Rated cap cond, Liq. cap [IMP] | tcond=86 °F tevap=14 °F tsub=9 °F |
| Rated cap cond, Liq. cap [SI] | tcond=30 °C tevap=-10 °C tsub=5K |
| Refrigerant oil compatibility | Oilfree applications R1234ze(E) R134a R513A R515B R516A |
| Refrigerants | R744 |
| Temperature range [°C] [Max] | 140 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 285 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | NRV 10s H |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL approved refrigerants | R744 |
| Approval | C UL US LISTED |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 1.04 gal/min |
| Design | Piston |
| Direction | Straightway |
| Flow direction | Single-flow |
| Flow direction indicator | On product label |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 3/8 in |
| Kv value [m³/h] | 0.9 m³/h |
| Max. Working Pressure [bar] | 90 bar |
| Max. Working Pressure [psig] | 1305 psig |
| Min. Pressure drop [bar] | 1.1 bar |
| Min. Pressure drop [psi] | 16 psi |
| MinODP [bar] | 0.4 bar |
| MinODP [psi] | 5.8 psi |
| Outlet connection type | SOLDER, ODF |
| Outlet size [in] | 3/8 in |
| Packing format | Multi pack |
| Product family name | NRV v2 |
| Product group | Check valves |
| Product name | Check valve |
| Quantity per packing format | 25 pc |
| Rated cap cond, Hot gas [IMP] | tcond=86 °F tdisc=176 °F tevap=14 °F thotgas=140 °F tsub=9 °F |
| Rated cap cond, Hot gas [SI] | tcond=30 °C tdisc=80 °C tevap=-10 °C thotgas=60 °C tsub=5K |
| Rated cap cond, Liq. cap [IMP] | tcond=86 °F tevap=14 °F tsub=9 °F |
| Rated cap cond, Liq. cap [SI] | tcond=30 °C tevap=-10 °C tsub=5K |
| Refrigerant oil compatibility | Oilfree applications R1234ze(E) R134a R513A R515B R516A |
| Refrigerants | R744 |
| Temperature range [°C] [Max] | 140 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 285 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | NRV 10s H |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL approved refrigerants | R744 |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
