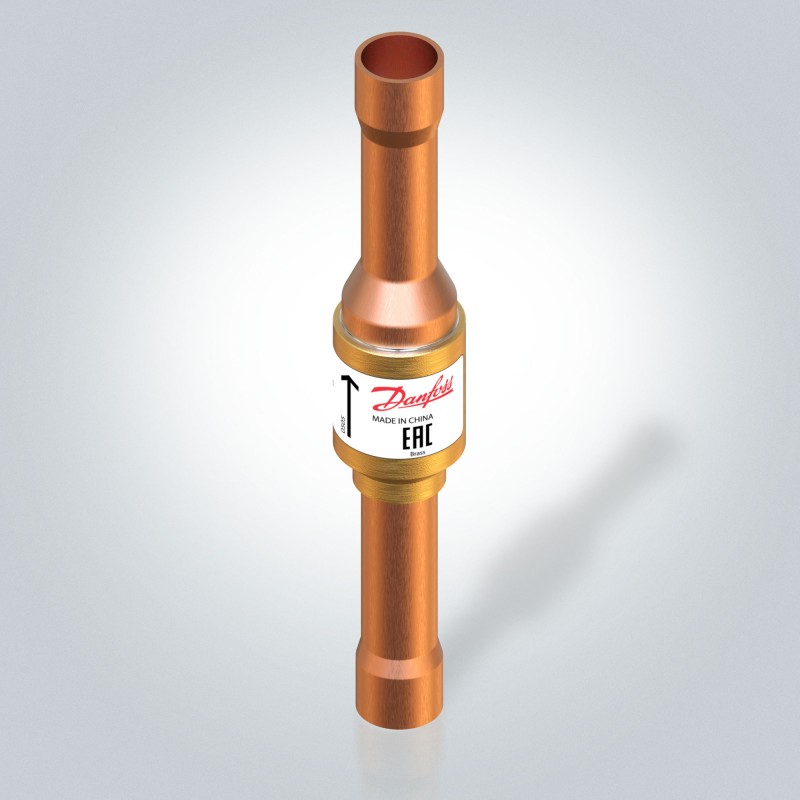

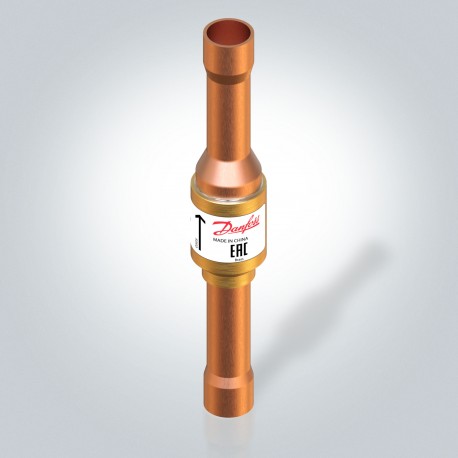

020B1132 DANFOSS REFRIGERATION NRD 12s Diff. Давление Reg. SW M/24X4
020B1132
DANFOSS REFRIGERATION
NRD 12s Diff. Давление Reg. SW M/24X4
Differential pressure valve, NRD 12s, Max. Working Pressure [bar]: 49.0
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Inlet connection type: SOLDER, ODF, Outlet connection type: SOLDER, ODF, Direction: Straightway, Packing format: Multi pack
Product details
| Gross weight | 0.11 kg |
| Net weight | 0.09 kg |
| EAN | 5702428571876 |
| Gross weight | 0.11 kg |
| Net weight | 0.09 kg |
| EAN | 5702428571876 |
| Approval | C UL US LISTED EAC |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 2.8 gal/min |
| Design | Piston |
| Direction | Straightway |
| EN13463-3 ignit. source assess | Yes |
| Flow direction | Single-flow |
| Flow direction indicator | On product label |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 1/2 in |
| Kv value [m³/h] | 2.42 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 710 psig |
| Min. Pressure drop [bar] | 1.4 bar |
| Min. Pressure drop [psi] | 20.3 psi |
| MinODP [bar] | 1.4 bar |
| MinODP [psi] | 20.3 psi |
| Oil free refrigerants | R1234ze(E) R134a R513A R515B R516A |
| Outlet connection type | SOLDER, ODF |
| Outlet size [in] | 1/2 in |
| Packing format | Multi pack |
| Product group | Check valves |
| Product name | Differential pressure valve |
| Quantity per packing format | 24 pc |
| Refrigerant oil compatibility | Oilfree applications R1234ze(E) R134a R513A R515B R516A |
| Refrigerants | R1233zd(E) R1234yf R1234ze(E) R1270 R134a R22/R407C R290 R32 R407A R407F R407H R410A R448A R449A R449B R450A R452A R452B R454B R454C R455A R513A R515B R516A R600 R600a R454A R404A/R507A |
| Temperature range [°C] [Max] | 155 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 311 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | NRD 12s |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL approved refrigerants | R1233zd(E) R134a R22 R404A R407A R407C R407F R407H R410A R448A R449A R449B R450A R452A R507A R513A R515B R516A |
| Approval | C UL US LISTED EAC |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 2.8 gal/min |
| Design | Piston |
| Direction | Straightway |
| EN13463-3 ignit. source assess | Yes |
| Flow direction | Single-flow |
| Flow direction indicator | On product label |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 1/2 in |
| Kv value [m³/h] | 2.42 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 710 psig |
| Min. Pressure drop [bar] | 1.4 bar |
| Min. Pressure drop [psi] | 20.3 psi |
| MinODP [bar] | 1.4 bar |
| MinODP [psi] | 20.3 psi |
| Oil free refrigerants | R1234ze(E) R134a R513A R515B R516A |
| Outlet connection type | SOLDER, ODF |
| Outlet size [in] | 1/2 in |
| Packing format | Multi pack |
| Product group | Check valves |
| Product name | Differential pressure valve |
| Quantity per packing format | 24 pc |
| Refrigerant oil compatibility | Oilfree applications R1234ze(E) R134a R513A R515B R516A |
| Refrigerants | R1233zd(E) R1234yf R1234ze(E) R1270 R134a R22/R407C R290 R32 R407A R407F R407H R410A R448A R449A R449B R450A R452A R452B R454B R454C R455A R513A R515B R516A R600 R600a R454A R404A/R507A |
| Temperature range [°C] [Max] | 155 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 311 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | NRD 12s |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL approved refrigerants | R1233zd(E) R134a R22 R404A R407A R407C R407F R407H R410A R448A R449A R449B R450A R452A R507A R513A R515B R516A |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
