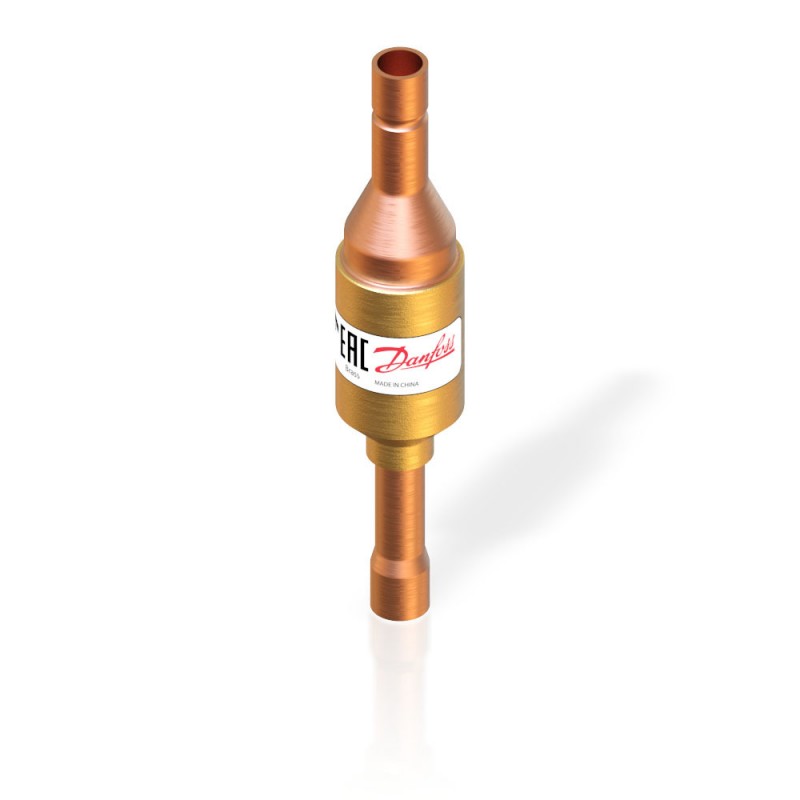

020B1057 DANFOSS REFRIGERATION NRV 6s Проверить Valve SW M/25×4
020B1057
DANFOSS REFRIGERATION
NRV 6s Проверить Valve SW M/25×4
Check valve, NRV 6s, Max. Working Pressure [bar]: 49.0
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Inlet connection type: SOLDER, ODF, Outlet connection type: SOLDER, ODF, Direction: Straightway, Packing format: Multi pack
Product details
| Gross weight | 0.07 kg |
| Net weight | 0.06 kg |
| EAN | 5702428571609 |
| Gross weight | 0.07 kg |
| Net weight | 0.06 kg |
| EAN | 5702428571609 |
| Approval | C UL US LISTED EAC |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 0.76 gal/min |
| Design | Piston |
| Direction | Straightway |
| EN13463-3 ignit. source assess | Yes |
| Flow direction | Single-flow |
| Flow direction indicator | On product label |
| Identical product | 020B1191 |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 3/8 in |
| Kv value [m³/h] | 0.66 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 710 psig |
| Min. Pressure drop [bar] | 0.07 bar |
| Min. Pressure drop [psi] | 1 psi |
| MinODP [bar] | 0.04 bar |
| MinODP [psi] | 0.58 psi |
| Oil free refrigerants | R1234ze(E) R134a R513A R515B R516A |
| Outlet connection type | SOLDER, ODF |
| Outlet size [in] | 3/8 in |
| Packing format | Multi pack |
| Product family name | NRV v2 |
| Product group | Check valves |
| Product name | Check valve |
| Quantity per packing format | 25 pc |
| Rated cap cond, Hot gas [IMP] | tcond=86 °F tdisc=176 °F tevap=14 °F thotgas=140 °F tsub=9 °F |
| Rated cap cond, Hot gas [SI] | tcond=30 °C tdisc=80 °C tevap=-10 °C thotgas=60 °C tsub=5K |
| Rated cap cond, Liq. cap [IMP] | tcond=86 °F tevap=14 °F tsub=9 °F |
| Rated cap cond, Liq. cap [SI] | tcond=30 °C tevap=-10 °C tsub=5K |
| Refrigerant oil compatibility | Oilfree applications R1234ze(E) R134a R513A R515B R516A |
| Refrigerants | R1233zd(E) R1234yf R1234ze(E) R1270 R134a R22/R407C R290 R32 R407A R407F R407H R410A R448A R449A R449B R450A R452A R452B R454B R454C R455A R513A R515B R516A R600 R600a R454A R404A/R507A |
| Temperature range [°C] [Max] | 155 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 311 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | NRV 6s |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL approved refrigerants | R1233zd(E) R134a R22 R404A R407A R407C R407F R407H R410A R448A R449A R449B R450A R452A R507A R513A R515B R516A |
| Approval | C UL US LISTED EAC |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 0.76 gal/min |
| Design | Piston |
| Direction | Straightway |
| EN13463-3 ignit. source assess | Yes |
| Flow direction | Single-flow |
| Flow direction indicator | On product label |
| Identical product | 020B1191 |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 3/8 in |
| Kv value [m³/h] | 0.66 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 710 psig |
| Min. Pressure drop [bar] | 0.07 bar |
| Min. Pressure drop [psi] | 1 psi |
| MinODP [bar] | 0.04 bar |
| MinODP [psi] | 0.58 psi |
| Oil free refrigerants | R1234ze(E) R134a R513A R515B R516A |
| Outlet connection type | SOLDER, ODF |
| Outlet size [in] | 3/8 in |
| Packing format | Multi pack |
| Product family name | NRV v2 |
| Product group | Check valves |
| Product name | Check valve |
| Quantity per packing format | 25 pc |
| Rated cap cond, Hot gas [IMP] | tcond=86 °F tdisc=176 °F tevap=14 °F thotgas=140 °F tsub=9 °F |
| Rated cap cond, Hot gas [SI] | tcond=30 °C tdisc=80 °C tevap=-10 °C thotgas=60 °C tsub=5K |
| Rated cap cond, Liq. cap [IMP] | tcond=86 °F tevap=14 °F tsub=9 °F |
| Rated cap cond, Liq. cap [SI] | tcond=30 °C tevap=-10 °C tsub=5K |
| Refrigerant oil compatibility | Oilfree applications R1234ze(E) R134a R513A R515B R516A |
| Refrigerants | R1233zd(E) R1234yf R1234ze(E) R1270 R134a R22/R407C R290 R32 R407A R407F R407H R410A R448A R449A R449B R450A R452A R452B R454B R454C R455A R513A R515B R516A R600 R600a R454A R404A/R507A |
| Temperature range [°C] [Max] | 155 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 311 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | NRV 6s |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL approved refrigerants | R1233zd(E) R134a R22 R404A R407A R407C R407F R407H R410A R448A R449A R449B R450A R452A R507A R513A R515B R516A |
