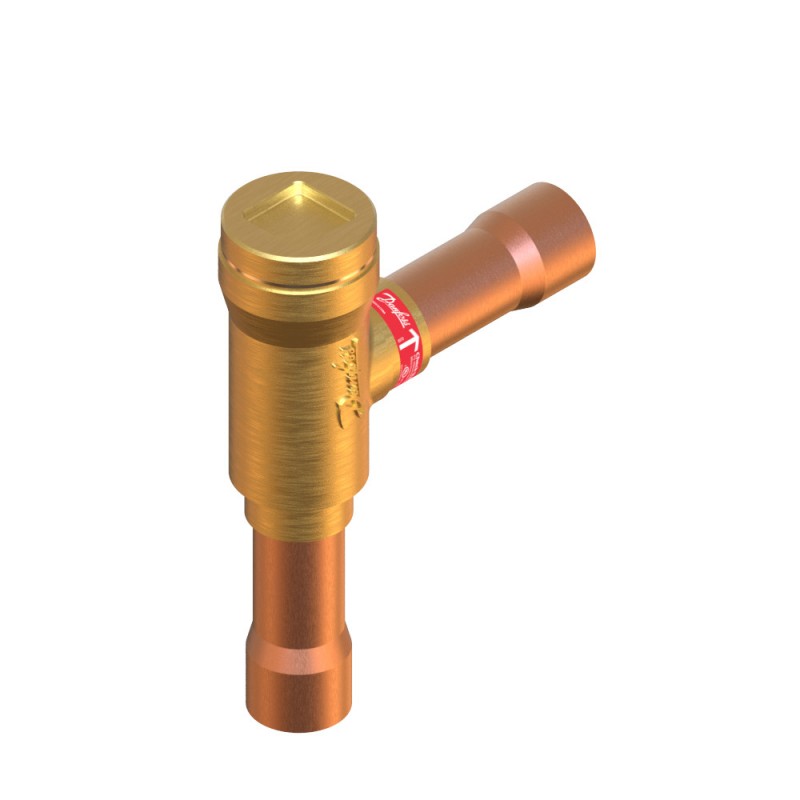

020-3020 DANFOSS REFRIGERATION NRV 22s E Проверить Valve AW M/18
020-3020
DANFOSS REFRIGERATION
NRV 22s E Проверить Valve AW M/18
Check valve, NRV 22s E, Max. Working Pressure [bar]: 49.0
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Inlet connection type: SOLDER, ODF, Inlet size [mm]: 22.00, Outlet connection type: SOLDER, ODF, Outlet size [mm]: 22.00, Direction: Angleway, Packing format: Multi pack
Product details
| Gross weight | 0.56 kg |
| Net weight | 0.51 kg |
| EAN | 5702428666763 |
| Gross weight | 0.56 kg |
| Net weight | 0.51 kg |
| EAN | 5702428666763 |
| Approval | EAC LLC CDC EURO-TYSK |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 9.83 gal/min |
| Design | Piston |
| Direction | Angleway |
| EN13463-3 ignit. source assess | Yes |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 7/8 in |
| Inlet size [mm] | 22 mm |
| Kv value [m³/h] | 8.5 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 710 psig |
| Min. Pressure drop [bar] | 0.04 bar |
| Min. Pressure drop [psi] | 0.6 psi |
| Oil free refrigerants | R516A |
| Outlet connection type | SOLDER, ODF |
| Outlet size [in] | 7/8 in |
| Outlet size [mm] | 22 mm |
| Packing format | Multi pack |
| Product family name | NRV E |
| Product group | Check valves |
| Product name | Check valve |
| Quantity per packing format | 18 pc |
| Rated cap cond, Hot gas [IMP] | tcond=86 °F tdisc=176 °F tevap=14 °F thotgas=140 °F tsub=9 °F |
| Rated cap cond, Hot gas [SI] | tcond=30 °C tdisc=80 °C tevap=-10 °C thotgas=60 °C tsub=5K |
| Rated cap cond, Liq. cap [IMP] | tcond=86 °F tevap=14 °F tsub=9 °F |
| Rated cap cond, Liq. cap [SI] | tcond=30 °C tevap=-10 °C tsub=5K |
| Refrigerant oil compatibility | Oilfree applications R516A |
| Refrigerants | R32 R452B R454B R454C R455A R516A R1234yf R1270 R290 R600 R600a R454A |
| Temperature range [°C] [Max] | 155 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 311 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | NRV 22s E |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL approved refrigerants | R516A |
| Approval | EAC LLC CDC EURO-TYSK |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 9.83 gal/min |
| Design | Piston |
| Direction | Angleway |
| EN13463-3 ignit. source assess | Yes |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 7/8 in |
| Inlet size [mm] | 22 mm |
| Kv value [m³/h] | 8.5 m³/h |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 49 bar |
| Max. Working Pressure [psig] | 710 psig |
| Min. Pressure drop [bar] | 0.04 bar |
| Min. Pressure drop [psi] | 0.6 psi |
| Oil free refrigerants | R516A |
| Outlet connection type | SOLDER, ODF |
| Outlet size [in] | 7/8 in |
| Outlet size [mm] | 22 mm |
| Packing format | Multi pack |
| Product family name | NRV E |
| Product group | Check valves |
| Product name | Check valve |
| Quantity per packing format | 18 pc |
| Rated cap cond, Hot gas [IMP] | tcond=86 °F tdisc=176 °F tevap=14 °F thotgas=140 °F tsub=9 °F |
| Rated cap cond, Hot gas [SI] | tcond=30 °C tdisc=80 °C tevap=-10 °C thotgas=60 °C tsub=5K |
| Rated cap cond, Liq. cap [IMP] | tcond=86 °F tevap=14 °F tsub=9 °F |
| Rated cap cond, Liq. cap [SI] | tcond=30 °C tevap=-10 °C tsub=5K |
| Refrigerant oil compatibility | Oilfree applications R516A |
| Refrigerants | R32 R452B R454B R454C R455A R516A R1234yf R1270 R290 R600 R600a R454A |
| Temperature range [°C] [Max] | 155 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 311 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | NRV 22s E |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL approved refrigerants | R516A |
