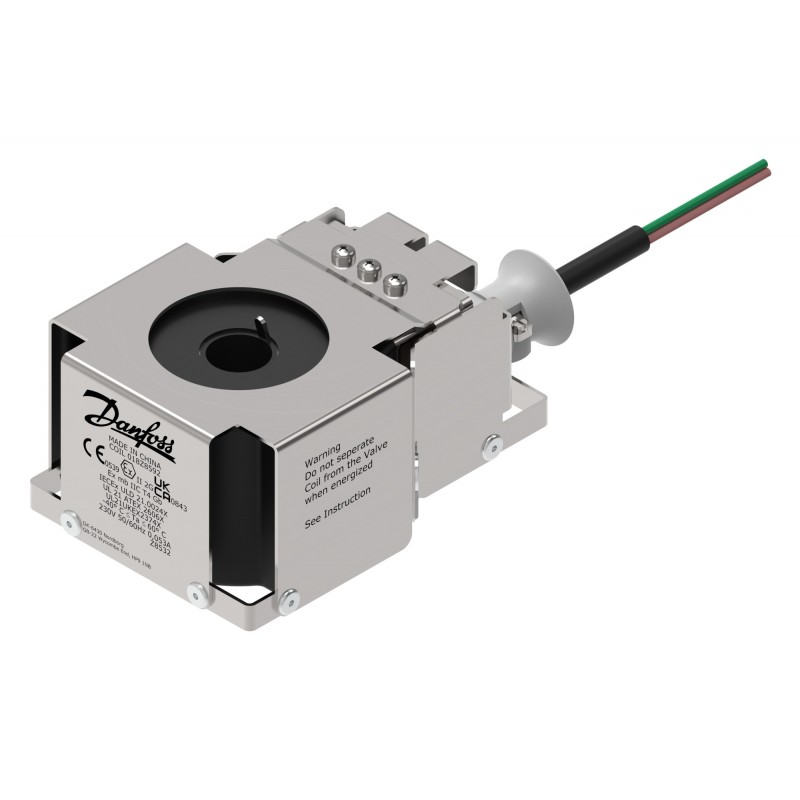

DANFOSS REFRIGERATION 018Z8596 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

018Z8596 DANFOSS REFRIGERATION Solenoid coil, BI024D, Cable, Multi pack

Name: 018Z8596 DANFOSS REFRIGERATION Solenoid coil, BI024D, Cable, Multi pack
Brand: DANFOSS REFRIGERATION
SKU: DAO018Z8596
Price: 370.77 USD
Availability: OutOfStock

Code: 018Z8596

Manufacturer: DANFOSS REFRIGERATION

Description:

Solenoid coil, BI024D, Cable, Multi pack

Coil BI024D 24V DC 5m Cable ATEX F

Solenoid coil, BI024D, Cable, Supply voltage [V] DC: 24, Multi pack

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 315,39 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Electrical connection: Cable, Supply voltage [V] DC: 24, Enclosure rating IP: IP67

Product details

Gross weight	1.176 Kilogram
Net weight	1.095 Kilogram
Volume	2.056 Liter
EAN	5702424618568

Type	BI024D
Product group	Solenoid valves
Product Name Description	Solenoid coil

Gross weight	1.176 Kilogram
Net weight	1.095 Kilogram
Volume	2.056 Liter
EAN	5702424618568
Type	BI024D
Product group	Solenoid valves
Product Name Description	Solenoid coil

Actuator size	13.5 mm
Ambient temperature range [°C] [max]	40 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	104 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	ATEX - Cat. 2 - Zone 1
Cable length [in]	196 in
Cable length [m]	5 m
China RoHS compliance	Out of scope
China RoHS exemption clause	No
Coil connection	Cable
Coil fastening	Finger screw
Coil winding insulation class	Class H to IEC 85
Colour	Black
Conductor area [mm2]	3 x 0.75 mm2
Contains batteries	No
Duty rating	Continuous
Earth connection	Ext. Terminal Green/yellow wire
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical conn. comments	Earth conn. wiring > 4 mm2

Electrical connection	Cable
Electrical connector	3 core cable
Enclosure rating IP	IP67
Enclosure rating Nema (~)	6
EU RoHS compliance	Yes
EU RoHS exemption clause	No
EX Sales text	-40C<ta<+40C DEMKO 01 ATEX127938X Ex mb IIC T4 Gb IECEx ULD 21.0024X UL 21 ATEX 2606X UL21UKEX2374X
In scope of WEEE	Yes
Packing format	Multi pack
Parts included	IP67 seal kit
Parts Program name	AKV10P/PS AKV15 AKV20 AKVA EV210B 1,5 - 25 EV210BW 1,5 - 25 EV220B 6 - 100 EV220BW 15 -50 EV221BW 6 - 22 EV222B 15 - 50 EV250B 6 - 22 EV250BW 6 - 22 EV251B 10 - 22 EVM EVM NO and NC EVR NC 2 - 40 EVR NO 3 - 40 EVRA(T) 3 - 40 EVRB EVRF EVRP EVRS(T) 3 - 20 ICF 15-65 VDH 2 - 120 VDHT xx VPH 15
Power consumption [W] DC	12 W
Product accessories	Solenoid coil accessories
Quantity per packing format	10 pc
REACH Candidate List substances	No
Rel. Humidity [% RH] [max]	97 %
Rel. Humidity [% RH] [min]	0 %
Serviceable	No
Supply voltage [V] DC	24 V
Type designation	BI024D

Actuator size	13.5 mm
Ambient temperature range [°C] [max]	40 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	104 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	ATEX - Cat. 2 - Zone 1
Cable length [in]	196 in
Cable length [m]	5 m
China RoHS compliance	Out of scope
China RoHS exemption clause	No
Coil connection	Cable
Coil fastening	Finger screw
Coil winding insulation class	Class H to IEC 85
Colour	Black
Conductor area [mm2]	3 x 0.75 mm2
Contains batteries	No
Duty rating	Continuous
Earth connection	Ext. Terminal Green/yellow wire
EEE category	5 small equipment (any external dimension < 50 cm)
Electrical conn. comments	Earth conn. wiring > 4 mm2
Electrical connection	Cable
Electrical connector	3 core cable
Enclosure rating IP	IP67
Enclosure rating Nema (~)	6
EU RoHS compliance	Yes
EU RoHS exemption clause	No
EX Sales text	-40C<ta<+40C DEMKO 01 ATEX127938X Ex mb IIC T4 Gb IECEx ULD 21.0024X UL 21 ATEX 2606X UL21UKEX2374X
In scope of WEEE	Yes
Packing format	Multi pack
Parts included	IP67 seal kit
Parts Program name	AKV10P/PS AKV15 AKV20 AKVA EV210B 1,5 - 25 EV210BW 1,5 - 25 EV220B 6 - 100 EV220BW 15 -50 EV221BW 6 - 22 EV222B 15 - 50 EV250B 6 - 22 EV250BW 6 - 22 EV251B 10 - 22 EVM EVM NO and NC EVR NC 2 - 40 EVR NO 3 - 40 EVRA(T) 3 - 40 EVRB EVRF EVRP EVRS(T) 3 - 20 ICF 15-65 VDH 2 - 120 VDHT xx VPH 15
Power consumption [W] DC	12 W
Product accessories	Solenoid coil accessories
Quantity per packing format	10 pc
REACH Candidate List substances	No
Rel. Humidity [% RH] [max]	97 %
Rel. Humidity [% RH] [min]	0 %
Serviceable	No
Supply voltage [V] DC	24 V
Type designation	BI024D

DATASHEET - PDF

Title

Size

Type

018Z8596 ES_018Z8596.pdf

537 Kbytes

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
