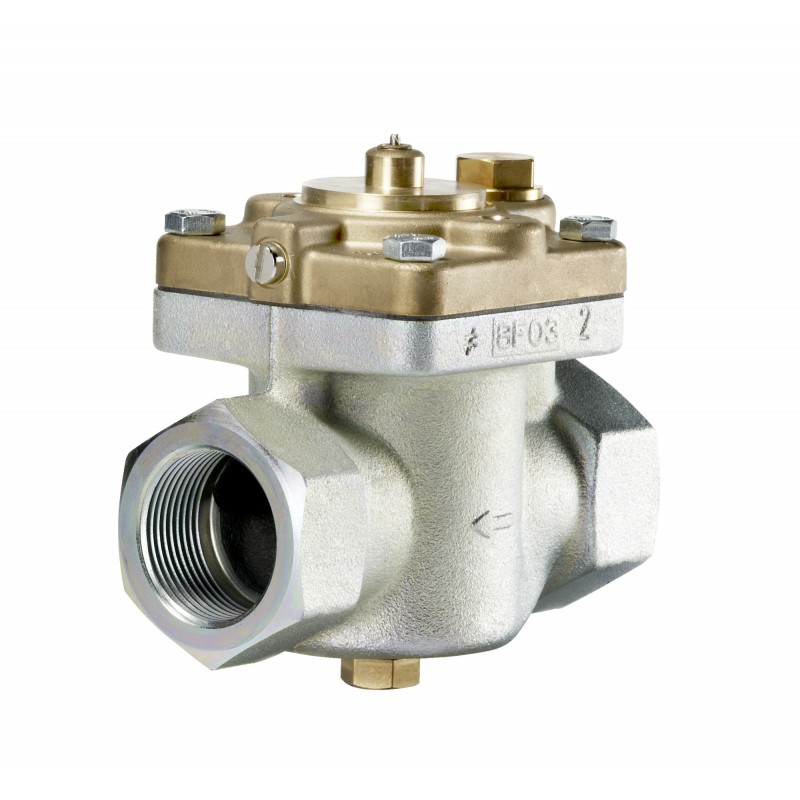

WVTS 32 016D5032 DANFOSS REFRIGERATION Исследования wvs/WVTS 32 воды рег. клапан G 1 1/4 М/4
WVTS 32
016D5032
DANFOSS REFRIGERATION
Исследования wvs/WVTS 32 воды рег. клапан G 1 1/4 М/4
WVS/WVTS 32 Водяной реграмотный клапан G 1 1/4 M/4
Valve body for water reg.valve, 1 1/4
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Connection type: G, Kv value [m³/h]: 12.500
Product details
| Gross weight | 3.77 kg |
| Net weight | 3.68 kg |
| EAN | 5702422042334 |
| Gross weight | 3.77 kg |
| Net weight | 3.68 kg |
| EAN | 5702422042334 |
| Approval | EAC LLC CDC TYSK PED RoHS RoHS China |
| Body material | Cast iron |
| Connection Internal/External | Internal |
| Connection size [in] | 1 1/4 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Differential pressure [bar] [Max] | 4 bar |
| Differential pressure [bar] [Min] | 0.5 bar |
| Differential pressure [psi] [Max] | 58 psi |
| Differential pressure [psi] [Min] | 7.2 psi |
| Equipment | |
| Kv value [m³/h] | 12.5 m³/h |
| Max. test pressure [bar] Pe | 16 bar |
| Max. test pressure [psig] | 232 psig |
| Max. Working Pressure [bar] | 10 bar |
| Max. Working Pressure [psig] | 145 psig |
| Media | Neutral media |
| Medium temperature range [°C] [Max] | 90 °C |
| Medium temperature range [°C] [Min] | -25 °C |
| Medium temperature range [°F] [Max] | 194 °F |
| Medium temperature range [°F] [Min] | -13 °F |
| Orifice size [mm] | 32 mm |
| Orifice size fraction [in] | 1 1/4 in |
| Packing format | Multi pack |
| Parts included | Flange bolts Flange gaskets Screws for pilot valve Valve body |
| Parts Program name | WVS WVTS |
| Product accessories | Generic accessories |
| Product family name | WVS |
| Product group | Water regulating valves |
| Product name | Valve body for water reg.valve |
| Quantity per packing format | 4 pc |
| Serviceable | Water valve spare parts |
| Type | Valve housing |
| Used for product | WVS 32 WVTS 32 |
| Approval | EAC LLC CDC TYSK PED RoHS RoHS China |
| Body material | Cast iron |
| Connection Internal/External | Internal |
| Connection size [in] | 1 1/4 |
| Connection standard | ISO 228-1 |
| Connection type | G |
| Differential pressure [bar] [Max] | 4 bar |
| Differential pressure [bar] [Min] | 0.5 bar |
| Differential pressure [psi] [Max] | 58 psi |
| Differential pressure [psi] [Min] | 7.2 psi |
| Equipment | |
| Kv value [m³/h] | 12.5 m³/h |
| Max. test pressure [bar] Pe | 16 bar |
| Max. test pressure [psig] | 232 psig |
| Max. Working Pressure [bar] | 10 bar |
| Max. Working Pressure [psig] | 145 psig |
| Media | Neutral media |
| Medium temperature range [°C] [Max] | 90 °C |
| Medium temperature range [°C] [Min] | -25 °C |
| Medium temperature range [°F] [Max] | 194 °F |
| Medium temperature range [°F] [Min] | -13 °F |
| Orifice size [mm] | 32 mm |
| Orifice size fraction [in] | 1 1/4 in |
| Packing format | Multi pack |
| Parts included | Flange bolts Flange gaskets Screws for pilot valve Valve body |
| Parts Program name | WVS WVTS |
| Product accessories | Generic accessories |
| Product family name | WVS |
| Product group | Water regulating valves |
| Product name | Valve body for water reg.valve |
| Quantity per packing format | 4 pc |
| Serviceable | Water valve spare parts |
| Type | Valve housing |
| Used for product | WVS 32 WVTS 32 |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
