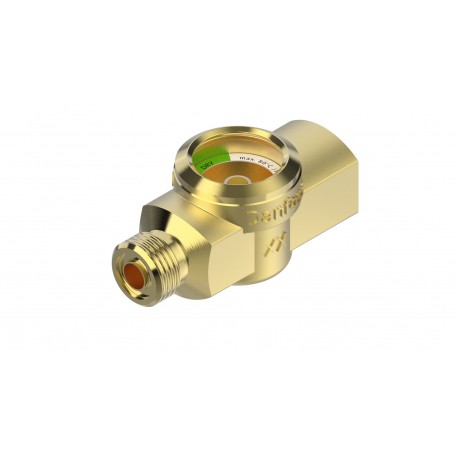

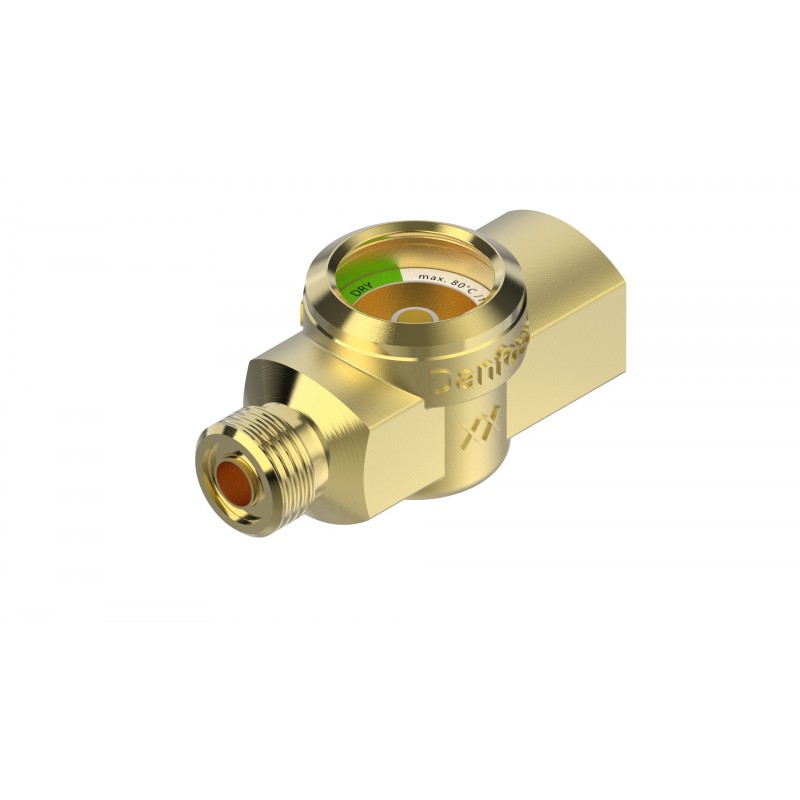

014L0091 DANFOSS REFRIGERATION SGP 10 I Sight Glass FS M/24x3
014L0091
DANFOSS REFRIGERATION
SGP 10 I Sight Glass FS M/24x3
Sight glass, SGP 10 I, FACE SEAL
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Inlet connection type: FACE SEAL, Inlet size [in]: 3/8 in, Outlet connection type: FACE SEAL, Moisture indicator: I indicator, Inlet Internal/External: Internal
Product details
| Gross weight | 0.24 kg |
| Net weight | 0.18 kg |
| EAN | 5702428840309 |
| Gross weight | 0.24 kg |
| Net weight | 0.18 kg |
| EAN | 5702428840309 |
| Approval | C UL US LISTED EAC |
| Approval file name | REF. LIQUID INDICATOR 76H4 |
| Body material | Brass |
| Connection material | Brass |
| Green: max moist con@25 °C | R22: 150 ppm |
| Green: max moist con@43 °C | R22: 250 ppm |
| Identical product | 014L1011 |
| Inlet connection type | FACE SEAL |
| Inlet Internal/External | Internal |
| Inlet size [in] | 3/8 in |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Moisture indicator | I indicator |
| Outlet connection type | FACE SEAL |
| Outlet Internal/External | External |
| Outlet size [in] | 3/8 in |
| Packing format | Multi pack |
| Product accessories | No |
| Product family name | SG |
| Product group | Sight glasses |
| Product name | Sight glass |
| Quantity per packing format | 24 pc |
| Refrigerants | R22 |
| Serviceable | No |
| Temperature range [°C] [Max] | 80 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 175 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | SGP 10 I |
| UL approval file name | REF. LIQUID INDICATOR 76H4 |
| UL approved refrigerants | R22 |
| Yellow: min moist con@25 °C | R22: 300 ppm |
| Yellow: min moist con@43 °C | R22: 500 ppm |
| Approval | C UL US LISTED EAC |
| Approval file name | REF. LIQUID INDICATOR 76H4 |
| Body material | Brass |
| Connection material | Brass |
| Green: max moist con@25 °C | R22: 150 ppm |
| Green: max moist con@43 °C | R22: 250 ppm |
| Identical product | 014L1011 |
| Inlet connection type | FACE SEAL |
| Inlet Internal/External | Internal |
| Inlet size [in] | 3/8 in |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Moisture indicator | I indicator |
| Outlet connection type | FACE SEAL |
| Outlet Internal/External | External |
| Outlet size [in] | 3/8 in |
| Packing format | Multi pack |
| Product accessories | No |
| Product family name | SG |
| Product group | Sight glasses |
| Product name | Sight glass |
| Quantity per packing format | 24 pc |
| Refrigerants | R22 |
| Serviceable | No |
| Temperature range [°C] [Max] | 80 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 175 °F |
| Temperature range [°F] [Min] | -58 °F |
| Type | SGP 10 I |
| UL approval file name | REF. LIQUID INDICATOR 76H4 |
| UL approved refrigerants | R22 |
| Yellow: min moist con@25 °C | R22: 300 ppm |
| Yellow: min moist con@43 °C | R22: 500 ppm |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
