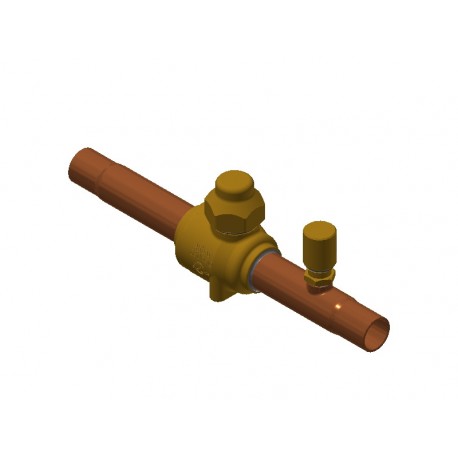

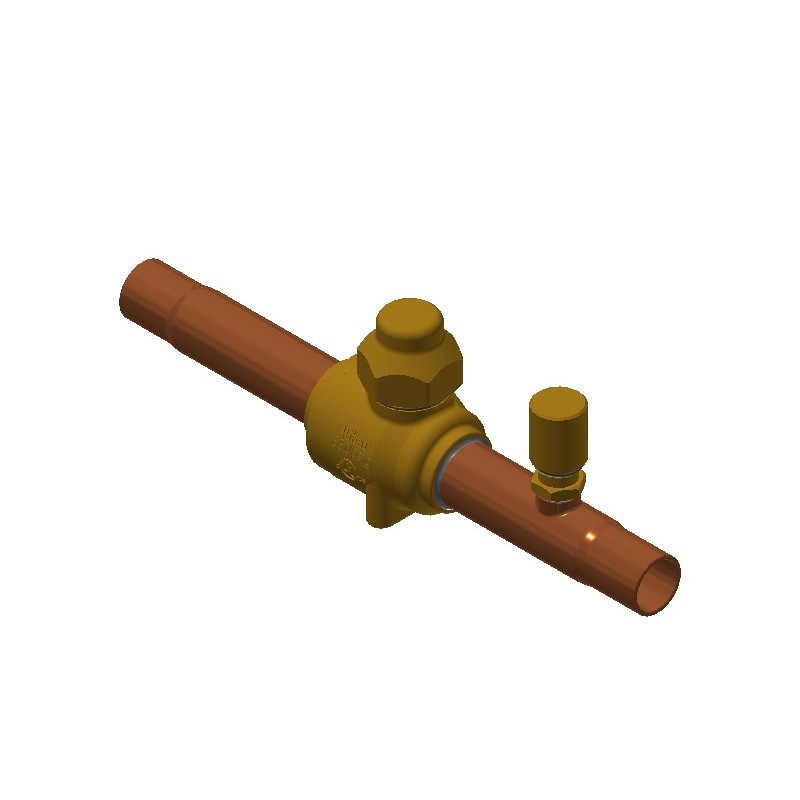

009L7557 DANFOSS REFRIGERATION GBC 12s CO2 45bar BallValve с AP M/25
009L7557
DANFOSS REFRIGERATION
GBC 12s CO2 45bar BallValve с AP M/25
Shut-off ball valve, GBC 12s
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Inlet connection type: SOLDER, ODF, Outlet connection type: SOLDER, ODF, Inlet size [in]: 1/2 in, Outlet size [in]: 1/2 in
Product details
| Gross weight | 0.3 kg |
| Net weight | 0.2 kg |
| EAN | 5702428515177 |
| Gross weight | 0.3 kg |
| Net weight | 0.2 kg |
| EAN | 5702428515177 |
| Access port | YES |
| Approval | CE UL UKCA |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 14.94 gal/min |
| Direction | Straightway |
| Equipment | Cap w. wire seal |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 1/2 in |
| Kv value [m³/h] | 12.92 m³/h |
| Max. test pressure [bar] | 65 bar |
| Max. test pressure [psig] | 940 psig |
| Max. Working Pressure [bar] | 45 bar |
| Max. Working Pressure [psig] | 650 psig |
| Outlet connection type | SOLDER, ODF |
| Outlet size [in] | 1/2 in |
| Packing format | Multi pack |
| Parts included | Schrader valve |
| Product accessories | BM/GBC valve accessories |
| Product description | Ball Valve |
| Product family name | GBC 45 v2 |
| Product group | Shut-off and regulating valves |
| Product name | Shut-off ball valve |
| Quantity per packing format | 25 pc |
| Refrigerants | R744 |
| Serviceable | BM/GBC valve spare parts |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 300 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | GBC 12s |
| UL approved refrigerants | R744 |
| Access port | YES |
| Approval | CE UL UKCA |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 14.94 gal/min |
| Direction | Straightway |
| Equipment | Cap w. wire seal |
| Flow direction | Single-flow |
| Flow direction indicator | Embossed 1-way arrow |
| Inlet connection type | SOLDER, ODF |
| Inlet size [in] | 1/2 in |
| Kv value [m³/h] | 12.92 m³/h |
| Max. test pressure [bar] | 65 bar |
| Max. test pressure [psig] | 940 psig |
| Max. Working Pressure [bar] | 45 bar |
| Max. Working Pressure [psig] | 650 psig |
| Outlet connection type | SOLDER, ODF |
| Outlet size [in] | 1/2 in |
| Packing format | Multi pack |
| Parts included | Schrader valve |
| Product accessories | BM/GBC valve accessories |
| Product description | Ball Valve |
| Product family name | GBC 45 v2 |
| Product group | Shut-off and regulating valves |
| Product name | Shut-off ball valve |
| Quantity per packing format | 25 pc |
| Refrigerants | R744 |
| Serviceable | BM/GBC valve spare parts |
| Temperature range [°C] [Max] | 150 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 300 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | GBC 12s |
| UL approved refrigerants | R744 |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
