009L7396 DANFOSS REFRIGERATION ГКП 10С ч
009L7396
DANFOSS REFRIGERATION
ГКП 10С ч

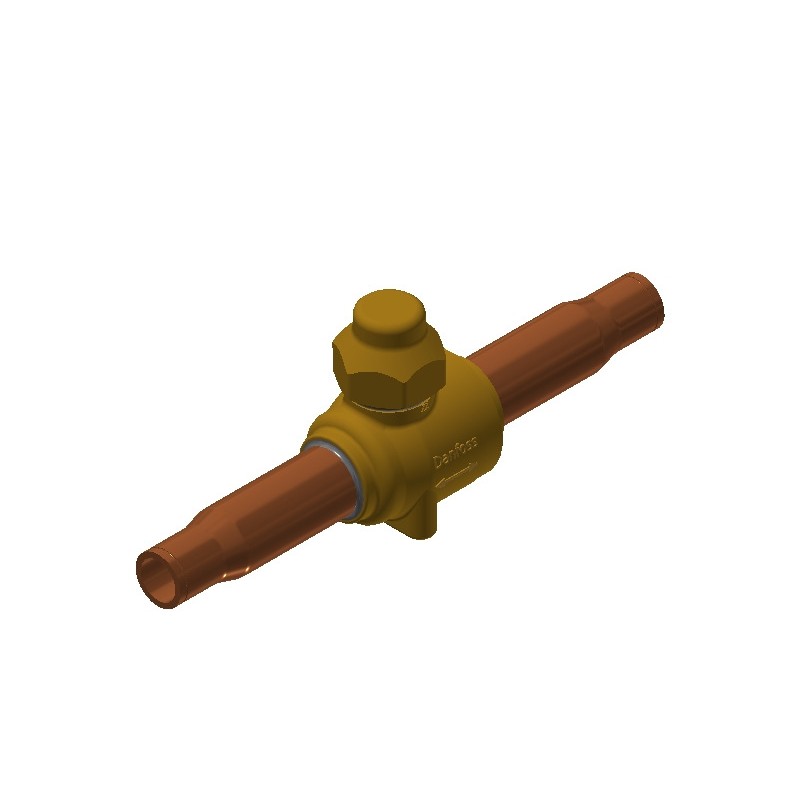

GBCH 10s CO2 90bar Ball Valve M/25
Shut-off ball valve, GBCH 10s
Home > DANFOSS REFRIGERATION
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS REFRIGERATION
Best sellers
▲Описание
▲Inlet connection type: SOLDER, ODF, Outlet connection type: SOLDER, ODF, Inlet size [mm]: 10.00, Outlet size [mm]: 10.00
Product details
| Gross weight | 0.3 kg |
| Net weight | 0.23 kg |
| EAN | 5702428515443 |
| Gross weight | 0.3 kg |
| Net weight | 0.23 kg |
| EAN | 5702428515443 |
| Access port | NO |
| Approval | CE |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 7.29 gal/min |
| Direction | Straightway |
| Equipment | Cap w. wire seal (EN 378 comp) |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 2-way arrow |
| Inlet connection type | SOLDER, ODF |
| Inlet size [mm] | 10 mm |
| Kv value [m³/h] | 6.31 m³/h |
| Max. test pressure [bar] | 100 bar |
| Max. test pressure [psig] | 1450 psig |
| Max. Working Pressure [bar] | 90 bar |
| Max. Working Pressure [psig] | 1305 psig |
| Outlet connection type | SOLDER, ODF |
| Outlet size [mm] | 10 mm |
| Packing format | Multi pack |
| Panel mounting option | M4 × 0.7 (2 PC) |
| Product accessories | BM/GBC valve accessories |
| Product description | Ball Valve |
| Product family name | GBCH v2 |
| Product group | Shut-off and regulating valves |
| Product name | Shut-off ball valve |
| Quantity per packing format | 25 pc |
| Refrigerants | R744 |
| Serviceable | BM/GBC valve spare parts |
| Temperature range [°C] [Max] | 100 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 212 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | GBCH 10s |
| Access port | NO |
| Approval | CE |
| Body material | Brass |
| Connection material | Copper |
| Cv value [gal/min] | 7.29 gal/min |
| Direction | Straightway |
| Equipment | Cap w. wire seal (EN 378 comp) |
| Flow direction | Bi-flow |
| Flow direction indicator | Embossed 2-way arrow |
| Inlet connection type | SOLDER, ODF |
| Inlet size [mm] | 10 mm |
| Kv value [m³/h] | 6.31 m³/h |
| Max. test pressure [bar] | 100 bar |
| Max. test pressure [psig] | 1450 psig |
| Max. Working Pressure [bar] | 90 bar |
| Max. Working Pressure [psig] | 1305 psig |
| Outlet connection type | SOLDER, ODF |
| Outlet size [mm] | 10 mm |
| Packing format | Multi pack |
| Panel mounting option | M4 × 0.7 (2 PC) |
| Product accessories | BM/GBC valve accessories |
| Product description | Ball Valve |
| Product family name | GBCH v2 |
| Product group | Shut-off and regulating valves |
| Product name | Shut-off ball valve |
| Quantity per packing format | 25 pc |
| Refrigerants | R744 |
| Serviceable | BM/GBC valve spare parts |
| Temperature range [°C] [Max] | 100 °C |
| Temperature range [°C] [Min] | -40 °C |
| Temperature range [°F] [Max] | 212 °F |
| Temperature range [°F] [Min] | -40 °F |
| Type | GBCH 10s |
Datasheet - PDF
