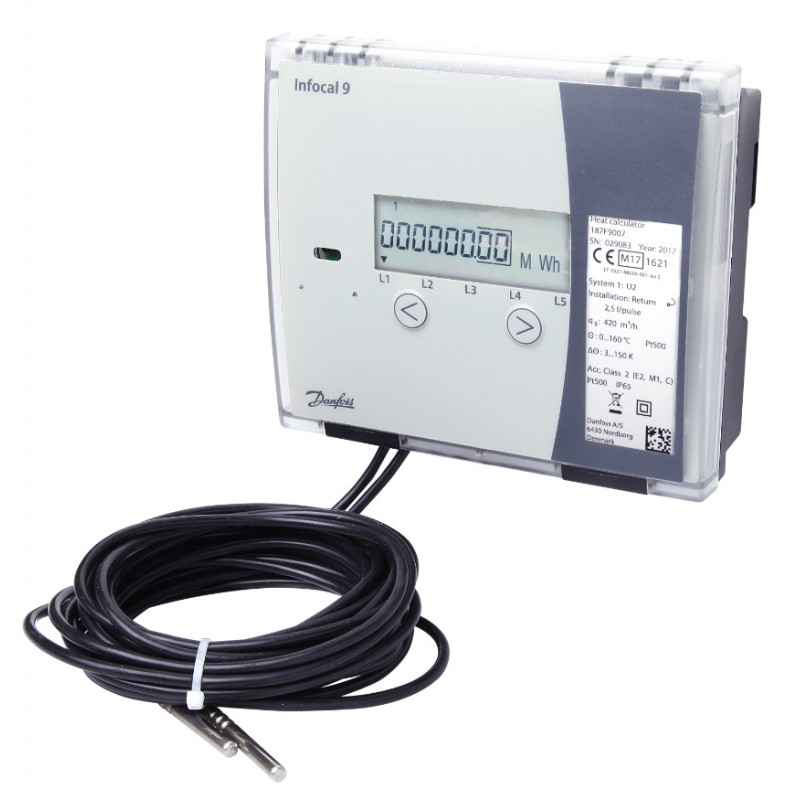

187F9002 DANFOSS HEATING INF9 DN80-100 qp40-60 R 3,6 В M-шина
187F9002
DANFOSS HEATING
INF9 DN80-100 qp40-60 R 3,6 В M-шина
Energy meters, Infocal 9, 80 mm - 100 mm, qp [m³/h]: 40.0 - 60.0, Heating and cooling, battery D-cell, M-bus module
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Energy calculator
Product details
| Gross weight | 0.843 Kg |
| Net weight | 0.8 Kg |
| Volume | 3.634 Liter |
| EAN | 5702428985697 |
| Gross weight | 0.843 Kg |
| Net weight | 0.8 Kg |
| Volume | 3.634 Liter |
| EAN | 5702428985697 |
| 1 Primary battery SUM weight Kg | 0.05 |
| 1 Primary battery weight Kg | 0.05 |
| Accuracy standard | Class 2 to EN1434 |
| Ambient class | E2/M1 |
| Ambient humidity [% RH] [Max] | 93 % |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 5 °C |
| Application | Heating and cooling |
| Approval authority | MID |
| Battery lifetime [Years] | 12 yr |
| Battery qty | 1 |
| Battery type or Name | D Lithium |
| Description | Energy calculator |
| Diameter [mm] [Max] | 100 mm |
| Diameter [mm] [Min] | 80 mm |
| Display type | LCD |
| Energy unit | MWh |
| For flow meter | SONO1500 CT |
| In scope of WEEE and contain batteries | Yes |
| Installation | Return |
| Integrated communication | 2 pulse input |
| Interface module slot 1 | M-bus module |
| IP protection class | IP65 |
| Label product | Yes |
| Log storage duration [Month] | 36 mo |
| Media temperature [°C] [Max] | 160 °C |
| Media temperature [°C] [Min] | 0 °C |
| Product group | Energy meters |
| Pulse value volume [l/pulse] | 100 l/pulse |
| qp [m³/h] [Max] | 60 m³/h |
| qp [m³/h] [Min] | 40 m³/h |
| REACH Candidate List substances | No |
| Supply voltage [V] DC | 3.6 V |
| Supply voltage type | battery D-cell |
| Temperature sensor diameter [mm] | 5.2 mm |
| Temperature sensor length [mm] | 3 mm |
| Temperature sensors type | Pt 500 |
| Type | Infocal 9 |
| Weight per battery | 50 g |
| 1 Primary battery SUM weight Kg | 0.05 |
| 1 Primary battery weight Kg | 0.05 |
| Accuracy standard | Class 2 to EN1434 |
| Ambient class | E2/M1 |
| Ambient humidity [% RH] [Max] | 93 % |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 5 °C |
| Application | Heating and cooling |
| Approval authority | MID |
| Battery lifetime [Years] | 12 yr |
| Battery qty | 1 |
| Battery type or Name | D Lithium |
| Description | Energy calculator |
| Diameter [mm] [Max] | 100 mm |
| Diameter [mm] [Min] | 80 mm |
| Display type | LCD |
| Energy unit | MWh |
| For flow meter | SONO1500 CT |
| In scope of WEEE and contain batteries | Yes |
| Installation | Return |
| Integrated communication | 2 pulse input |
| Interface module slot 1 | M-bus module |
| IP protection class | IP65 |
| Label product | Yes |
| Log storage duration [Month] | 36 mo |
| Media temperature [°C] [Max] | 160 °C |
| Media temperature [°C] [Min] | 0 °C |
| Product group | Energy meters |
| Pulse value volume [l/pulse] | 100 l/pulse |
| qp [m³/h] [Max] | 60 m³/h |
| qp [m³/h] [Min] | 40 m³/h |
| REACH Candidate List substances | No |
| Supply voltage [V] DC | 3.6 V |
| Supply voltage type | battery D-cell |
| Temperature sensor diameter [mm] | 5.2 mm |
| Temperature sensor length [mm] | 3 mm |
| Temperature sensors type | Pt 500 |
| Type | Infocal 9 |
| Weight per battery | 50 g |
Datasheet - PDF
