Product:MTZ18-4VM DANFOSS REFRIGERATION Reciproc...

Images are for illustrative purposes only. Please refer to data sheet for details.
Reference: 187F3533
Manufacturer: DANFOSS HEATING
Description:
Categories:
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
LAST VIEWED

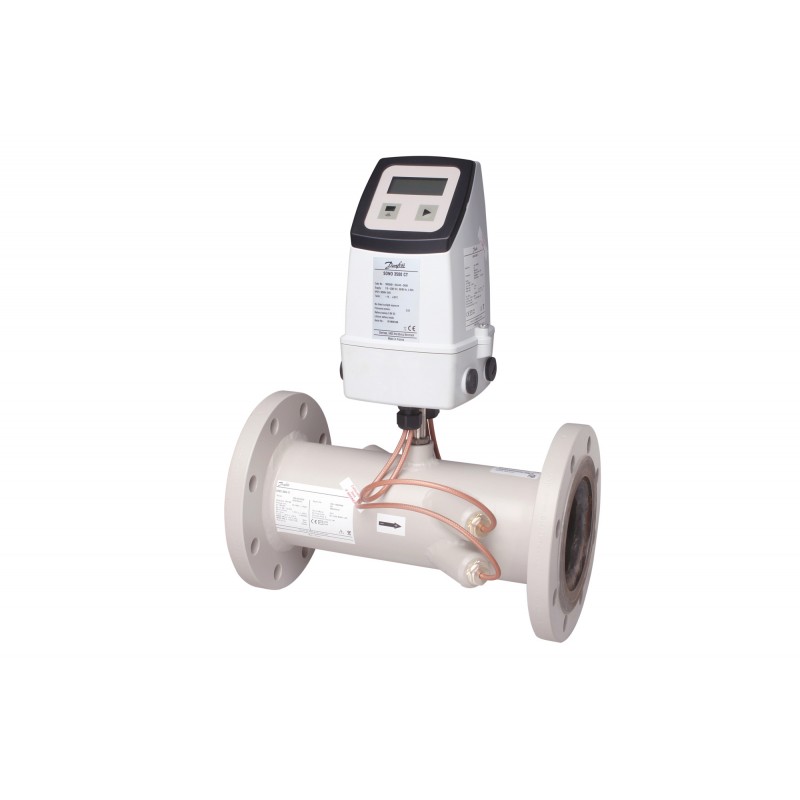

Flow meter for utility applications
| Gross weight | 53.25 Kilogram |
| Net weight | 39.5 Kilogram |
| Volume | 296.752 Liter |
| EAN | 5702428979924 |
| Type | SONO 3500CT |
| Product group | Energy meters |
| Gross weight | 53.25 Kilogram |
| Net weight | 39.5 Kilogram |
| Volume | 296.752 Liter |
| EAN | 5702428979924 |
| Type | SONO 3500CT |
| Product group | Energy meters |
| 1 Primary battery SUM weight Kg | 0.09 |
| 1 Primary battery weight Kg | 0.09 |
| Accuracy standard | Class 2 to EN1434 |
| Ambient class | E2/M1 |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | -10 °C |
| Application | Heating and cooling |
| Approval authority | MID |
| Battery lifetime [Years] | 6 yr |
| Battery qty | 1 |
| Battery type or Name | D-celle Lithium thionyl chloride (ER36415) |
| China RoHS compliance | Out of scope |
| Connection types | Flange / Compact version |
| Contains batteries | Yes |
| Description | Flow meter for utility applications |
| Diameter [mm] | 200 mm |
| Display type | LCD |
| Dynamic range | 1:100 |
| EEE category | 4 large equipment (any external dimension > 50 cm) |
| EU RoHS compliance | Out of scope |
| Flow measuring principle | Ultrasonic |
| In scope of WEEE | Yes |
| Integrated communication | 2 pulse output |
| Label product | Yes |
| Media | Heating system according to VDI 2035 |
| Other RoHS documentation | Saudi Arabia RoHS |
| Pressure nominal [bar] | 16 bar |
| Protection Class of the Coating | IP67 |
| Pulse value volume [l/pulse] | 10 l/pulse |
| qp [m³/h] | 500 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 155f7e3d-d81c-401e-8415-4dd37eea4c16 |
| SCIP dossier product name | SONO 3500 CT Qp 100-500 |
| Storage temperature [°C] [Max] | 85 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 115 V |
| Supply voltage type | mains unit |
| Weight per battery | 6 g |
| 1 Primary battery SUM weight Kg | 0.09 |
| 1 Primary battery weight Kg | 0.09 |
| Accuracy standard | Class 2 to EN1434 |
| Ambient class | E2/M1 |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | -10 °C |
| Application | Heating and cooling |
| Approval authority | MID |
| Battery lifetime [Years] | 6 yr |
| Battery qty | 1 |
| Battery type or Name | D-celle Lithium thionyl chloride (ER36415) |
| China RoHS compliance | Out of scope |
| Connection types | Flange / Compact version |
| Contains batteries | Yes |
| Description | Flow meter for utility applications |
| Diameter [mm] | 200 mm |
| Display type | LCD |
| Dynamic range | 1:100 |
| EEE category | 4 large equipment (any external dimension > 50 cm) |
| EU RoHS compliance | Out of scope |
| Flow measuring principle | Ultrasonic |
| In scope of WEEE | Yes |
| Integrated communication | 2 pulse output |
| Label product | Yes |
| Media | Heating system according to VDI 2035 |
| Other RoHS documentation | Saudi Arabia RoHS |
| Pressure nominal [bar] | 16 bar |
| Protection Class of the Coating | IP67 |
| Pulse value volume [l/pulse] | 10 l/pulse |
| qp [m³/h] | 500 m³/h |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 155f7e3d-d81c-401e-8415-4dd37eea4c16 |
| SCIP dossier product name | SONO 3500 CT Qp 100-500 |
| Storage temperature [°C] [Max] | 85 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 115 V |
| Supply voltage type | mains unit |
| Weight per battery | 6 g |
