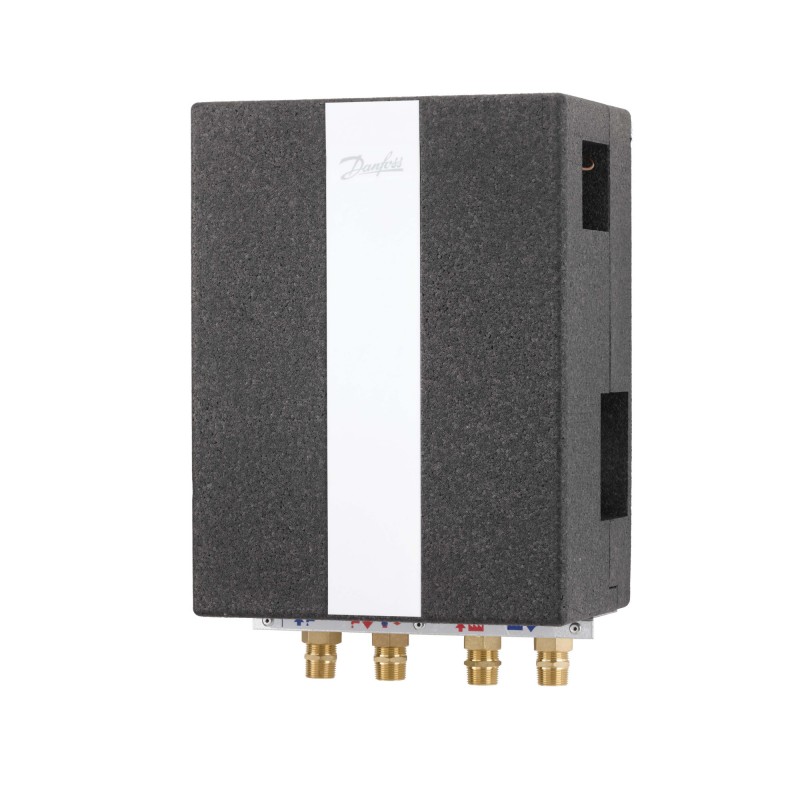

145G0092 DANFOSS HEATING Аква Люкс II тип 2
145G0092
DANFOSS HEATING
Аква Люкс II тип 2
Akva Lux II, Type 2, 16 bar, 110 °C, DHW controller name: PTC2 + P
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Akva Lux II Type 2, (XB06H-1 40), complete insulation
Product details
| Gross weight | 9.5 Kg |
| Net weight | 9 Kg |
| EAN | 5715162433621 |
| Gross weight | 9.5 Kg |
| Net weight | 9 Kg |
| EAN | 5715162433621 |
| Connection direction | Bottom |
| DCW static pressure [bar] [Min] | 2 bar |
| Depth with cover [mm] | 210 mm |
| Depth without cover [mm] | 190 mm |
| Description | Akva Lux II Type 2, (XB06H-1 40), complete insulation |
| DH connection size | 3/4" |
| DH connection type | G ext. thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] [Max] | 55 kW |
| DHW capacity [kW] [Min] | 37 kW |
| DHW circulation | Optional |
| DHW connection size | 3/4" |
| DHW connection type | G ext. thread |
| DHW Control type | Flow/thermostatic |
| DHW controller name | PTC2 + P |
| DHW HEX type | XB06H-1 40 |
| DHW pipe size | Ø18 |
| Differential pressure controller | Integrated |
| Height with cover [mm] | 463 mm |
| Height without cover [mm] | 463 mm |
| HEX heating alloy | AISI 316 |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| In scope of WEEE and contain batteries | No |
| Package depth [mm] | 345 mm |
| Package height [mm] | 210 mm |
| Package width [mm] | 480 mm |
| Pressure nominal primary [bar] | 16 bar |
| Pressure nominal secondary [bar] | 10 bar |
| Product group | Small Stations |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Station size type | Type 2 |
| Supply temperature construction [˚C] | 110 °C |
| Type | Akva Lux II |
| Connection direction | Bottom |
| DCW static pressure [bar] [Min] | 2 bar |
| Depth with cover [mm] | 210 mm |
| Depth without cover [mm] | 190 mm |
| Description | Akva Lux II Type 2, (XB06H-1 40), complete insulation |
| DH connection size | 3/4" |
| DH connection type | G ext. thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] [Max] | 55 kW |
| DHW capacity [kW] [Min] | 37 kW |
| DHW circulation | Optional |
| DHW connection size | 3/4" |
| DHW connection type | G ext. thread |
| DHW Control type | Flow/thermostatic |
| DHW controller name | PTC2 + P |
| DHW HEX type | XB06H-1 40 |
| DHW pipe size | Ø18 |
| Differential pressure controller | Integrated |
| Height with cover [mm] | 463 mm |
| Height without cover [mm] | 463 mm |
| HEX heating alloy | AISI 316 |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| In scope of WEEE and contain batteries | No |
| Package depth [mm] | 345 mm |
| Package height [mm] | 210 mm |
| Package width [mm] | 480 mm |
| Pressure nominal primary [bar] | 16 bar |
| Pressure nominal secondary [bar] | 10 bar |
| Product group | Small Stations |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Station size type | Type 2 |
| Supply temperature construction [˚C] | 110 °C |
| Type | Akva Lux II |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
