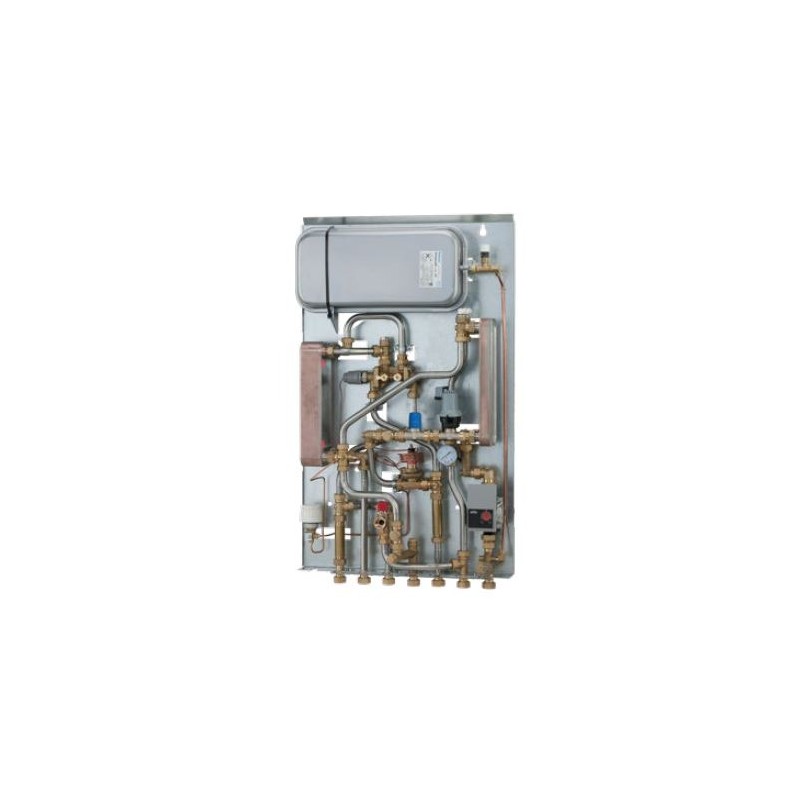

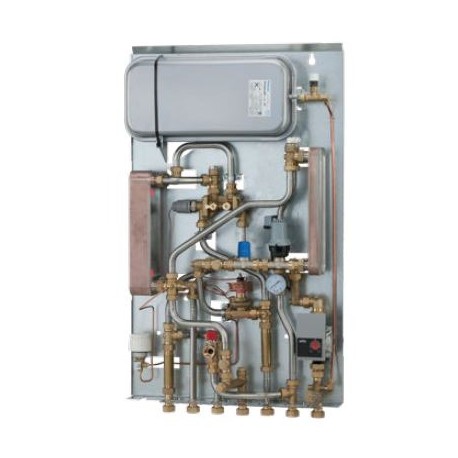

145F3902 DANFOSS HEATING Радиатор VX-F с RA-C/FTZ
145F3902
DANFOSS HEATING
Радиатор VX-F с RA-C/FTZ
VX-F, Type 1, 16 bar, 95 °C, DHW controller name: PTC2 + P, Thermostat
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲VX-F for Floor heating, RA-C/FTZ
Product details
| Gross weight | 31 Kg |
| Net weight | 30 Kg |
| EAN | 5702428525008 |
| Gross weight | 31 Kg |
| Net weight | 30 Kg |
| EAN | 5702428525008 |
| Additional information | Zone valve |
| Connection direction | Bottom |
| Description | VX-F for Floor heating, RA-C/FTZ |
| DH connection size | 3/4" |
| DHW capacity [kW] [Max] | 55 kW |
| DHW capacity [kW] [Min] | 37 kW |
| DHW Control type | Flow/thermostatic |
| DHW controller name | PTC2 + P |
| DHW HEX type | XB06H-1 40 |
| DHW pipe size | Ø18 |
| Differential pressure controller | Integrated |
| HE connection size | 3/4" |
| HE connection type | G int. Thread |
| HE pipe size | Ø18 |
| Heat exchanger test pressure [bar] | 38 bar |
| Heating capacity [kW] | 10 kW |
| Heating capacity [kW] [Max] | 15 kW |
| Heating capacity [kW] [Min] | 10 kW |
| Heating circuit - control | Thermostat |
| Heating control type | Differential pressure + zone valve |
| Heating controller name | AVPL + FTC/RAC |
| Heating HEX type | XB06H-1 16 |
| Heating pump brand | Wilo |
| Heating pump type | YONOS PARA RS 15/6 |
| HEX heating alloy | AISI 316 |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| In scope of WEEE and contain batteries | No |
| Manufacturer's name | Danfoss |
| Pressure nominal primary [bar] | 16 bar |
| Pressure nominal secondary [bar] | 3 bar |
| Product group | Small Stations |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Station size type | Type 1 |
| Supply temperature construction [˚C] | 95 °C |
| Supply voltage [V] AC | 230 V |
| Type | VX-F |
| Additional information | Zone valve |
| Connection direction | Bottom |
| Description | VX-F for Floor heating, RA-C/FTZ |
| DH connection size | 3/4" |
| DHW capacity [kW] [Max] | 55 kW |
| DHW capacity [kW] [Min] | 37 kW |
| DHW Control type | Flow/thermostatic |
| DHW controller name | PTC2 + P |
| DHW HEX type | XB06H-1 40 |
| DHW pipe size | Ø18 |
| Differential pressure controller | Integrated |
| HE connection size | 3/4" |
| HE connection type | G int. Thread |
| HE pipe size | Ø18 |
| Heat exchanger test pressure [bar] | 38 bar |
| Heating capacity [kW] | 10 kW |
| Heating capacity [kW] [Max] | 15 kW |
| Heating capacity [kW] [Min] | 10 kW |
| Heating circuit - control | Thermostat |
| Heating control type | Differential pressure + zone valve |
| Heating controller name | AVPL + FTC/RAC |
| Heating HEX type | XB06H-1 16 |
| Heating pump brand | Wilo |
| Heating pump type | YONOS PARA RS 15/6 |
| HEX heating alloy | AISI 316 |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| In scope of WEEE and contain batteries | No |
| Manufacturer's name | Danfoss |
| Pressure nominal primary [bar] | 16 bar |
| Pressure nominal secondary [bar] | 3 bar |
| Product group | Small Stations |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Station size type | Type 1 |
| Supply temperature construction [˚C] | 95 °C |
| Supply voltage [V] AC | 230 V |
| Type | VX-F |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
