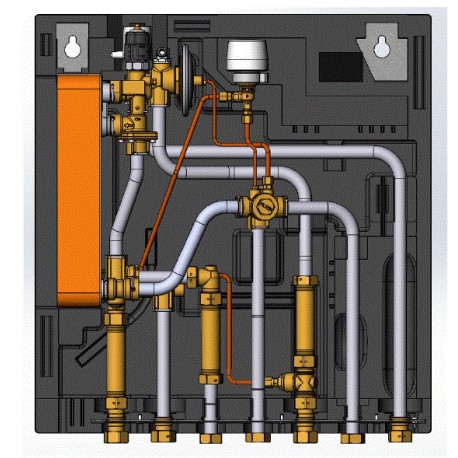

145B0078 DANFOSS HEATING EvoFlat FSS FR2 TPC-M TWA с крышкой, BP
145B0078
DANFOSS HEATING
EvoFlat FSS FR2 TPC-M TWA с крышкой, BP
EvoFlat FSS, Type 2, 10 bar, 95 °C, DHW controller name: TPC-M, Thermostat
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲EvoFlat FSS FR2 TPC-M TWA w/Cover, BP
Product details
| Gross weight | 12.373 Kg |
| Net weight | 12 Kg |
| Volume | 80.58 Liter |
| EAN | 5715162037867 |
| Gross weight | 12.373 Kg |
| Net weight | 12 Kg |
| Volume | 80.58 Liter |
| EAN | 5715162037867 |
| Connection direction | Bottom |
| Cover material | White-lacquered In wall |
| Cover option | Extra |
| DCW static pressure [bar] [Min] | 2 bar |
| Depth with cover [mm] | 153 mm |
| Depth without cover [mm] | 110 mm |
| Description | EvoFlat FSS FR2 TPC-M TWA w/Cover, BP |
| DH connection size | 3/4" |
| DH connection type | G int. Thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] [Max] | 53 kW |
| DHW capacity [kW] [Min] | 45 kW |
| DHW circulation | Without |
| DHW connection size | 3/4" |
| DHW connection type | G int. Thread |
| DHW Control type | Flow/thermostatic |
| DHW controller name | TPC-M |
| DHW HEX type | XB06H-1 26 |
| DHW pipe size | Ø18 |
| Differential pressure controller | Integrated |
| Fitting piece | Energy meter return |
| HE connection size | 3/4" |
| HE connection type | G int. Thread |
| HE pipe size | Ø18 |
| Heat exchanger test pressure [bar] | 38 bar |
| Heating capacity [kW] [Max] | 15 kW |
| Heating capacity [kW] [Min] | 10 kW |
| Heating circuit - control | Thermostat |
| Heating control type | Differential pressure |
| Heating controller name | TPC-M |
| Heating system type | Radiator heating |
| Height with cover [mm] | 590 mm |
| Height without cover [mm] | 590 mm |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| In scope of WEEE and contain batteries | No |
| Insulation material | Without |
| Manufacturer's name | Danfoss |
| Number of households [Max] | 2 |
| Number of households [Min] | 1 |
| Package depth [mm] | 600 mm |
| Package height [mm] | 160 mm |
| Package width [mm] | 800 mm |
| Pressure nominal primary [bar] | 10 bar |
| Pressure nominal secondary [bar] | 10 bar |
| Product group | Small Stations |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Remarks | Insulated Flatstations |
| Station size type | Type 2 |
| Supply temperature construction [˚C] | 95 °C |
| Type | EvoFlat FSS |
| Width with cover [mm] | 545 mm |
| Width without cover [mm] | 545 mm |
| Connection direction | Bottom |
| Cover material | White-lacquered In wall |
| Cover option | Extra |
| DCW static pressure [bar] [Min] | 2 bar |
| Depth with cover [mm] | 153 mm |
| Depth without cover [mm] | 110 mm |
| Description | EvoFlat FSS FR2 TPC-M TWA w/Cover, BP |
| DH connection size | 3/4" |
| DH connection type | G int. Thread |
| DH pipe size | Ø18 |
| DHW capacity [kW] [Max] | 53 kW |
| DHW capacity [kW] [Min] | 45 kW |
| DHW circulation | Without |
| DHW connection size | 3/4" |
| DHW connection type | G int. Thread |
| DHW Control type | Flow/thermostatic |
| DHW controller name | TPC-M |
| DHW HEX type | XB06H-1 26 |
| DHW pipe size | Ø18 |
| Differential pressure controller | Integrated |
| Fitting piece | Energy meter return |
| HE connection size | 3/4" |
| HE connection type | G int. Thread |
| HE pipe size | Ø18 |
| Heat exchanger test pressure [bar] | 38 bar |
| Heating capacity [kW] [Max] | 15 kW |
| Heating capacity [kW] [Min] | 10 kW |
| Heating circuit - control | Thermostat |
| Heating control type | Differential pressure |
| Heating controller name | TPC-M |
| Heating system type | Radiator heating |
| Height with cover [mm] | 590 mm |
| Height without cover [mm] | 590 mm |
| HEX heating brazing material | Copper |
| HEX heating type | Brazed |
| In scope of WEEE and contain batteries | No |
| Insulation material | Without |
| Manufacturer's name | Danfoss |
| Number of households [Max] | 2 |
| Number of households [Min] | 1 |
| Package depth [mm] | 600 mm |
| Package height [mm] | 160 mm |
| Package width [mm] | 800 mm |
| Pressure nominal primary [bar] | 10 bar |
| Pressure nominal secondary [bar] | 10 bar |
| Product group | Small Stations |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Remarks | Insulated Flatstations |
| Station size type | Type 2 |
| Supply temperature construction [˚C] | 95 °C |
| Type | EvoFlat FSS |
| Width with cover [mm] | 545 mm |
| Width without cover [mm] | 545 mm |
