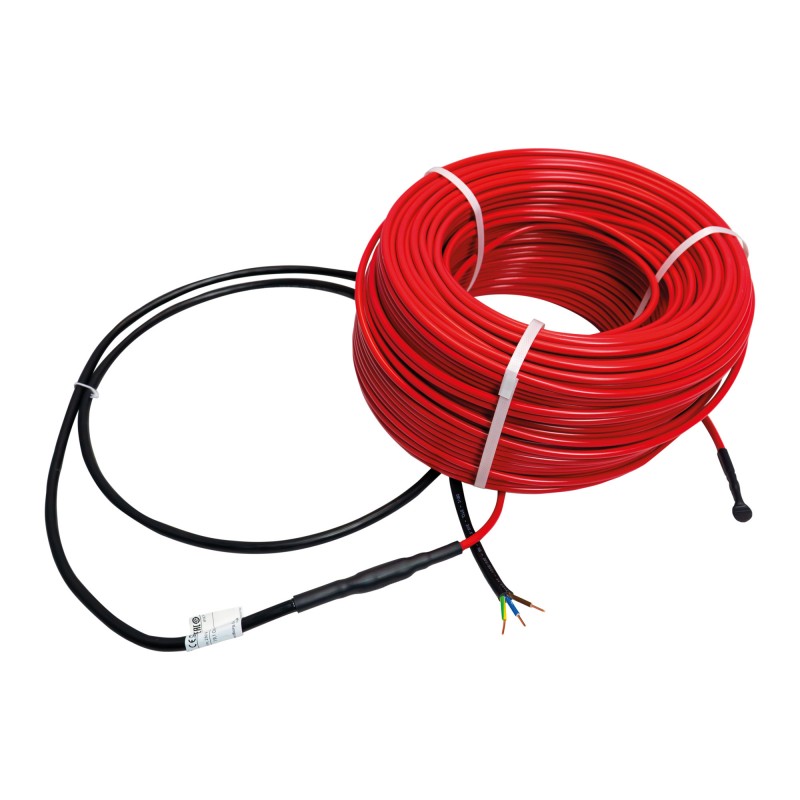

140F1402 DANFOSS HEATING DEVIflex 18T 170 м 230 В 3050 Вт
140F1402
DANFOSS HEATING
DEVIflex 18T 170 м 230 В 3050 Вт
Heating Cables, DEVIflex™ 18T, 18 W/m, 170.00 m, Supply voltage [V] AC: 230
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Cable type: Twin conductor, Product version: Ready-made, Heating principle: Serial resistive, Application: Cold store; Pipe / tank frost protection; Sport fields; Floor heating
Product details
| Gross weight | 10.423 Kg |
| Net weight | 10.32 Kg |
| Volume | 30.842 Liter |
| EAN | 5703466226292 |
| Gross weight | 10.423 Kg |
| Net weight | 10.32 Kg |
| Volume | 30.842 Liter |
| EAN | 5703466226292 |
| Application | Pipe / tank frost protection Floor heating Cold store Sport fields |
| Approval | CE UkrTEST EAC |
| Bending diameter [mm] [Min] | 42 mm |
| Cable diameter [mm] | 6.9 mm |
| Cable length [m] | 170 m |
| Cable on drum | No |
| Cable output [W/m] | 18 W/m |
| Cable resistance [Ohm] | 17.3 |
| Cable screen | Alufoil 100% |
| Cable type | Twin conductor |
| Certification company | Intertek Semko UkrTEST |
| Cold lead | Yes |
| Cold lead conductor quantity | 3 |
| Cold lead length [m] | 2.3 m |
| Cold lead quantity | 1 |
| Cold lead size [mm²] | 2.5 mm² |
| Cold lead type | DTCL |
| Conductor insulation | XLPE |
| Cut to length | No |
| Deformation strength [N] | 1500 N |
| Description | DEVIflex 18T 3050W 230V 170m |
| Element IP Class | IPX7 |
| Flame retardant | Yes |
| Heating output [W] | 3050 W |
| Heating principle | Serial resistive |
| In scope of WEEE and contain batteries | No |
| Installation temperature [°C] [Min] | -5 °C |
| Lead free | Yes |
| Non operating temperature [°C] [Max] | 90 °C |
| Operating temperature [°C] [max] | 60 °C |
| Outer sheath | PVC |
| Outer sheath colour | Red |
| Package depth [mm] | 386 mm |
| Package height [mm] | 207 mm |
| Package width [mm] | 386 mm |
| Product group | Heating Cables |
| Product version | Ready-made |
| Pulling strength [N] | 500 N |
| Set accessories | No |
| Supply voltage [V] AC | 230 V |
| Type | DEVIflex™ 18T |
| UNSPSC CODE | 26121601 |
| UV Protected | No |
| Warranty [Year] | 20 |
| Warranty type | 20-year full service warranty |
| Application | Pipe / tank frost protection Floor heating Cold store Sport fields |
| Approval | CE UkrTEST EAC |
| Bending diameter [mm] [Min] | 42 mm |
| Cable diameter [mm] | 6.9 mm |
| Cable length [m] | 170 m |
| Cable on drum | No |
| Cable output [W/m] | 18 W/m |
| Cable resistance [Ohm] | 17.3 |
| Cable screen | Alufoil 100% |
| Cable type | Twin conductor |
| Certification company | Intertek Semko UkrTEST |
| Cold lead | Yes |
| Cold lead conductor quantity | 3 |
| Cold lead length [m] | 2.3 m |
| Cold lead quantity | 1 |
| Cold lead size [mm²] | 2.5 mm² |
| Cold lead type | DTCL |
| Conductor insulation | XLPE |
| Cut to length | No |
| Deformation strength [N] | 1500 N |
| Description | DEVIflex 18T 3050W 230V 170m |
| Element IP Class | IPX7 |
| Flame retardant | Yes |
| Heating output [W] | 3050 W |
| Heating principle | Serial resistive |
| In scope of WEEE and contain batteries | No |
| Installation temperature [°C] [Min] | -5 °C |
| Lead free | Yes |
| Non operating temperature [°C] [Max] | 90 °C |
| Operating temperature [°C] [max] | 60 °C |
| Outer sheath | PVC |
| Outer sheath colour | Red |
| Package depth [mm] | 386 mm |
| Package height [mm] | 207 mm |
| Package width [mm] | 386 mm |
| Product group | Heating Cables |
| Product version | Ready-made |
| Pulling strength [N] | 500 N |
| Set accessories | No |
| Supply voltage [V] AC | 230 V |
| Type | DEVIflex™ 18T |
| UNSPSC CODE | 26121601 |
| UV Protected | No |
| Warranty [Year] | 20 |
| Warranty type | 20-year full service warranty |
Datasheet - PDF
