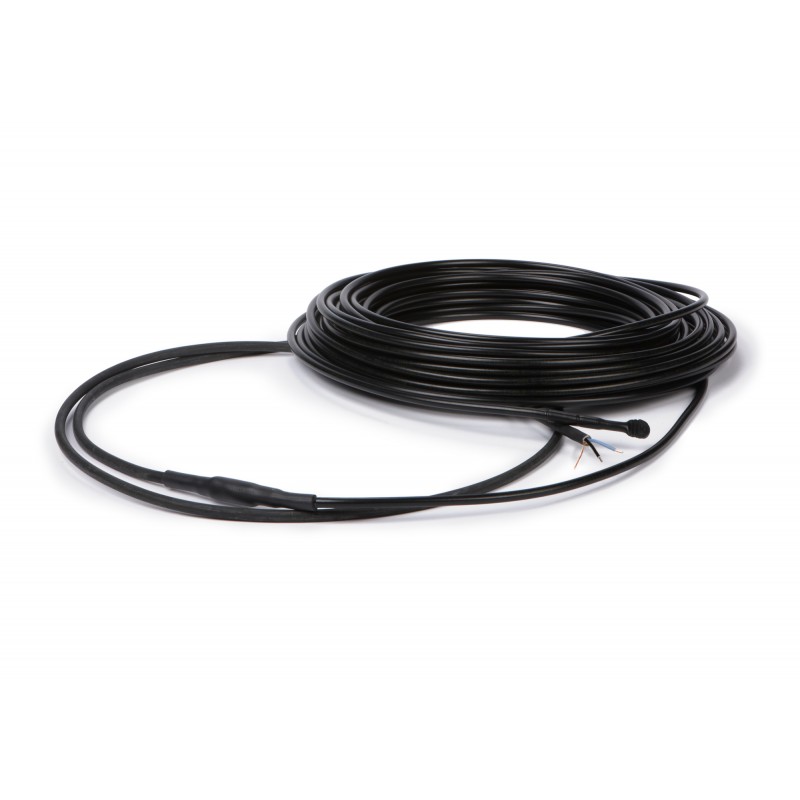

140F1290 DANFOSS HEATING Devisafe 20T 590 Вт 400 В 29 м
140F1290
DANFOSS HEATING
Devisafe 20T 590 Вт 400 В 29 м
Heating Cables, DEVIsafe™ 20T, 20 W/m, 29.00 m, Supply voltage [V] AC: 400
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Cable type: Twin conductor, Product version: Ready-made, Heating principle: Serial resistive, Application: Roof frost protection; Vineyard frost protection; Cold store; Ground ice and snow melting; Sport fields
Product details
| Gross weight | 2.687 Kg |
| Net weight | 2.66 Kg |
| Volume | 0.014 Cubic.mtr |
| EAN | 5703466224267 |
| Gross weight | 2.687 Kg |
| Net weight | 2.66 Kg |
| Volume | 0.014 Cubic.mtr |
| EAN | 5703466224267 |
| Application | Cold store Ground ice and snow melting Roof frost protection Sport fields Vineyard frost protection |
| Approval | CE EAC |
| Bending diameter [mm] [Min] | 42 mm |
| Cable diameter [mm] | 6.9 mm |
| Cable length [m] | 29 m |
| Cable on drum | No |
| Cable output [W/m] | 20 W/m |
| Cable resistance [Ohm] | 271 |
| Cable screen | Alufoil 100% |
| Cable type | Twin conductor |
| Certification company | Intertek Semko |
| Cold lead | Yes |
| Cold lead conductor quantity | 3 |
| Cold lead length [m] | 2.3 m |
| Cold lead quantity | 1 |
| Cold lead size [mm²] | 1.5 mm² |
| Cold lead type | DTCL |
| Conductor insulation | XLPE |
| Cut to length | No |
| Deformation strength [N] | 1500 N |
| Description | DEVIsafe 20T 590W 400V 29m |
| Element IP Class | IPX7 |
| Flame retardant | Yes |
| Heating output [W] | 590 W |
| Heating principle | Serial resistive |
| In scope of WEEE and contain batteries | No |
| Installation temperature [°C] [Min] | -5 °C |
| Lead free | Yes |
| Non operating temperature [°C] [Max] | 90 °C |
| Operating temperature [°C] [max] | 60 °C |
| Outer sheath | PVC |
| Outer sheath colour | Black |
| Package depth [mm] | 386 mm |
| Package height [mm] | 92 mm |
| Package width [mm] | 386 mm |
| Product group | Heating Cables |
| Product version | Ready-made |
| Pulling strength [N] | 500 N |
| Supply voltage [V] AC | 400 V |
| Type | DEVIsafe™ 20T |
| UV Protected | Yes |
| Warranty [Year] | 20 |
| Application | Cold store Ground ice and snow melting Roof frost protection Sport fields Vineyard frost protection |
| Approval | CE EAC |
| Bending diameter [mm] [Min] | 42 mm |
| Cable diameter [mm] | 6.9 mm |
| Cable length [m] | 29 m |
| Cable on drum | No |
| Cable output [W/m] | 20 W/m |
| Cable resistance [Ohm] | 271 |
| Cable screen | Alufoil 100% |
| Cable type | Twin conductor |
| Certification company | Intertek Semko |
| Cold lead | Yes |
| Cold lead conductor quantity | 3 |
| Cold lead length [m] | 2.3 m |
| Cold lead quantity | 1 |
| Cold lead size [mm²] | 1.5 mm² |
| Cold lead type | DTCL |
| Conductor insulation | XLPE |
| Cut to length | No |
| Deformation strength [N] | 1500 N |
| Description | DEVIsafe 20T 590W 400V 29m |
| Element IP Class | IPX7 |
| Flame retardant | Yes |
| Heating output [W] | 590 W |
| Heating principle | Serial resistive |
| In scope of WEEE and contain batteries | No |
| Installation temperature [°C] [Min] | -5 °C |
| Lead free | Yes |
| Non operating temperature [°C] [Max] | 90 °C |
| Operating temperature [°C] [max] | 60 °C |
| Outer sheath | PVC |
| Outer sheath colour | Black |
| Package depth [mm] | 386 mm |
| Package height [mm] | 92 mm |
| Package width [mm] | 386 mm |
| Product group | Heating Cables |
| Product version | Ready-made |
| Pulling strength [N] | 500 N |
| Supply voltage [V] AC | 400 V |
| Type | DEVIsafe™ 20T |
| UV Protected | Yes |
| Warranty [Year] | 20 |
Datasheet - PDF
