DANFOSS HEATING140F1071 DANFOSS HEATING DEVIreg Touch Polar White

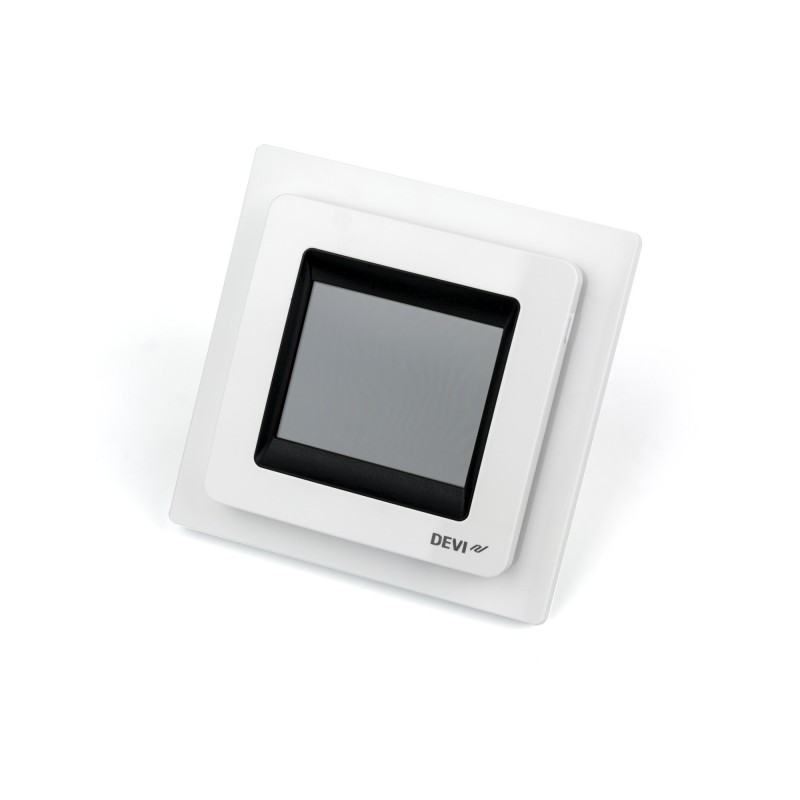

DANFOSS HEATING 140F1071 140F1071 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

140F1071 DANFOSS HEATING DEVIreg Touch Polar White

Reference: 140F1071

Manufacturer: DANFOSS HEATING

Description:

DEVIreg Touch - Polar White
Thermostats, DEVIreg™ Touch, Sensor type: Room + Floor, 16 A

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 199,96 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Temperature - floor [°C]: 5 - 45, Temperature - room [°C]: 5 - 35, Display type: Touch screen, Application: Floor heating

Product details

Gross weight0.242 Kilogram
Net weight0.24 Kilogram
Volume1.131 Liter
EAN5703466225615
TypeDEVIreg™ Touch
Product groupThermostats
Gross weight0.242 Kilogram
Net weight0.24 Kilogram
Volume1.131 Liter
EAN5703466225615
TypeDEVIreg™ Touch
Product groupThermostats

1 Primary battery SUM weight Kg0
1 Primary battery weight Kg0
2-pole switchNo
Ambient temperature [°C] [max]30 °C
Ambient temperature [°C] [min]0 °C
ApplicationFloor heating
ApprovalUkrTEST
CE
Ball pressure test temperature [°C]75 °C
Battery backupYes
Battery qty1
Battery type or NameCoin battery - (Manganese Silicon) lithium rechargeable battery by Seiko (MS414GE)
CE evaluatedYes
Certification companyCE
EAC
Intertek Semko
UkrTEST
China RoHS complianceOut of scope
ColourWhite RAL 9016
Compatible foreign sensor typeYes
Compatible frame systemYes
Contains batteriesYes
Depth [mm]24 mm
DescriptionDEVIreg™ Touch - Polar White
DIN mountingNo
Display (Yes/No)Yes
Display typeTouch screen
EEE category5 small equipment (any external dimension < 50 cm)
Element IP Class21
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Frost protection [°C]5 °C
Height [mm]85 mm
In scope of WEEEYes
Inductive loadcos φ= 0.3 max 1A
Package depth [mm]140 mm
Package height [mm]85 mm
Package width [mm]95 mm
Pollution degree2
Product descriptionDEVIreg™ Touch
REACH Candidate List substancesNo
Regulation typePWM
Relay switch1-pole
Resistive load max [A]16 A
Sensor definition point [Ohm/°C]15kΩ / 25°C
Sensor typeRoom + Floor
Software classA
Standby power consumption [W] [Max]0.4 W
Storage temperature [°C] [Max]65 °C
Storage temperature [°C] [Min]-20 °C
Supply voltage [V] AC230 V
Supply voltage [V] AC [max]240 V
Supply voltage [V] AC [min]220 V
Temperature - floor [°C] [Max]45 °C
Temperature - floor [°C] [Min]5 °C
Temperature - room [°C] [Max]35 °C
Temperature - room [°C] [Min]5 °C
Temperature limiter [°C] [Max]45 °C
Temperature limiter [°C] [Min]5 °C
Temperature max. limiter [°C] [Max]35 °C
Temperature max. limiter [°C] [Min]20 °C
Temperature min. limiter [°C] [Max]35 °C
Temperature min. limiter [°C] [Min]10 °C
Terminal cable size max [mm²]2 x 2.5
Thermostat IP Class21
UL evaluatedOut of scope
UNSPSC CODE41112209
Warranty [Year]5
Warranty type5-year product warranty
Weight per battery0 g
Width [mm]85 mm
1 Primary battery SUM weight Kg0
1 Primary battery weight Kg0
2-pole switchNo
Ambient temperature [°C] [max]30 °C
Ambient temperature [°C] [min]0 °C
ApplicationFloor heating
ApprovalUkrTEST
CE
Ball pressure test temperature [°C]75 °C
Battery backupYes
Battery qty1
Battery type or NameCoin battery - (Manganese Silicon) lithium rechargeable battery by Seiko (MS414GE)
CE evaluatedYes
Certification companyCE
EAC
Intertek Semko
UkrTEST
China RoHS complianceOut of scope
ColourWhite RAL 9016
Compatible foreign sensor typeYes
Compatible frame systemYes
Contains batteriesYes
Depth [mm]24 mm
DescriptionDEVIreg™ Touch - Polar White
DIN mountingNo
Display (Yes/No)Yes
Display typeTouch screen
EEE category5 small equipment (any external dimension < 50 cm)
Element IP Class21
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Frost protection [°C]5 °C
Height [mm]85 mm
In scope of WEEEYes
Inductive loadcos φ= 0.3 max 1A
Package depth [mm]140 mm
Package height [mm]85 mm
Package width [mm]95 mm
Pollution degree2
Product descriptionDEVIreg™ Touch
REACH Candidate List substancesNo
Regulation typePWM
Relay switch1-pole
Resistive load max [A]16 A
Sensor definition point [Ohm/°C]15kΩ / 25°C
Sensor typeRoom + Floor
Software classA
Standby power consumption [W] [Max]0.4 W
Storage temperature [°C] [Max]65 °C
Storage temperature [°C] [Min]-20 °C
Supply voltage [V] AC230 V
Supply voltage [V] AC [max]240 V
Supply voltage [V] AC [min]220 V
Temperature - floor [°C] [Max]45 °C
Temperature - floor [°C] [Min]5 °C
Temperature - room [°C] [Max]35 °C
Temperature - room [°C] [Min]5 °C
Temperature limiter [°C] [Max]45 °C
Temperature limiter [°C] [Min]5 °C
Temperature max. limiter [°C] [Max]35 °C
Temperature max. limiter [°C] [Min]20 °C
Temperature min. limiter [°C] [Max]35 °C
Temperature min. limiter [°C] [Min]10 °C
Terminal cable size max [mm²]2 x 2.5
Thermostat IP Class21
UL evaluatedOut of scope
UNSPSC CODE41112209
Warranty [Year]5
Warranty type5-year product warranty
Weight per battery0 g
Width [mm]85 mm

DATASHEET - PDF

Title
Size
Type
140F1071 140F1071 EN_140F1064.pdf
866 Kbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
