DANFOSS HEATING140F1011 DANFOSS HEATING Devireg 132

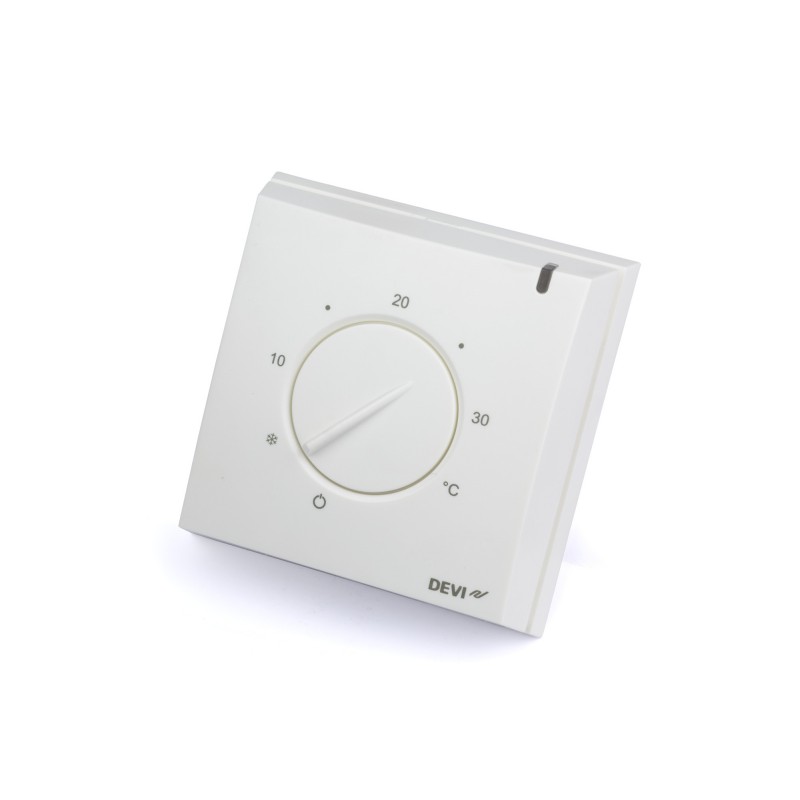

DANFOSS HEATING 140F1011 140F1011 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

140F1011 DANFOSS HEATING Devireg 132

Reference: 140F1011

Manufacturer: DANFOSS HEATING

Description:

Devireg 132
Thermostats, DEVIreg™ 132, Sensor type: Floor, 16 A

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Temperature - floor [°C]: 20 - 50, Temperature - room [°C]: 5 - 35, Display type: No display, Application: Floor heating

Product details

Gross weight0.225 Kilogram
Net weight0.223 Kilogram
Volume1.131 Liter
EAN5703466208960
TypeDEVIreg™ 13x series
Product groupThermostats
Gross weight0.225 Kilogram
Net weight0.223 Kilogram
Volume1.131 Liter
EAN5703466208960
TypeDEVIreg™ 13x series
Product groupThermostats

2-pole switchNo
Ambient temperature [°C] [max]30 °C
Ambient temperature [°C] [min]0 °C
ApplicationFloor heating
ApprovalCE
Ball pressure test temperature [°C]75 °C
CE evaluatedYes
Certification companyNEMKO
China RoHS complianceOut of scope
ColourWhite RAL 9010
Contains batteriesNo
Depth [mm]36 mm
DescriptionDEVIreg™ 132
DIN mountingNo
Display typeNo display
EEE category5 small equipment (any external dimension < 50 cm)
Element IP Class30
EU RoHS complianceYes
Frost protection [°C]5 °C
Height [mm]82 mm
Hysteresis (+/-)0.2
In scope of WEEEYes
Indicator typeLED
Inductive loadcos φ= 0.3 max 1A
Package depth [mm]140 mm
Package height [mm]85 mm
Package width [mm]95 mm
Pollution degree2
Product descriptionDEVIreg™ 132
REACH Candidate List substancesNo
Regulation typeHysteresis
Relay switch1-pole
Resistive load max [A]16 A
Scale Setting0 - 6
Sensor definition point [Ohm/°C]15kΩ / 25°C
Sensor typeFloor
Standby power consumption [W] [Max]5 W
Storage temperature [°C] [Max]65 °C
Storage temperature [°C] [Min]-20 °C
Supply voltage [V] AC230 V
Supply voltage [V] AC [max]240 V
Supply voltage [V] AC [min]220 V
Temperature - floor [°C] [Max]50 °C
Temperature - floor [°C] [Min]20 °C
Temperature - room [°C] [Max]35 °C
Temperature - room [°C] [Min]5 °C
Terminal cable size max [mm²]2 x 2.5
UL evaluatedOut of scope
UNSPSC CODE41112209
Warranty [Year]2
Warranty type2-year product warranty
Width [mm]82 mm
2-pole switchNo
Ambient temperature [°C] [max]30 °C
Ambient temperature [°C] [min]0 °C
ApplicationFloor heating
ApprovalCE
Ball pressure test temperature [°C]75 °C
CE evaluatedYes
Certification companyNEMKO
China RoHS complianceOut of scope
ColourWhite RAL 9010
Contains batteriesNo
Depth [mm]36 mm
DescriptionDEVIreg™ 132
DIN mountingNo
Display typeNo display
EEE category5 small equipment (any external dimension < 50 cm)
Element IP Class30
EU RoHS complianceYes
Frost protection [°C]5 °C
Height [mm]82 mm
Hysteresis (+/-)0.2
In scope of WEEEYes
Indicator typeLED
Inductive loadcos φ= 0.3 max 1A
Package depth [mm]140 mm
Package height [mm]85 mm
Package width [mm]95 mm
Pollution degree2
Product descriptionDEVIreg™ 132
REACH Candidate List substancesNo
Regulation typeHysteresis
Relay switch1-pole
Resistive load max [A]16 A
Scale Setting0 - 6
Sensor definition point [Ohm/°C]15kΩ / 25°C
Sensor typeFloor
Standby power consumption [W] [Max]5 W
Storage temperature [°C] [Max]65 °C
Storage temperature [°C] [Min]-20 °C
Supply voltage [V] AC230 V
Supply voltage [V] AC [max]240 V
Supply voltage [V] AC [min]220 V
Temperature - floor [°C] [Max]50 °C
Temperature - floor [°C] [Min]20 °C
Temperature - room [°C] [Max]35 °C
Temperature - room [°C] [Min]5 °C
Terminal cable size max [mm²]2 x 2.5
UL evaluatedOut of scope
UNSPSC CODE41112209
Warranty [Year]2
Warranty type2-year product warranty
Width [mm]82 mm
