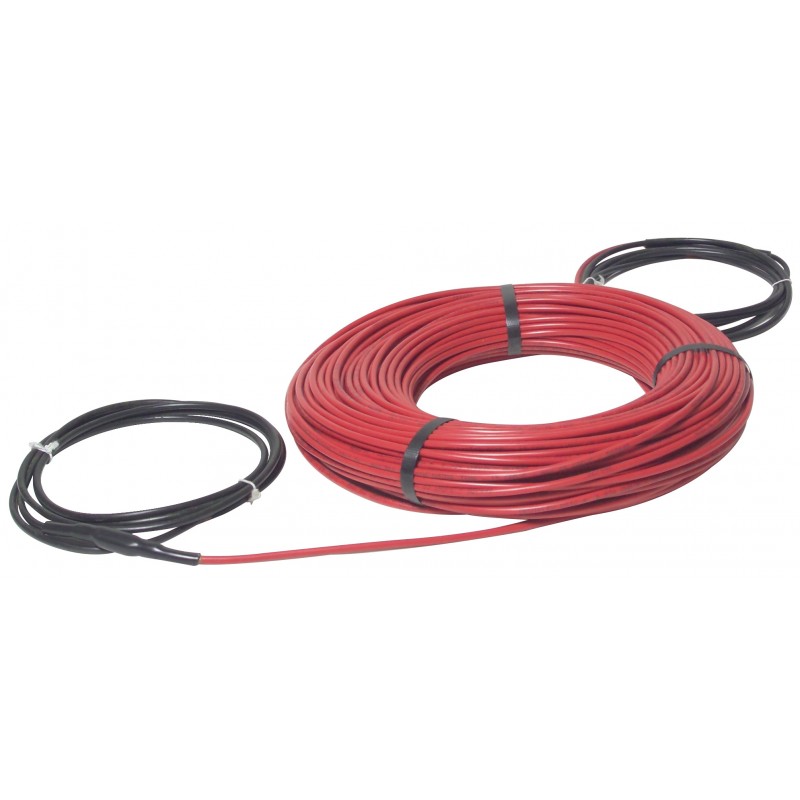

140F0232 DANFOSS HEATING DEVIbasic 20S 126 м 400 В 2550 Вт
140F0232
DANFOSS HEATING
DEVIbasic 20S 126 м 400 В 2550 Вт
Heating Cables, DEVIbasic™ 20S, 20 W/m, 126.00 m, Supply voltage [V] AC: 400
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Cable type: Single conductor, Product version: Ready-made, Heating principle: Serial resistive, Application: Cold store; Sport fields; Floor heating
Product details
| Gross weight | 6.363 Kg |
| Net weight | 6.3 Kg |
| Volume | 21.157 Liter |
| EAN | 5703466202456 |
| Gross weight | 6.363 Kg |
| Net weight | 6.3 Kg |
| Volume | 21.157 Liter |
| EAN | 5703466202456 |
| Application | Sport fields Floor heating Cold store |
| Approval | CE UkrTEST EAC |
| Bending diameter [mm] [Min] | 35 mm |
| Cable diameter [mm] | 5.5 mm |
| Cable length [m] | 126 m |
| Cable on drum | No |
| Cable output [W/m] | 20 W/m |
| Cable resistance [Ohm] | 62.7 |
| Cable screen | Copper braid |
| Cable type | Single conductor |
| Certification company | NEMKO UkrTEST |
| Cold lead | Yes |
| Cold lead conductor quantity | 1 |
| Cold lead length [m] | 3 m |
| Cold lead quantity | 2 |
| Cold lead size [mm²] | 1.5 mm² |
| Cold lead type | DSWA |
| Conductor insulation | XLPE |
| Cut to length | No |
| Deformation strength [N] | 600 N |
| Description | DEVIbasic 20S 126M 2550W 400V |
| Element IP Class | IPX7 |
| Flame retardant | Yes |
| Heating output [W] | 2550 W |
| Heating principle | Serial resistive |
| In scope of WEEE and contain batteries | No |
| Installation temperature [°C] [Min] | -5 °C |
| Lead free | Yes |
| Non operating temperature [°C] [Max] | 90 °C |
| Operating temperature [°C] [max] | 60 °C |
| Outer sheath | PVC |
| Outer sheath colour | Red |
| Package depth [mm] | 380 mm |
| Package height [mm] | 120 mm |
| Package width [mm] | 380 mm |
| Product group | Heating Cables |
| Product version | Ready-made |
| Pulling strength [N] | 120 N |
| Screen braided coverage [%] [Min] | 70 % |
| Supply voltage [V] AC | 400 V |
| Type | DEVIbasic™ 20S |
| UNSPSC CODE | 26121601 |
| UV Protected | No |
| Warranty [Year] | 20 |
| Warranty type | 20-year full service warranty |
| Application | Sport fields Floor heating Cold store |
| Approval | CE UkrTEST EAC |
| Bending diameter [mm] [Min] | 35 mm |
| Cable diameter [mm] | 5.5 mm |
| Cable length [m] | 126 m |
| Cable on drum | No |
| Cable output [W/m] | 20 W/m |
| Cable resistance [Ohm] | 62.7 |
| Cable screen | Copper braid |
| Cable type | Single conductor |
| Certification company | NEMKO UkrTEST |
| Cold lead | Yes |
| Cold lead conductor quantity | 1 |
| Cold lead length [m] | 3 m |
| Cold lead quantity | 2 |
| Cold lead size [mm²] | 1.5 mm² |
| Cold lead type | DSWA |
| Conductor insulation | XLPE |
| Cut to length | No |
| Deformation strength [N] | 600 N |
| Description | DEVIbasic 20S 126M 2550W 400V |
| Element IP Class | IPX7 |
| Flame retardant | Yes |
| Heating output [W] | 2550 W |
| Heating principle | Serial resistive |
| In scope of WEEE and contain batteries | No |
| Installation temperature [°C] [Min] | -5 °C |
| Lead free | Yes |
| Non operating temperature [°C] [Max] | 90 °C |
| Operating temperature [°C] [max] | 60 °C |
| Outer sheath | PVC |
| Outer sheath colour | Red |
| Package depth [mm] | 380 mm |
| Package height [mm] | 120 mm |
| Package width [mm] | 380 mm |
| Product group | Heating Cables |
| Product version | Ready-made |
| Pulling strength [N] | 120 N |
| Screen braided coverage [%] [Min] | 70 % |
| Supply voltage [V] AC | 400 V |
| Type | DEVIbasic™ 20S |
| UNSPSC CODE | 26121601 |
| UV Protected | No |
| Warranty [Year] | 20 |
| Warranty type | 20-year full service warranty |
Datasheet - PDF
