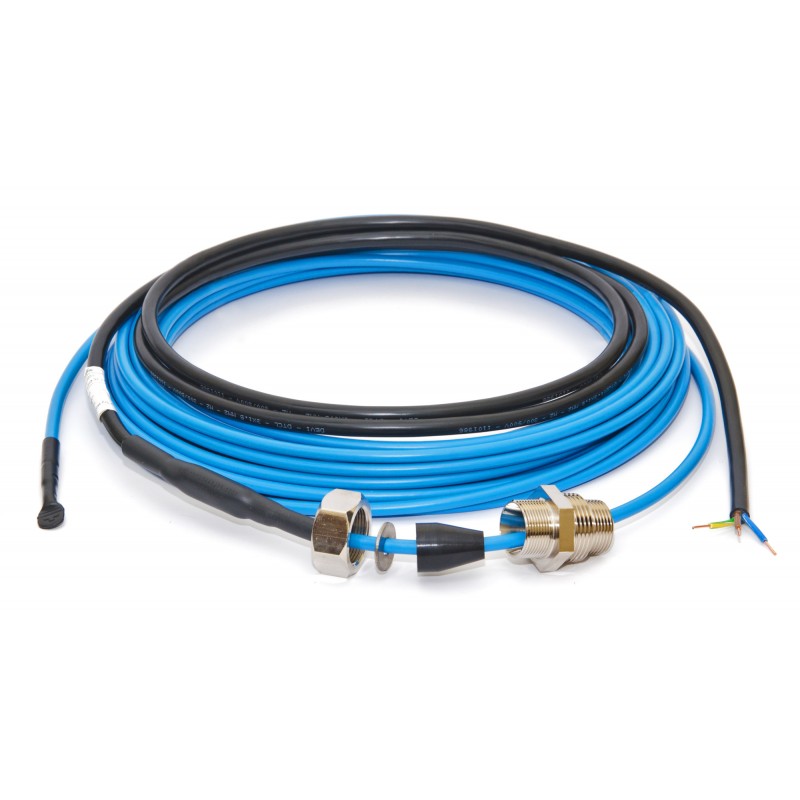

140F0016 DANFOSS HEATING DEVIaqua 9T 100 м 230 В 900 Вт
140F0016
DANFOSS HEATING
DEVIaqua 9T 100 м 230 В 900 Вт
Heating Cables, DEVIaqua™ 9T, 9 W/m, 100.00 m, Supply voltage [V] AC: 230
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Cable type: Twin conductor, Product version: Ready-made, Heating principle: Serial resistive, Application: Pipe / tank frost protection
Product details
| Gross weight | 5.716 Kg |
| Net weight | 5.66 Kg |
| Volume | 21.157 Liter |
| EAN | 5703466201695 |
| Gross weight | 5.716 Kg |
| Net weight | 5.66 Kg |
| Volume | 21.157 Liter |
| EAN | 5703466201695 |
| Application | Pipe / tank frost protection |
| Approval | CE UkrTEST EAC |
| Bending diameter [mm] [Min] | 50 mm |
| Cable diameter [mm] | 7 mm |
| Cable length [m] | 100 m |
| Cable on drum | No |
| Cable output [W/m] | 9 W/m |
| Cable resistance [Ohm] | 58.8 |
| Cable screen | Copper braid |
| Cable type | Twin conductor |
| Certification company | Intertek Semko UkrTEST |
| Cold lead | Yes |
| Cold lead conductor quantity | 3 |
| Cold lead length [m] | 2.3 m |
| Cold lead quantity | 1 |
| Cold lead size [mm²] | 1.5 mm² |
| Cold lead type | DTCL |
| Conductor insulation | XLPE |
| Cut to length | No |
| Deformation strength [N] | 1500 N |
| Description | DEVIaqua 9T 900W 230V 100m |
| Element IP Class | IPX7 |
| Heating output [W] | 900 W |
| Heating principle | Serial resistive |
| In scope of WEEE and contain batteries | No |
| Installation temperature [°C] [Min] | -5 °C |
| Lead free | Yes |
| Non operating temperature [°C] [Max] | 85 °C |
| Operating temperature [°C] [max] | 65 °C |
| Outer sheath | MDPE |
| Outer sheath colour | Light blue |
| Package depth [mm] | 380 mm |
| Package height [mm] | 120 mm |
| Package width [mm] | 380 mm |
| Product group | Heating Cables |
| Product version | Ready-made |
| Pulling strength [N] | 650 N |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 28575453-da7c-4b75-b271-de7038e9e039 |
| SCIP dossier product name | DEVIaqua 9T |
| Supply voltage [V] AC | 230 V |
| Type | DEVIaqua™ 9T |
| UNSPSC CODE | 26121601 |
| UV Protected | Yes |
| Warranty [Year] | 20 |
| Warranty type | 20-year product warranty |
| Water temperature [°C] [Max] | 23 °C |
| Application | Pipe / tank frost protection |
| Approval | CE UkrTEST EAC |
| Bending diameter [mm] [Min] | 50 mm |
| Cable diameter [mm] | 7 mm |
| Cable length [m] | 100 m |
| Cable on drum | No |
| Cable output [W/m] | 9 W/m |
| Cable resistance [Ohm] | 58.8 |
| Cable screen | Copper braid |
| Cable type | Twin conductor |
| Certification company | Intertek Semko UkrTEST |
| Cold lead | Yes |
| Cold lead conductor quantity | 3 |
| Cold lead length [m] | 2.3 m |
| Cold lead quantity | 1 |
| Cold lead size [mm²] | 1.5 mm² |
| Cold lead type | DTCL |
| Conductor insulation | XLPE |
| Cut to length | No |
| Deformation strength [N] | 1500 N |
| Description | DEVIaqua 9T 900W 230V 100m |
| Element IP Class | IPX7 |
| Heating output [W] | 900 W |
| Heating principle | Serial resistive |
| In scope of WEEE and contain batteries | No |
| Installation temperature [°C] [Min] | -5 °C |
| Lead free | Yes |
| Non operating temperature [°C] [Max] | 85 °C |
| Operating temperature [°C] [max] | 65 °C |
| Outer sheath | MDPE |
| Outer sheath colour | Light blue |
| Package depth [mm] | 380 mm |
| Package height [mm] | 120 mm |
| Package width [mm] | 380 mm |
| Product group | Heating Cables |
| Product version | Ready-made |
| Pulling strength [N] | 650 N |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 28575453-da7c-4b75-b271-de7038e9e039 |
| SCIP dossier product name | DEVIaqua 9T |
| Supply voltage [V] AC | 230 V |
| Type | DEVIaqua™ 9T |
| UNSPSC CODE | 26121601 |
| UV Protected | Yes |
| Warranty [Year] | 20 |
| Warranty type | 20-year product warranty |
| Water temperature [°C] [Max] | 23 °C |
Datasheet - PDF
