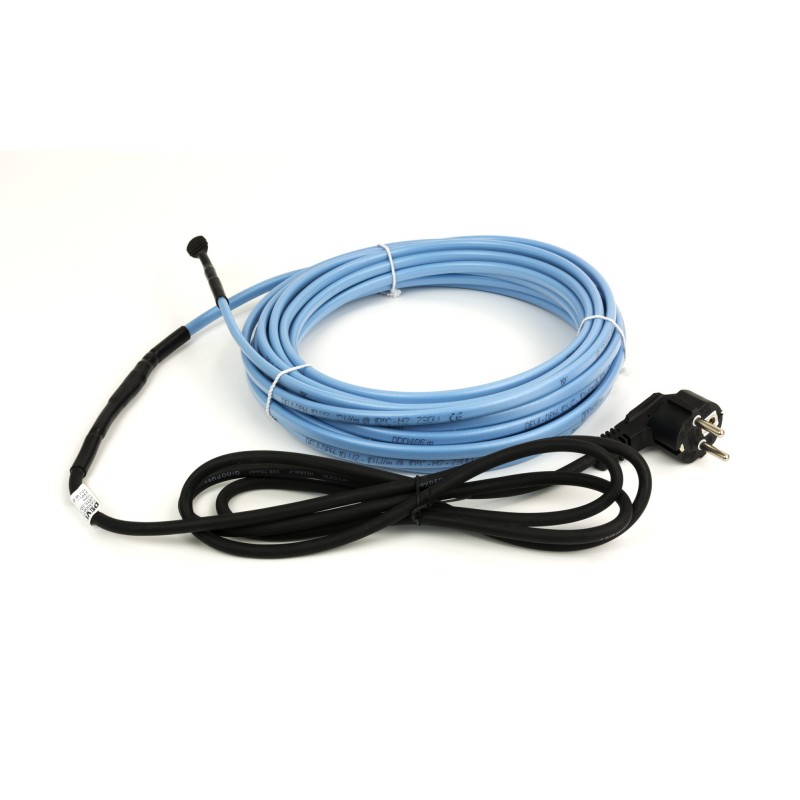

088L0995 DANFOSS HEATING Штекер ECpipeheat 10 V2 14 м 230 В
088L0995
DANFOSS HEATING
Штекер ECpipeheat 10 V2 14 м 230 В
Heating Cables, ECpipeheat 10 V2 readym., 10W/m@10°C, 14.00 m, Supply voltage [V] AC: 230
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Cable type: Twin conductor, Product version: Ready-made, Heating principle: Self-limiting, Application: Pipe / tank frost protection
Product details
| Gross weight | 1.37 Kg |
| Net weight | 1.166 Kg |
| Volume | 9.3 Liter |
| EAN | 5703466217870 |
| Gross weight | 1.37 Kg |
| Net weight | 1.166 Kg |
| Volume | 9.3 Liter |
| EAN | 5703466217870 |
| Application | Pipe / tank frost protection |
| Approval | UkrTEST CE |
| Bending diameter [mm] [Min] | 50 mm |
| Cable height [mm] | 5.3 mm |
| Cable length [m] | 14 m |
| Cable on drum | No |
| Cable output [W/m@°C] | 10W/m@10°C |
| Cable output [W@°C] | 140W@10°C |
| Cable screen | Alufoil 100% |
| Cable type | Twin conductor |
| Cable width [mm] | 7.7 mm |
| Certification company | CE EAC UkrTEST |
| Cold lead | Yes |
| Cold lead conductor quantity | 3 |
| Cold lead length [m] | 2 m |
| Cold lead quantity | 1 |
| Conductor insulation | Cross linked polyolefin |
| Conductor type | Tinned copper |
| Cut to length | No |
| Description | ECpipeheat 10 w/plug V2 14m 140W@10°C 230V |
| Element IP Class | IPX7 |
| Filler material | TPE |
| Heating principle | Self-limiting |
| In scope of WEEE and contain batteries | No |
| Installation temperature [°C] [Min] | -5 °C |
| Non operating temperature [°C] [Max] | 65 °C |
| Operating temperature [°C] [max] | 65 °C |
| Outer sheath | TPE |
| Outer sheath colour | Light blue |
| Product group | Heating Cables |
| Product version | Ready-made |
| Supply voltage [V] AC | 230 V |
| Type | ECpipeheat 10 V2 readym. |
| UNSPSC CODE | 40101830 |
| Warranty [Year] | 5 |
| Warranty type | 5-year product warranty |
| Application | Pipe / tank frost protection |
| Approval | UkrTEST CE |
| Bending diameter [mm] [Min] | 50 mm |
| Cable height [mm] | 5.3 mm |
| Cable length [m] | 14 m |
| Cable on drum | No |
| Cable output [W/m@°C] | 10W/m@10°C |
| Cable output [W@°C] | 140W@10°C |
| Cable screen | Alufoil 100% |
| Cable type | Twin conductor |
| Cable width [mm] | 7.7 mm |
| Certification company | CE EAC UkrTEST |
| Cold lead | Yes |
| Cold lead conductor quantity | 3 |
| Cold lead length [m] | 2 m |
| Cold lead quantity | 1 |
| Conductor insulation | Cross linked polyolefin |
| Conductor type | Tinned copper |
| Cut to length | No |
| Description | ECpipeheat 10 w/plug V2 14m 140W@10°C 230V |
| Element IP Class | IPX7 |
| Filler material | TPE |
| Heating principle | Self-limiting |
| In scope of WEEE and contain batteries | No |
| Installation temperature [°C] [Min] | -5 °C |
| Non operating temperature [°C] [Max] | 65 °C |
| Operating temperature [°C] [max] | 65 °C |
| Outer sheath | TPE |
| Outer sheath colour | Light blue |
| Product group | Heating Cables |
| Product version | Ready-made |
| Supply voltage [V] AC | 230 V |
| Type | ECpipeheat 10 V2 readym. |
| UNSPSC CODE | 40101830 |
| Warranty [Year] | 5 |
| Warranty type | 5-year product warranty |
Datasheet - PDF
