DANFOSS HEATING088L0224 DANFOSS HEATING ECmat 100T 6m² 230V 600W

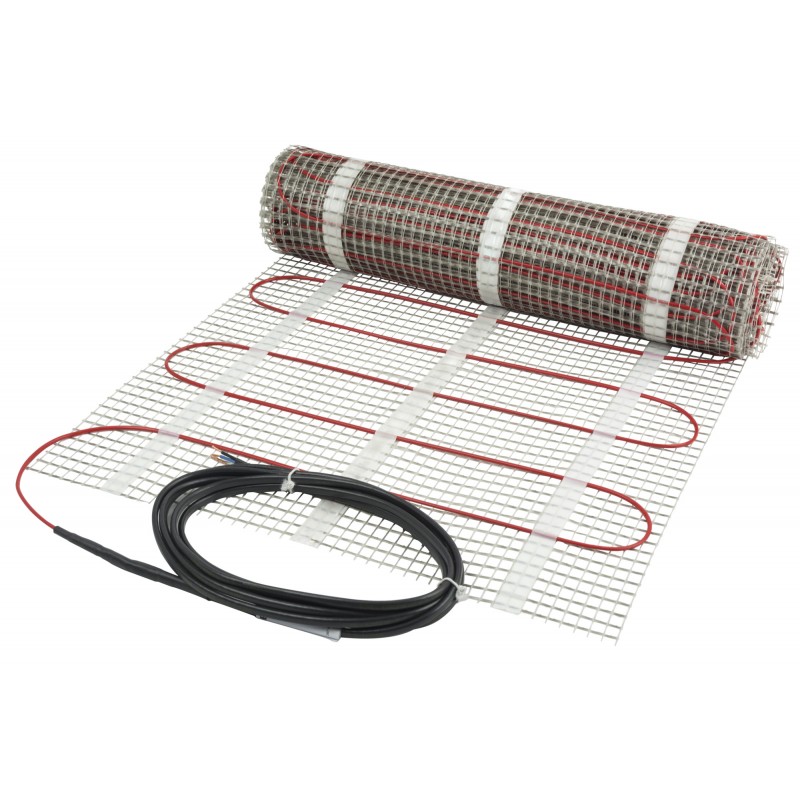

DANFOSS HEATING 088L0224 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

088L0224 DANFOSS HEATING ECmat 100T 6m² 230V 600W

Code: 088L0224

Manufacturer: DANFOSS HEATING

Description:

ECmat 100T 6m² 230V 600W
Heating Mats, ECmat 100T, 100 W/m², 6.00 m², Supply voltage [V] AC: 230

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 659,68 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Cable type: Twin conductor, Set accessories: Flexpipe ø6.7 2.5m Black, Mat width [m]: 0.5, Mat length [m]: 12, Application: Floor heating

Product details

Gross weight2.89 Kilogram
Net weight2.59 Kilogram
Volume49.608 Liter
EAN5703466120163
TypeECmat 100T
Product groupHeating Mats
Gross weight2.89 Kilogram
Net weight2.59 Kilogram
Volume49.608 Liter
EAN5703466120163
TypeECmat 100T
Product groupHeating Mats

ApplicationFloor heating
ApprovalCE
Cable diameter [mm]3 mm
Cable resistance [Ohm]88.2 Ohm
Cable screenAlufoil 100%
Cable typeTwin conductor
CE evaluatedYes
Certification companyIntertek Semko
China RoHS complianceYes
Cold leadYes
Cold lead conductor quantity2
Cold lead length [m]4 m
Cold lead quantity1
Cold lead size [mm²]1 mm²
Cold lead typeDTWB
Conductor insulationFEP
Contains batteriesNo
Coverage area [m²]6 m²
Deformation strength [N]600 N
DescriptionECmat 100T 600W 230V 0,5x12m
Element IP ClassIPX7
EPD availableYes
EU RoHS complianceYes
Flame retardantYes
Heating output [W]600 W
Heating principleSerial resistive
Installation temperature [°C] [Min]-5 °C
Lead freeYes
Mat length [m]12 m
Mat output [W/m²]100 W/m²
Mat width [m]0.5 m
Non operating temperature [°C] [Max]120 °C
Operating temperature [°C] [max]115 °C
Outer sheathPVDF
Outer sheath colourRed
Package depth [mm]220 mm
Package height [mm]590 mm
Package width [mm]220 mm
Product descriptionECmat 100T
Pulling strength [N]120 N
REACH Candidate List substancesNo
Set accessoriesFlexpipe ø6.7 2.5m Black
Supply voltage [V] AC230 V
Thickness [mm]3.5 mm
UL evaluatedOut of scope
UV ProtectedNo
Warranty [Year]20
Warranty type20-year full service warranty
ApplicationFloor heating
ApprovalCE
Cable diameter [mm]3 mm
Cable resistance [Ohm]88.2 Ohm
Cable screenAlufoil 100%
Cable typeTwin conductor
CE evaluatedYes
Certification companyIntertek Semko
China RoHS complianceYes
Cold leadYes
Cold lead conductor quantity2
Cold lead length [m]4 m
Cold lead quantity1
Cold lead size [mm²]1 mm²
Cold lead typeDTWB
Conductor insulationFEP
Contains batteriesNo
Coverage area [m²]6 m²
Deformation strength [N]600 N
DescriptionECmat 100T 600W 230V 0,5x12m
Element IP ClassIPX7
EPD availableYes
EU RoHS complianceYes
Flame retardantYes
Heating output [W]600 W
Heating principleSerial resistive
Installation temperature [°C] [Min]-5 °C
Lead freeYes
Mat length [m]12 m
Mat output [W/m²]100 W/m²
Mat width [m]0.5 m
Non operating temperature [°C] [Max]120 °C
Operating temperature [°C] [max]115 °C
Outer sheathPVDF
Outer sheath colourRed
Package depth [mm]220 mm
Package height [mm]590 mm
Package width [mm]220 mm
Product descriptionECmat 100T
Pulling strength [N]120 N
REACH Candidate List substancesNo
Set accessoriesFlexpipe ø6.7 2.5m Black
Supply voltage [V] AC230 V
Thickness [mm]3.5 mm
UL evaluatedOut of scope
UV ProtectedNo
Warranty [Year]20
Warranty type20-year full service warranty
