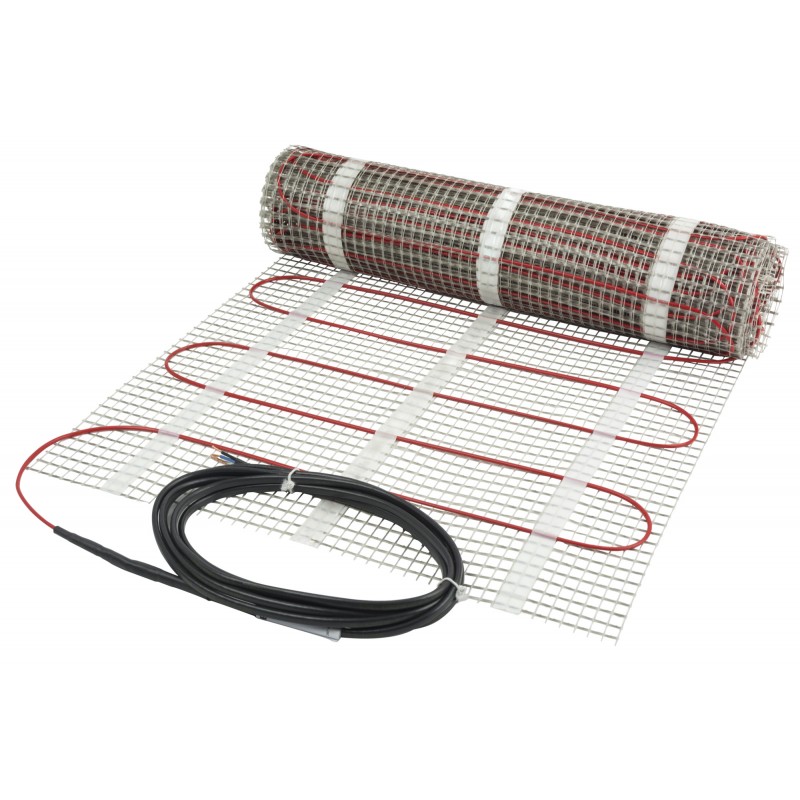

088L0203 DANFOSS HEATING ECmat 150T 2м² 230 В 300 Вт
088L0203
DANFOSS HEATING
ECmat 150T 2м² 230 В 300 Вт
Heating Mats, ECmat 150T, 150 W/m², 2.00 m², Supply voltage [V] AC: 230
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Cable type: Twin conductor, Set accessories: No, Mat width [m]: 0.5, Mat length [m]: 4.00, Application: Floor heating
Product details
| Gross weight | 1.624 Kg |
| Net weight | 1.604 Kg |
| Volume | 12.72 Liter |
| EAN | 5703466117750 |
| Gross weight | 1.624 Kg |
| Net weight | 1.604 Kg |
| Volume | 12.72 Liter |
| EAN | 5703466117750 |
| Application | Floor heating |
| Approval | CE |
| Cable diameter [mm] | 3 mm |
| Cable resistance [Ohm] | 176 |
| Cable screen | Alufoil 100% |
| Cable type | Twin conductor |
| Certification company | Intertek Semko |
| Cold lead | Yes |
| Cold lead conductor quantity | 2 |
| Cold lead length [m] | 4 m |
| Cold lead quantity | 1 |
| Cold lead size [mm²] | 1 mm² |
| Cold lead type | DTWB |
| Conductor insulation | FEP |
| Coverage area [m²] | 2 m² |
| Deformation strength [N] | 600 N |
| Description | ECmat 150T 300W 230V 0.5x4m |
| Element IP Class | IPX7 |
| Flame retardant | Yes |
| Heating output [W] | 300 W |
| Heating principle | Serial resistive |
| In scope of WEEE and contain batteries | No |
| Installation temperature [°C] [Min] | -5 °C |
| Lead free | Yes |
| Mat length [m] | 4 m |
| Mat output [W/m²] | 150 W/m² |
| Mat width [m] | 0.5 m |
| Non operating temperature [°C] [Max] | 120 °C |
| Operating temperature [°C] [max] | 115 °C |
| Outer sheath | PVDF |
| Outer sheath colour | Red |
| Package depth [mm] | 145 mm |
| Package height [mm] | 605 mm |
| Package width [mm] | 145 mm |
| Product description | ECmat 150T |
| Product group | Heating Mats |
| Pulling strength [N] | 120 N |
| Set accessories | No |
| Supply voltage [V] AC | 230 V |
| Thickness [mm] | 3.5 mm |
| Type | ECmat 150T |
| UNSPSC CODE | 40101830 |
| UV Protected | No |
| Warranty [Year] | 20 |
| Warranty type | 20-year full service warranty |
| Application | Floor heating |
| Approval | CE |
| Cable diameter [mm] | 3 mm |
| Cable resistance [Ohm] | 176 |
| Cable screen | Alufoil 100% |
| Cable type | Twin conductor |
| Certification company | Intertek Semko |
| Cold lead | Yes |
| Cold lead conductor quantity | 2 |
| Cold lead length [m] | 4 m |
| Cold lead quantity | 1 |
| Cold lead size [mm²] | 1 mm² |
| Cold lead type | DTWB |
| Conductor insulation | FEP |
| Coverage area [m²] | 2 m² |
| Deformation strength [N] | 600 N |
| Description | ECmat 150T 300W 230V 0.5x4m |
| Element IP Class | IPX7 |
| Flame retardant | Yes |
| Heating output [W] | 300 W |
| Heating principle | Serial resistive |
| In scope of WEEE and contain batteries | No |
| Installation temperature [°C] [Min] | -5 °C |
| Lead free | Yes |
| Mat length [m] | 4 m |
| Mat output [W/m²] | 150 W/m² |
| Mat width [m] | 0.5 m |
| Non operating temperature [°C] [Max] | 120 °C |
| Operating temperature [°C] [max] | 115 °C |
| Outer sheath | PVDF |
| Outer sheath colour | Red |
| Package depth [mm] | 145 mm |
| Package height [mm] | 605 mm |
| Package width [mm] | 145 mm |
| Product description | ECmat 150T |
| Product group | Heating Mats |
| Pulling strength [N] | 120 N |
| Set accessories | No |
| Supply voltage [V] AC | 230 V |
| Thickness [mm] | 3.5 mm |
| Type | ECmat 150T |
| UNSPSC CODE | 40101830 |
| UV Protected | No |
| Warranty [Year] | 20 |
| Warranty type | 20-year full service warranty |
