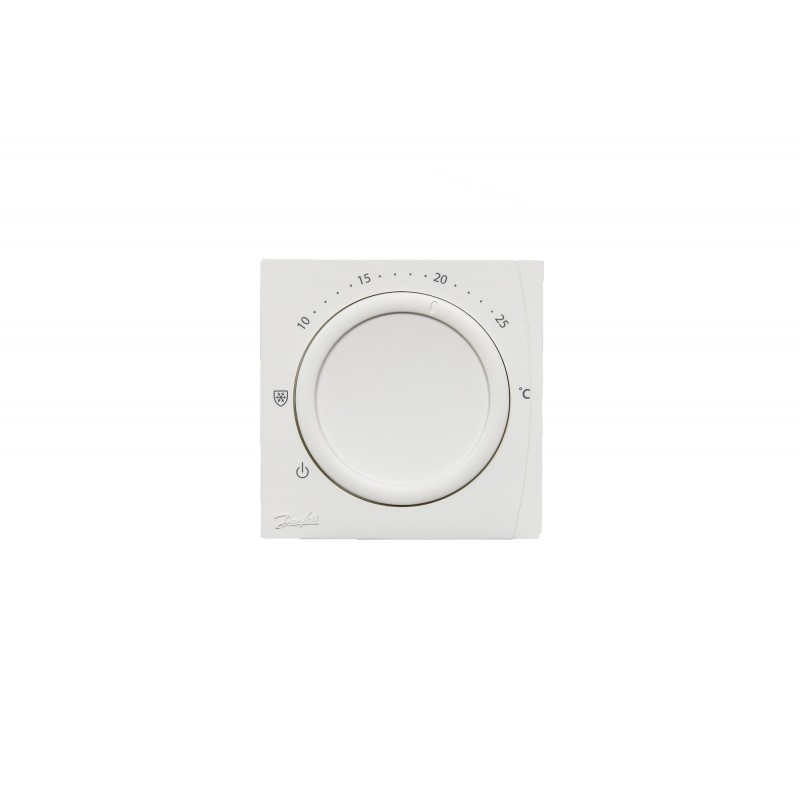

087N6460 DANFOSS HEATING RET1001M Dial Stat 230 В
087N6460
DANFOSS HEATING
RET1001M Dial Stat 230 В
RET1001M, 230Vac
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲RET1001M,Mains powered dial room electronic thermostat
Product details
| Gross weight | 0.176 Kg |
| Net weight | 0.106 Kg |
| Volume | 0.65 Liter |
| EAN | 5702425239335 |
| Gross weight | 0.176 Kg |
| Net weight | 0.106 Kg |
| Volume | 0.65 Liter |
| EAN | 5702425239335 |
| Ambient temperature [°C] [max] | 40 °C |
| Application | Room heating |
| Approval | CE UKCA |
| Approvals | CE UKCA |
| Backplate | Custom Backplate |
| Ball hardness test [°C] | 75 °C |
| Category name | Dial Thermostat |
| Colour | White RAL 9010 |
| Control pollution | Degree 2 |
| Control type | On/Off modulating control |
| Depth [mm] | 30 mm |
| Description | RET1001M,Mains powered dial room electronic thermostat |
| Design standard | EN 60730-2-9 |
| Frequency [Hz] | 50/60 Hz |
| Frost protection | Yes |
| Height [mm] | 86 mm |
| Installation | 3 Wire Installation |
| Label product | Yes |
| Material | ABS+PC, non-flammable |
| Media | A |
| Number of channels | 1 |
| On/Off control | Yes |
| Output relay rating inductive [A] | 1 A |
| Output relay rating resistive [A] | 3 A |
| Product description | RET1001M |
| Product group | Room Thermostats, RET |
| REACH Candidate List substances | No |
| Status indicator | Yes |
| Supply Type | 230Vac |
| Switch type | SPDT |
| Temperature limiter [°C] [Max] | 35 °C |
| Temperature limiter [°C] [Min] | 5 °C |
| Tolerance | ±10% |
| Type | RET1001 |
| UNSPSC CODE | 41112209 |
| Warranty [Year] | 2 |
| Width [mm] | 86 mm |
| Ambient temperature [°C] [max] | 40 °C |
| Application | Room heating |
| Approval | CE UKCA |
| Approvals | CE UKCA |
| Backplate | Custom Backplate |
| Ball hardness test [°C] | 75 °C |
| Category name | Dial Thermostat |
| Colour | White RAL 9010 |
| Control pollution | Degree 2 |
| Control type | On/Off modulating control |
| Depth [mm] | 30 mm |
| Description | RET1001M,Mains powered dial room electronic thermostat |
| Design standard | EN 60730-2-9 |
| Frequency [Hz] | 50/60 Hz |
| Frost protection | Yes |
| Height [mm] | 86 mm |
| Installation | 3 Wire Installation |
| Label product | Yes |
| Material | ABS+PC, non-flammable |
| Media | A |
| Number of channels | 1 |
| On/Off control | Yes |
| Output relay rating inductive [A] | 1 A |
| Output relay rating resistive [A] | 3 A |
| Product description | RET1001M |
| Product group | Room Thermostats, RET |
| REACH Candidate List substances | No |
| Status indicator | Yes |
| Supply Type | 230Vac |
| Switch type | SPDT |
| Temperature limiter [°C] [Max] | 35 °C |
| Temperature limiter [°C] [Min] | 5 °C |
| Tolerance | ±10% |
| Type | RET1001 |
| UNSPSC CODE | 41112209 |
| Warranty [Year] | 2 |
| Width [mm] | 86 mm |
Datasheet - PDF
