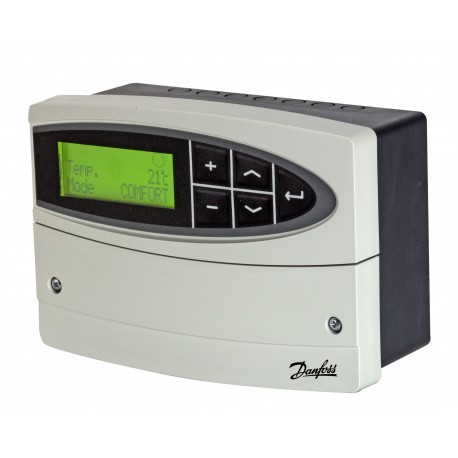

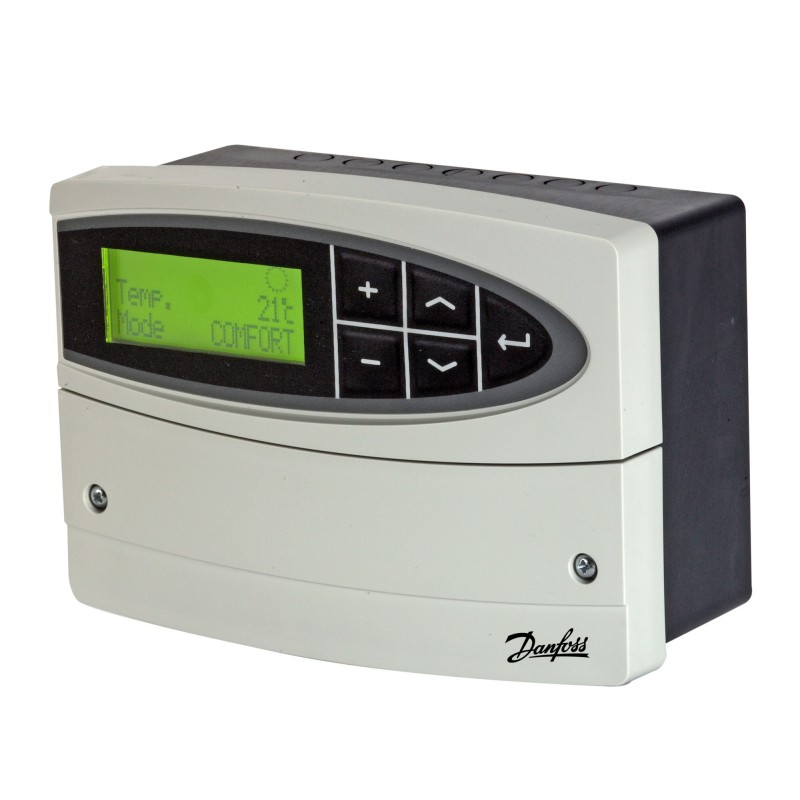

087B1262 DANFOSS HEATING ECL Comfort 110, 230 В, с таймером
087B1262
DANFOSS HEATING
ECL Comfort 110, 230 В, с таймером
ECL Comfort 110, Supply voltage [V] AC: 207 - 244, Time switch type: Week
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲ECL Comfort 110, 230 V, with timer programe
Product details
| Gross weight | 0.56 Kg |
| Net weight | 0.404 Kg |
| Volume | 2.155 Liter |
| EAN | 5702421067734 |
| Gross weight | 0.56 Kg |
| Net weight | 0.404 Kg |
| Volume | 2.155 Liter |
| EAN | 5702421067734 |
| Actuator output load [VA] | 15 VA |
| Ambient humidity [% RH] [Max] | 65 % |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application source | On-board |
| Approval | CE |
| Approval standard | EMC-Directive: 2004/108/EC Emission: EN 61000-6-3:2007 Immunity: EN 61000-6-1:2007 LVD directive 2006/95/EC |
| Communications | ECL-Bus (non-galvanically isolated) |
| Description | ECL Comfort 110, 230 V, with timer programe |
| DHW functions | Auto-tunning Return temperature influence |
| Display type | LCD custom design |
| General functions | Circulation pump exercise Control valve exercise External override facility Frost protection Master - Slave network Motor protection Remote control connection |
| Grade of enclosure | IP41 |
| Heat curve setting for heating circuit | Slope |
| In scope of WEEE and contain batteries | No |
| Number of 3-point motor control outputs | 1 |
| Number of comfort periods per day | 2 |
| Number of DHW circuits | 1 |
| Number of digital inputs | 1 |
| Number of heating circuits | 1 |
| Number of pumps | 1 |
| Number of relay outputs | 1 |
| Number of Sensor inputs | 4 pc |
| Power consumption [W] | 3 W |
| Product group | Electronic controllers |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Relay output inductive load [A] | 2 A |
| Relay output ohmic load [A] | 4 A |
| Relay output voltage [V] AC | 230 V |
| Sensor cable length [m] | 125 m |
| Sensor cable length [mm] | 125 mm |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Supply voltage [V] AC | 230 V |
| Supply voltage [V] AC [max] | 244 V |
| Supply voltage [V] AC [min] | 207 V |
| Supply voltage frequency [Hz] | 50 Hz |
| Temperature sensors type | Pt 1000 |
| Time switch power backup [h] | 12 h |
| Time switch type | Week |
| Type | ECL Comfort 110 |
| User input type | Display Push buttons |
| Actuator output load [VA] | 15 VA |
| Ambient humidity [% RH] [Max] | 65 % |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application source | On-board |
| Approval | CE |
| Approval standard | EMC-Directive: 2004/108/EC Emission: EN 61000-6-3:2007 Immunity: EN 61000-6-1:2007 LVD directive 2006/95/EC |
| Communications | ECL-Bus (non-galvanically isolated) |
| Description | ECL Comfort 110, 230 V, with timer programe |
| DHW functions | Auto-tunning Return temperature influence |
| Display type | LCD custom design |
| General functions | Circulation pump exercise Control valve exercise External override facility Frost protection Master - Slave network Motor protection Remote control connection |
| Grade of enclosure | IP41 |
| Heat curve setting for heating circuit | Slope |
| In scope of WEEE and contain batteries | No |
| Number of 3-point motor control outputs | 1 |
| Number of comfort periods per day | 2 |
| Number of DHW circuits | 1 |
| Number of digital inputs | 1 |
| Number of heating circuits | 1 |
| Number of pumps | 1 |
| Number of relay outputs | 1 |
| Number of Sensor inputs | 4 pc |
| Power consumption [W] | 3 W |
| Product group | Electronic controllers |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Relay output inductive load [A] | 2 A |
| Relay output ohmic load [A] | 4 A |
| Relay output voltage [V] AC | 230 V |
| Sensor cable length [m] | 125 m |
| Sensor cable length [mm] | 125 mm |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Supply voltage [V] AC | 230 V |
| Supply voltage [V] AC [max] | 244 V |
| Supply voltage [V] AC [min] | 207 V |
| Supply voltage frequency [Hz] | 50 Hz |
| Temperature sensors type | Pt 1000 |
| Time switch power backup [h] | 12 h |
| Time switch type | Week |
| Type | ECL Comfort 110 |
| User input type | Display Push buttons |
Datasheet - PDF
