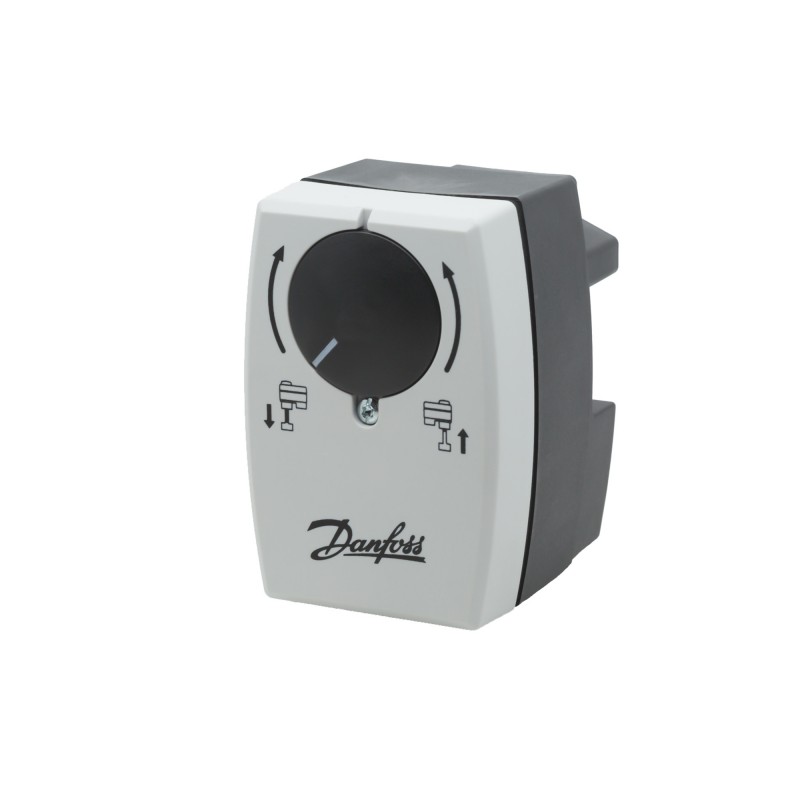

082H5006 DANFOSS HEATING АМЕ 13 СУ 1
082H5006
DANFOSS HEATING
АМЕ 13 СУ - 1
AME 13 SU-1, Supply voltage [V] AC: 24, 12 s/mm, 5.50 mm
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲AME 13 SU-1, 24 V, 5 mm, UL certified actuator with Spring Up Safety function for modulating control for AB-QM DN 10-32
Product details
| Gross weight | 0.99 Kg |
| Net weight | 0.835 Kg |
| Volume | 1.755 Liter |
| EAN | 5710104094298 |
| Gross weight | 0.99 Kg |
| Net weight | 0.835 Kg |
| Volume | 1.755 Liter |
| EAN | 5710104094298 |
| Actuator speed [s/mm] | 12 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | Heating and cooling |
| Approval standard | UL 60730 |
| Cable included | No |
| Closing force [N] | 300 N |
| Compatibility with AB-QM size | ½-1¼” |
| Control characteristic | LIN LOG |
| Control input signal Y [mA] | 0(4) - 20 mA |
| Control input signal Y [V] | 0(2) - 10 V |
| Control signal type | Modulating/3-point |
| Description | AME 13 SU-1, 24 V, 5 mm, UL certified actuator with Spring Up Safety function for modulating control for AB-QM DN 10-32 |
| Frequency [Hz] | 50/60 Hz |
| Grade of enclosure | IP54 |
| In scope of WEEE and contain batteries | No |
| IP protection class | IP 54 |
| Operating torque [Nm] | 300 N-m |
| Power consumption [W] | 9 W |
| Product group | Gear actuators |
| Protection Class | II |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Safety function | Spring up |
| SCIP dossier no. | c590a8c0-b0bc-411b-b1a0-d05b04efee26 |
| SCIP dossier product name | AME 13 |
| Spindle speed [s/mm] | 12 s/mm |
| Spring down (return) | No |
| Spring up | Yes |
| Stroke [mm] | 5.5 mm |
| Supply voltage [V] AC | 24 V |
| Type | AME 13 SU-1 |
| Actuator speed [s/mm] | 12 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | Heating and cooling |
| Approval standard | UL 60730 |
| Cable included | No |
| Closing force [N] | 300 N |
| Compatibility with AB-QM size | ½-1¼” |
| Control characteristic | LIN LOG |
| Control input signal Y [mA] | 0(4) - 20 mA |
| Control input signal Y [V] | 0(2) - 10 V |
| Control signal type | Modulating/3-point |
| Description | AME 13 SU-1, 24 V, 5 mm, UL certified actuator with Spring Up Safety function for modulating control for AB-QM DN 10-32 |
| Frequency [Hz] | 50/60 Hz |
| Grade of enclosure | IP54 |
| In scope of WEEE and contain batteries | No |
| IP protection class | IP 54 |
| Operating torque [Nm] | 300 N-m |
| Power consumption [W] | 9 W |
| Product group | Gear actuators |
| Protection Class | II |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Safety function | Spring up |
| SCIP dossier no. | c590a8c0-b0bc-411b-b1a0-d05b04efee26 |
| SCIP dossier product name | AME 13 |
| Spindle speed [s/mm] | 12 s/mm |
| Spring down (return) | No |
| Spring up | Yes |
| Stroke [mm] | 5.5 mm |
| Supply voltage [V] AC | 24 V |
| Type | AME 13 SU-1 |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
