DANFOSS HEATING082G3455 DANFOSS HEATING AME 659 SD 230V

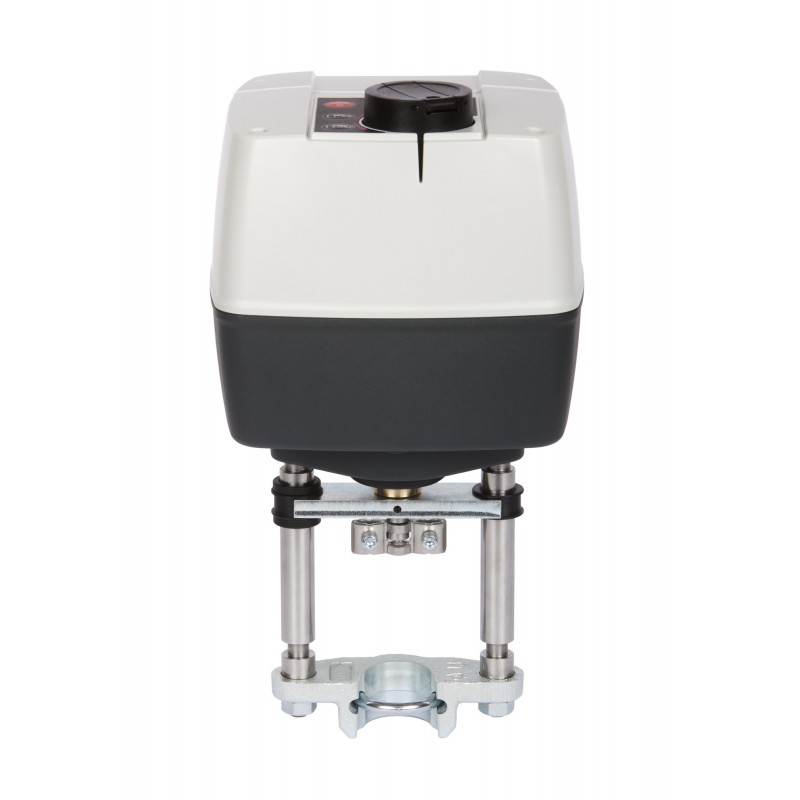

DANFOSS HEATING 082G3455 082G3455 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

082G3455 DANFOSS HEATING AME 659 SD 230V

Reference: 082G3455

Manufacturer: DANFOSS HEATING

Description:

AME 659 SD 230V
Electrical actuators, AME 659 SD, Supply voltage [V] AC: 230

Categories:

  • DANFOSS HEATING

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 1.832,03 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 10 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

AME 659 SD 110-230V 2-6s/mm 50mm 2000N

Product details

Gross weight9.778 Kilogram
Net weight9.778 Kilogram
Volume18.296 Liter
EAN5710104030470
TypeAME 659 SD
Product groupElectrical actuators
Gross weight9.778 Kilogram
Net weight9.778 Kilogram
Volume18.296 Liter
EAN5710104030470
TypeAME 659 SD
Product groupElectrical actuators

Actuator speed [s/mm]2 s/mm
6 s/mm
Actuator typeElectrical
Ambient temperature [°C] [max]55 °C
Ambient temperature [°C] [min]0 °C
ApplicationHD District Heating
Closing force [N]2000 N
Contains batteriesNo
Control input signal Y [mA]0(4) - 20 mA
Control input signal Y [mA], impedance [Ohm]500 Ohm
Control input signal Y [V]0(2) - 10 V
Control input signal Y [V], impedance [kOhm]40 kOhm
Control signal typeModulating/3-point
DescriptionAME 659 SD 110-230V 2-6s/mm 50mm 2000N
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Frequency [Hz]50/60
Grade of enclosureIP54
Manual operationNo
Position feedbackyes
Power consumption [W]38 W
Protection Class of the CoatingII
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Safety functionYes
SCIP dossier no.1383b0ac-9597-4acd-8949-becd4eb06779
SCIP dossier product nameAMV(E) 65x/685/855_1
Speed typeStandard
Spring down (return)Yes
Spring upNo
Storage temperature [°C] [Max]70 °C
Storage temperature [°C] [Min]-40 °C
Stroke [mm]50 mm
Supply voltage [V] AC230 V
Actuator speed [s/mm]2 s/mm
6 s/mm
Actuator typeElectrical
Ambient temperature [°C] [max]55 °C
Ambient temperature [°C] [min]0 °C
ApplicationHD District Heating
Closing force [N]2000 N
Contains batteriesNo
Control input signal Y [mA]0(4) - 20 mA
Control input signal Y [mA], impedance [Ohm]500 Ohm
Control input signal Y [V]0(2) - 10 V
Control input signal Y [V], impedance [kOhm]40 kOhm
Control signal typeModulating/3-point
DescriptionAME 659 SD 110-230V 2-6s/mm 50mm 2000N
EU RoHS complianceYes with exemptions
EU RoHS exemption clause6(c)
Frequency [Hz]50/60
Grade of enclosureIP54
Manual operationNo
Position feedbackyes
Power consumption [W]38 W
Protection Class of the CoatingII
REACH Candidate List substancesLead (CAS no. 7439-92-1)
Safety functionYes
SCIP dossier no.1383b0ac-9597-4acd-8949-becd4eb06779
SCIP dossier product nameAMV(E) 65x/685/855_1
Speed typeStandard
Spring down (return)Yes
Spring upNo
Storage temperature [°C] [Max]70 °C
Storage temperature [°C] [Min]-40 °C
Stroke [mm]50 mm
Supply voltage [V] AC230 V

DATASHEET - PDF

Title
Size
Type
082G3455 082G3455 ES_065B3527.pdf
2 Mbytes
PDF CATALOGUE DANFOSS HEATING EN
11 Mbytes
