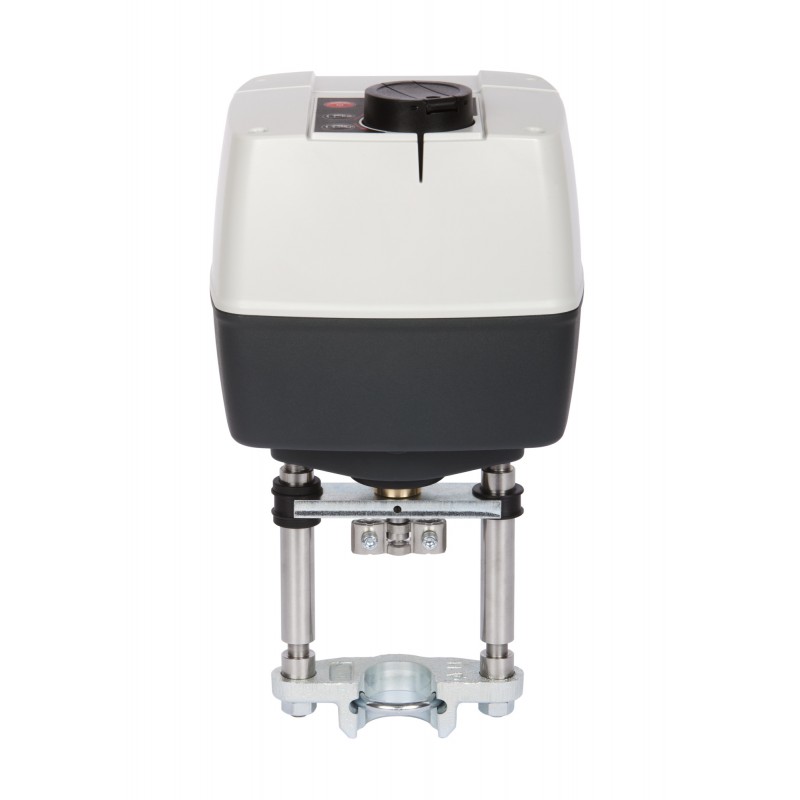

082G3438 DANFOSS HEATING AME 655 230 В GA
082G3438
DANFOSS HEATING
AME 655 230 В GA
Electrical actuators, AME 655 GA, Supply voltage [V] AC: 230, Supply voltage [V] DC: 230
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲AME 655 230V GA
Product details
| Gross weight | 6.44 Kg |
| Net weight | 6.425 Kg |
| Volume | 18.335 Liter |
| EAN | 5702425102363 |
| Gross weight | 6.44 Kg |
| Net weight | 6.425 Kg |
| Volume | 18.335 Liter |
| EAN | 5702425102363 |
| Actuator speed [s/mm] | 2 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | HD District Heating |
| Closing force [N] | 2000 N |
| Control input signal Y [mA] | 0(4) - 20 mA |
| Control input signal Y [mA], impedance [Ohm] | 500 |
| Control input signal Y [V] | 0(2) - 10 V |
| Control input signal Y [V], impedance [kOhm] | 40 kOhm |
| Control signal type | Modulating/3-point |
| Description | AME 655 230V GA |
| Frequency [Hz] | 50/60 |
| Grade of enclosure | IP54 |
| In scope of WEEE and contain batteries | No |
| Manual operation | Yes |
| Media temperature [°C] [Max] | 200 °C |
| Position feedback | yes |
| Power consumption [W] | 16 W |
| Product group | Electrical actuators |
| Protection Class | II |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Safety function | No |
| SCIP dossier no. | 38d9fd19-a526-49ad-8808-aa95a279a87e |
| SCIP dossier product name | AMV(E) 65x/685/855 |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 50 mm |
| Supply voltage [V] AC | 230 V |
| Supply voltage [V] DC | 230 V |
| Type | AME 655 GA |
| Actuator speed [s/mm] | 2 s/mm |
| Actuator type | Electrical |
| Ambient temperature [°C] [max] | 55 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Application | HD District Heating |
| Closing force [N] | 2000 N |
| Control input signal Y [mA] | 0(4) - 20 mA |
| Control input signal Y [mA], impedance [Ohm] | 500 |
| Control input signal Y [V] | 0(2) - 10 V |
| Control input signal Y [V], impedance [kOhm] | 40 kOhm |
| Control signal type | Modulating/3-point |
| Description | AME 655 230V GA |
| Frequency [Hz] | 50/60 |
| Grade of enclosure | IP54 |
| In scope of WEEE and contain batteries | No |
| Manual operation | Yes |
| Media temperature [°C] [Max] | 200 °C |
| Position feedback | yes |
| Power consumption [W] | 16 W |
| Product group | Electrical actuators |
| Protection Class | II |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Safety function | No |
| SCIP dossier no. | 38d9fd19-a526-49ad-8808-aa95a279a87e |
| SCIP dossier product name | AMV(E) 65x/685/855 |
| Speed type | Standard |
| Spring down (return) | No |
| Spring up | No |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -40 °C |
| Stroke [mm] | 50 mm |
| Supply voltage [V] AC | 230 V |
| Supply voltage [V] DC | 230 V |
| Type | AME 655 GA |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
