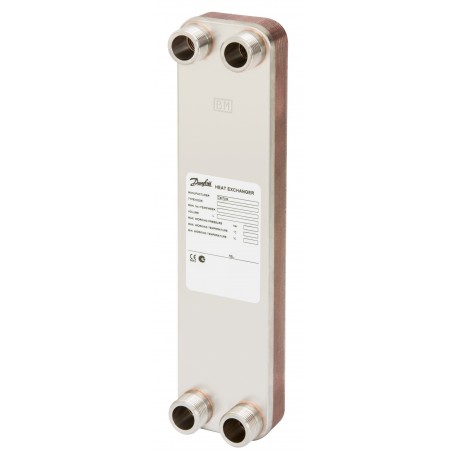

079G1245 DANFOSS HEATING ХВ05С-1-26 2StS 10 S1 2G3/4
079G1245
DANFOSS HEATING
ХВ05С-1-26_2StS_10_S1_2G3/4
ХБ05Х-1-26_2STS_10_A_2G3/4

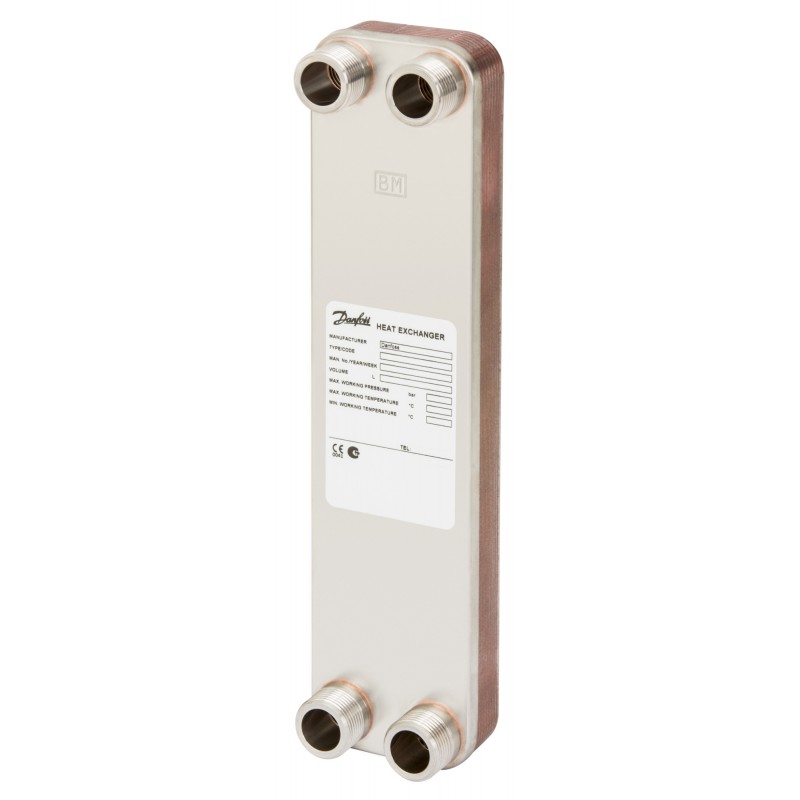

Micro Plate heat exchanger, XB05X-1, Number of plates: 26
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Brazing material: Stainless steel, 10 bar
Product details
| Gross weight | 1.946 Kg |
| Net weight | 1.726 Kg |
| Volume | 1.601 Liter |
| EAN | 5714279005905 |
| Gross weight | 1.946 Kg |
| Net weight | 1.726 Kg |
| Volume | 1.601 Liter |
| EAN | 5714279005905 |
| Approval | PED |
| Brazing material | Stainless steel |
| Connection length 1 [mm] | 20 mm |
| Connection length 2 [mm] | 20 mm |
| Connection length side 1 [mm] | 20 mm |
| Connection length side 2 [mm] | 20 mm |
| Connection size 1 | 3/4 |
| Connection size 2 | 3/4 |
| Connection standard | DIN ISO 228/1 |
| Connection type 1 | G |
| Connection type 2 | G |
| Fluid Group | 1 |
| Horizontal center porthole[mm] | 42 mm |
| In scope of WEEE and contain batteries | No |
| Material Description (Short Te | XB05X-1-26_2STS_10_A_2G3/4 |
| Max working pressure 1 [bar] | 10 bar |
| Max working pressure 2 [bar] | 10 bar |
| Number of passes | 1 |
| Number of plates | 26 |
| Packing format | Single pack |
| PED category | Art. 4, par. 3 |
| Plate material no. | 1.4404 |
| Plate material no. | 1.4404 |
| Plate pattern | X |
| Product group | Heat exchangers |
| Product Name Description | Micro Plate heat exchanger |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -10 °C |
| Total height without feet [mm] | 312 mm |
| Total width [mm] | 76 mm |
| Type | XB05X-1 |
| Vertical center porthole 1[mm] | 278 mm |
| Vertical center porthole 2[mm] | 278 mm |
| Vertical center porthole side 1 [mm] | 278 mm |
| Volume per channel 1 [l] | 0.037 L |
| Volume per channel 2 [l] | 0.026 L |
| Approval | PED |
| Brazing material | Stainless steel |
| Connection length 1 [mm] | 20 mm |
| Connection length 2 [mm] | 20 mm |
| Connection length side 1 [mm] | 20 mm |
| Connection length side 2 [mm] | 20 mm |
| Connection size 1 | 3/4 |
| Connection size 2 | 3/4 |
| Connection standard | DIN ISO 228/1 |
| Connection type 1 | G |
| Connection type 2 | G |
| Fluid Group | 1 |
| Horizontal center porthole[mm] | 42 mm |
| In scope of WEEE and contain batteries | No |
| Material Description (Short Te | XB05X-1-26_2STS_10_A_2G3/4 |
| Max working pressure 1 [bar] | 10 bar |
| Max working pressure 2 [bar] | 10 bar |
| Number of passes | 1 |
| Number of plates | 26 |
| Packing format | Single pack |
| PED category | Art. 4, par. 3 |
| Plate material no. | 1.4404 |
| Plate material no. | 1.4404 |
| Plate pattern | X |
| Product group | Heat exchangers |
| Product Name Description | Micro Plate heat exchanger |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Temperature range [°C] [max] | 150 °C |
| Temperature range [°C] [min] | -10 °C |
| Total height without feet [mm] | 312 mm |
| Total width [mm] | 76 mm |
| Type | XB05X-1 |
| Vertical center porthole 1[mm] | 278 mm |
| Vertical center porthole 2[mm] | 278 mm |
| Vertical center porthole side 1 [mm] | 278 mm |
| Volume per channel 1 [l] | 0.037 L |
| Volume per channel 2 [l] | 0.026 L |
