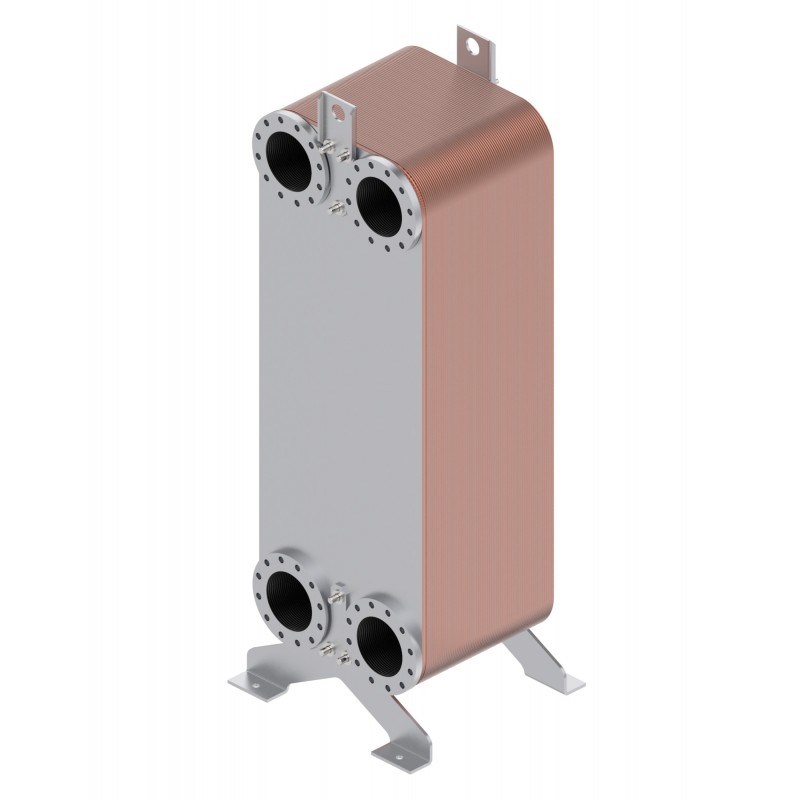

079G1020 DANFOSS HEATING ХВ71Н-1-280 2Cu 25 S1 2DN100 SB
079G1020
DANFOSS HEATING
ХВ71Н-1-280_2Cu_25_S1_2DN100_SB
ХБ71Н-1-280_2_25_A_DN100
Micro Plate heat exchanger, XB71H-1, Number of plates: 280
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Brazing material: Copper, 25 bar
Product details
| Gross weight | 417.5 Kg |
| Net weight | 343 Kg |
| Volume | 249.99 Liter |
| EAN | 5702425145988 |
| Gross weight | 417.5 Kg |
| Net weight | 343 Kg |
| Volume | 249.99 Liter |
| EAN | 5702425145988 |
| Approval | PED |
| Brazing material | Copper |
| Connection length 1 [mm] | 0 mm |
| Connection length 2 [mm] | 0 mm |
| Connection length side 1 [mm] | 0 mm |
| Connection length side 2 [mm] | 0 mm |
| Connection size 1 | DN100 |
| Connection size 2 | DN100 |
| Connection type 1 | FLANGE |
| Connection type 2 | FLANGE |
| Fluid Group | 2 |
| Horizontal center porthole[mm] | 206 mm |
| In scope of WEEE and contain batteries | No |
| Material Description (Short Te | XB71H-1-280_2_25_A_DN100 |
| Max working pressure 1 [bar] | 25 bar |
| Max working pressure 2 [bar] | 25 bar |
| Number of passes | 1 |
| Number of plates | 280 |
| Packing format | Single pack |
| PED category | III |
| Plate material no. | 1.4404 |
| Plate material no. | 1.4404 |
| Plate pattern | H |
| Product group | Heat exchangers |
| Product Name Description | Micro Plate heat exchanger |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Temperature range [°C] [max] | 180 °C |
| Temperature range [°C] [min] | -10 °C |
| Total height without feet [mm] | 973 mm |
| Total width [mm] | 373 mm |
| Type | XB71H-1 |
| Vertical center porthole 1[mm] | 816 mm |
| Vertical center porthole 2[mm] | 816 mm |
| Vertical center porthole side 1 [mm] | 816 mm |
| Volume per channel 1 [l] | 0.836 L |
| Volume per channel 2 [l] | 0.836 L |
| Approval | PED |
| Brazing material | Copper |
| Connection length 1 [mm] | 0 mm |
| Connection length 2 [mm] | 0 mm |
| Connection length side 1 [mm] | 0 mm |
| Connection length side 2 [mm] | 0 mm |
| Connection size 1 | DN100 |
| Connection size 2 | DN100 |
| Connection type 1 | FLANGE |
| Connection type 2 | FLANGE |
| Fluid Group | 2 |
| Horizontal center porthole[mm] | 206 mm |
| In scope of WEEE and contain batteries | No |
| Material Description (Short Te | XB71H-1-280_2_25_A_DN100 |
| Max working pressure 1 [bar] | 25 bar |
| Max working pressure 2 [bar] | 25 bar |
| Number of passes | 1 |
| Number of plates | 280 |
| Packing format | Single pack |
| PED category | III |
| Plate material no. | 1.4404 |
| Plate material no. | 1.4404 |
| Plate pattern | H |
| Product group | Heat exchangers |
| Product Name Description | Micro Plate heat exchanger |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Temperature range [°C] [max] | 180 °C |
| Temperature range [°C] [min] | -10 °C |
| Total height without feet [mm] | 973 mm |
| Total width [mm] | 373 mm |
| Type | XB71H-1 |
| Vertical center porthole 1[mm] | 816 mm |
| Vertical center porthole 2[mm] | 816 mm |
| Vertical center porthole side 1 [mm] | 816 mm |
| Volume per channel 1 [l] | 0.836 L |
| Volume per channel 2 [l] | 0.836 L |
