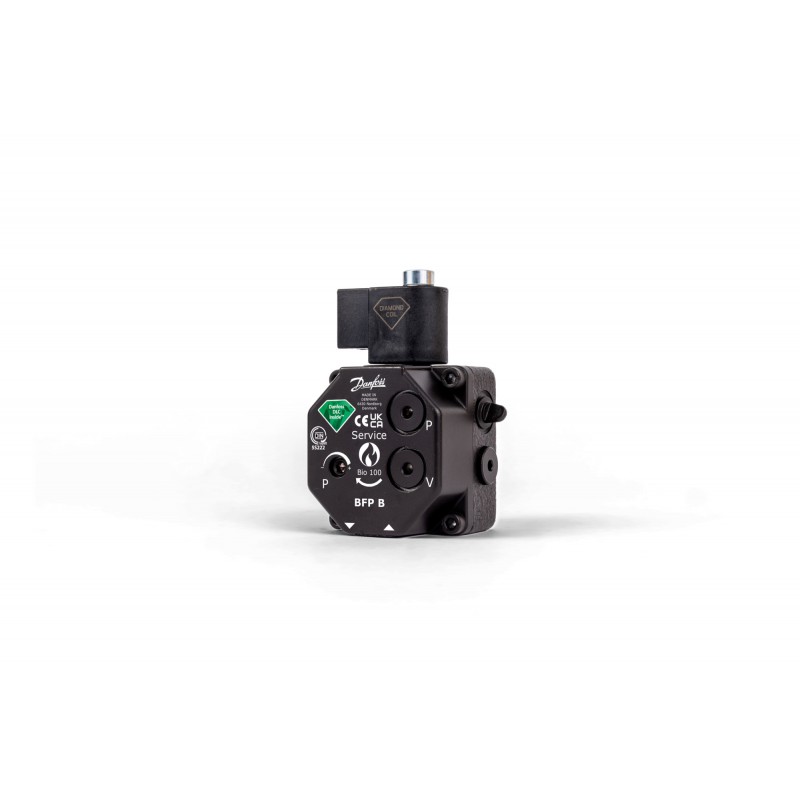

071N7174 DANFOSS HEATING Топливный насос BFP B 41 L3L LE-S, 2 трубы
071N7174
DANFOSS HEATING
10
Топливный насос BFP B 41 L3L LE-S, 2 трубы
Масляный насос BFP 41 L3, 2 трубы
Pumps, BFP 41, 24.00 L/h, Rotation: L, Nozzle/pressure outlet: L
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲BFP 41L3L, SERVICE
Product details
| Gross weight | 1.213 Kg |
| Net weight | 1.178 Kg |
| Volume | 2.002 Liter |
| EAN | 5702425156489 |
| Gross weight | 1.213 Kg |
| Net weight | 1.178 Kg |
| Volume | 2.002 Liter |
| EAN | 5702425156489 |
| 1 or 2 stage | 1 |
| Actuator type | NC |
| Ambient temperature [°C] [max] | 70 °C |
| Ambient temperature [°C] [min] | -20 °C |
| Approval | CE UKCA Intertek Semko |
| Capacity [l/h] | 24 L/h |
| Capacity group | 0-24 |
| Capacity range [l/h] [Max] | 24 L/h |
| Capacity range [l/h] [Min] | 0 L/h |
| Closing function | Cut-off |
| Coil consumption [W] | 9 W |
| Coil Current | AC |
| Coil voltage [V] AC | 220 - 230 |
| Comments | Rotation and nozzle/pressure outlet are always determined viewing from the shaft end of the pump. |
| Definition point [l/h] | 2800 min-1, 10 bar, 4.3 cSt |
| Description | BFP 41L3L, SERVICE |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a), 6(c) |
| Factory pressure setting [bar] | 10 bar |
| Filter area [cm²] | 11 cm² |
| Filter grade [µm] | 200 |
| Filter type | Cartridge |
| Flats/key on the shaft | 1 flat |
| Grade of enclosure | IP40 |
| In scope of WEEE and contain batteries | No |
| Media temperature [°C] [Max] | 70 °C |
| Media temperature [°C] [Min] | 0 °C |
| Nozzle/pressure outlet | L |
| Number of stages | 1 |
| Oil pump speed [op/min] | 3450 op/min |
| Oil type | Bio/Kerosene/Light |
| Packing format | Multi pack |
| Pipe connection | 2 pipes |
| Power consumption [W] | 42 W |
| Pressure [bar] [Max] | 20 bar |
| Pressure [bar] [Min] | 7 bar |
| Pressure feed line [bar] [Max] | 2 bar |
| Pressure kerosene [bar] [Max] | 12 bar |
| Product group | Pumps |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| ROTATION | L |
| SCIP dossier no. | b9ccf2df-a60a-4db7-b88b-d72eb1f67887 |
| SCIP dossier product name | Oil pump BFP - Service |
| Serie | BFP |
| Shaft diameter [mm] | 8 mm |
| Speed [rpm] [Max] | 3450 rpm |
| Speed [rpm] [Min] | 2400 rpm |
| Starting torque [Nm] [Max] | 0.1 N-m |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -20 °C |
| Suction Line Vacuum [bar] [Max] | 0.4 bar |
| Supply peak voltage [V] [Max] | 253 V |
| Supply peak voltage [V] [Min] | 207 V |
| Supply voltage [V] | 230 V |
| Supply voltage [V] [Max] | 230 V |
| Supply voltage [V] [Min] | 220 V |
| Type | BFP 41 |
| Viscosity [cSt] [Max] | 12 cSt |
| Viscosity [cSt] [Min] | 1.3 cSt |
| 1 or 2 stage | 1 |
| Actuator type | NC |
| Ambient temperature [°C] [max] | 70 °C |
| Ambient temperature [°C] [min] | -20 °C |
| Approval | CE UKCA Intertek Semko |
| Capacity [l/h] | 24 L/h |
| Capacity group | 0-24 |
| Capacity range [l/h] [Max] | 24 L/h |
| Capacity range [l/h] [Min] | 0 L/h |
| Closing function | Cut-off |
| Coil consumption [W] | 9 W |
| Coil Current | AC |
| Coil voltage [V] AC | 220 - 230 |
| Comments | Rotation and nozzle/pressure outlet are always determined viewing from the shaft end of the pump. |
| Definition point [l/h] | 2800 min-1, 10 bar, 4.3 cSt |
| Description | BFP 41L3L, SERVICE |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a), 6(c) |
| Factory pressure setting [bar] | 10 bar |
| Filter area [cm²] | 11 cm² |
| Filter grade [µm] | 200 |
| Filter type | Cartridge |
| Flats/key on the shaft | 1 flat |
| Grade of enclosure | IP40 |
| In scope of WEEE and contain batteries | No |
| Media temperature [°C] [Max] | 70 °C |
| Media temperature [°C] [Min] | 0 °C |
| Nozzle/pressure outlet | L |
| Number of stages | 1 |
| Oil pump speed [op/min] | 3450 op/min |
| Oil type | Bio/Kerosene/Light |
| Packing format | Multi pack |
| Pipe connection | 2 pipes |
| Power consumption [W] | 42 W |
| Pressure [bar] [Max] | 20 bar |
| Pressure [bar] [Min] | 7 bar |
| Pressure feed line [bar] [Max] | 2 bar |
| Pressure kerosene [bar] [Max] | 12 bar |
| Product group | Pumps |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| ROTATION | L |
| SCIP dossier no. | b9ccf2df-a60a-4db7-b88b-d72eb1f67887 |
| SCIP dossier product name | Oil pump BFP - Service |
| Serie | BFP |
| Shaft diameter [mm] | 8 mm |
| Speed [rpm] [Max] | 3450 rpm |
| Speed [rpm] [Min] | 2400 rpm |
| Starting torque [Nm] [Max] | 0.1 N-m |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -20 °C |
| Suction Line Vacuum [bar] [Max] | 0.4 bar |
| Supply peak voltage [V] [Max] | 253 V |
| Supply peak voltage [V] [Min] | 207 V |
| Supply voltage [V] | 230 V |
| Supply voltage [V] [Max] | 230 V |
| Supply voltage [V] [Min] | 220 V |
| Type | BFP 41 |
| Viscosity [cSt] [Max] | 12 cSt |
| Viscosity [cSt] [Min] | 1.3 cSt |
Datasheet - PDF
