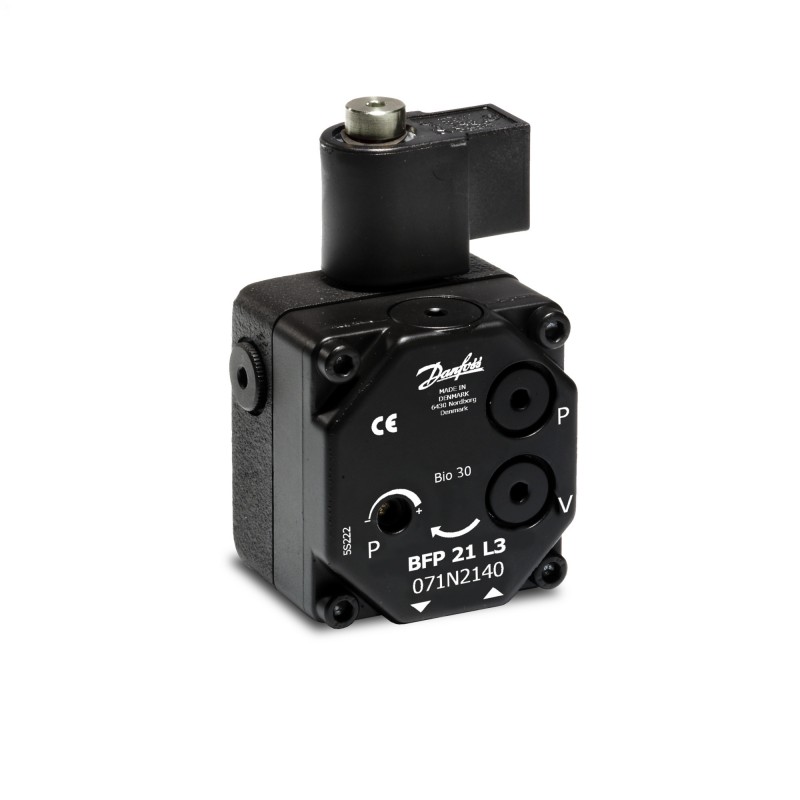

071N2140 DANFOSS HEATING Масляный насос BFP 21 L3L, 2 трубы, P-Pack
071N2140
DANFOSS HEATING
500
Масляный насос BFP 21 L3L, 2 трубы, P-Pack
Pumps, BFP 21, 24.00 L/h, ROTATION: L, Nozzle/pressure outlet: L
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Oil pump BFP 21 L3L, 2 pipes Bio30
Product details
| Gross weight | 1.167 Kg |
| Net weight | 1.166 Kg |
| Volume | 1.123 Liter |
| EAN | 5702424632182 |
| Gross weight | 1.167 Kg |
| Net weight | 1.166 Kg |
| Volume | 1.123 Liter |
| EAN | 5702424632182 |
| 1 or 2 stage | 1 |
| Actuator type | NC |
| Ambient temperature [°C] [max] | 70 °C |
| Ambient temperature [°C] [min] | -20 °C |
| Approval | CE UKCA Intertek Semko DIN CERTCO |
| Capacity [l/h] | 24 L/h |
| Capacity group | 0-24 |
| Capacity range [l/h] [Max] | 24 L/h |
| Capacity range [l/h] [Min] | 0 L/h |
| Closing function | Cut-off |
| Coil consumption [W] | 9 W |
| Coil Current | AC |
| Coil voltage [V] AC | 220 - 230 |
| Comments | Rotation and nozzle/pressure outlet are always determined viewing from the shaft end of the pump. |
| Definition point [l/h] | 2800 min-1, 10 bar, 4.3 cSt |
| Description | Oil pump BFP 21 L3L, 2 pipes Bio30 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a), 6(c) |
| Factory pressure setting [bar] | 10 bar |
| Filter area [cm²] | 11 cm² |
| Filter grade [µm] | 200 |
| Filter type | Cartridge |
| Flats/key on the shaft | 1 flat |
| Grade of enclosure | IP40 |
| In scope of WEEE and contain batteries | No |
| Media temperature [°C] [Max] | 70 °C |
| Media temperature [°C] [Min] | 0 °C |
| Nozzle/pressure outlet | L |
| Number of stages | 1 |
| Oil pump speed [op/min] | 3450 op/min |
| Oil type | Kerosene/Light oil |
| Packing format | Pallet pack |
| Pipe connection | 2 pipes |
| Pressure [bar] [Max] | 20 bar |
| Pressure [bar] [Min] | 7 bar |
| Pressure feed line [bar] [Max] | 2 bar |
| Pressure kerosene [bar] [Max] | 12 bar |
| Product group | Pumps |
| Quantity per packing format | 500 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| ROTATION | L |
| SCIP dossier no. | 4e17200c-7afb-4fe9-9736-01e9ab4d277f |
| SCIP dossier product name | Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 |
| Serie | BFP |
| Shaft diameter [mm] | 8 mm |
| Speed [rpm] [Max] | 3450 rpm |
| Speed [rpm] [Min] | 2400 rpm |
| Starting torque [Nm] [Max] | 0.1 N-m |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -20 °C |
| Suction Line Vacuum [bar] [Max] | 0.4 bar |
| Supply peak voltage [V] [Max] | 253 V |
| Supply peak voltage [V] [Min] | 207 V |
| Supply voltage [V] | 230 V |
| Supply voltage [V] [Max] | 240 V |
| Supply voltage [V] [Min] | 220 V |
| Type | BFP 21 |
| Viscosity [cSt] [Max] | 12 cSt |
| Viscosity [cSt] [Min] | 1.3 cSt |
| 1 or 2 stage | 1 |
| Actuator type | NC |
| Ambient temperature [°C] [max] | 70 °C |
| Ambient temperature [°C] [min] | -20 °C |
| Approval | CE UKCA Intertek Semko DIN CERTCO |
| Capacity [l/h] | 24 L/h |
| Capacity group | 0-24 |
| Capacity range [l/h] [Max] | 24 L/h |
| Capacity range [l/h] [Min] | 0 L/h |
| Closing function | Cut-off |
| Coil consumption [W] | 9 W |
| Coil Current | AC |
| Coil voltage [V] AC | 220 - 230 |
| Comments | Rotation and nozzle/pressure outlet are always determined viewing from the shaft end of the pump. |
| Definition point [l/h] | 2800 min-1, 10 bar, 4.3 cSt |
| Description | Oil pump BFP 21 L3L, 2 pipes Bio30 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a), 6(c) |
| Factory pressure setting [bar] | 10 bar |
| Filter area [cm²] | 11 cm² |
| Filter grade [µm] | 200 |
| Filter type | Cartridge |
| Flats/key on the shaft | 1 flat |
| Grade of enclosure | IP40 |
| In scope of WEEE and contain batteries | No |
| Media temperature [°C] [Max] | 70 °C |
| Media temperature [°C] [Min] | 0 °C |
| Nozzle/pressure outlet | L |
| Number of stages | 1 |
| Oil pump speed [op/min] | 3450 op/min |
| Oil type | Kerosene/Light oil |
| Packing format | Pallet pack |
| Pipe connection | 2 pipes |
| Pressure [bar] [Max] | 20 bar |
| Pressure [bar] [Min] | 7 bar |
| Pressure feed line [bar] [Max] | 2 bar |
| Pressure kerosene [bar] [Max] | 12 bar |
| Product group | Pumps |
| Quantity per packing format | 500 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| ROTATION | L |
| SCIP dossier no. | 4e17200c-7afb-4fe9-9736-01e9ab4d277f |
| SCIP dossier product name | Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 Oil pump BFP 21 |
| Serie | BFP |
| Shaft diameter [mm] | 8 mm |
| Speed [rpm] [Max] | 3450 rpm |
| Speed [rpm] [Min] | 2400 rpm |
| Starting torque [Nm] [Max] | 0.1 N-m |
| Storage temperature [°C] [Max] | 70 °C |
| Storage temperature [°C] [Min] | -20 °C |
| Suction Line Vacuum [bar] [Max] | 0.4 bar |
| Supply peak voltage [V] [Max] | 253 V |
| Supply peak voltage [V] [Min] | 207 V |
| Supply voltage [V] | 230 V |
| Supply voltage [V] [Max] | 240 V |
| Supply voltage [V] [Min] | 220 V |
| Type | BFP 21 |
| Viscosity [cSt] [Max] | 12 cSt |
| Viscosity [cSt] [Min] | 1.3 cSt |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
