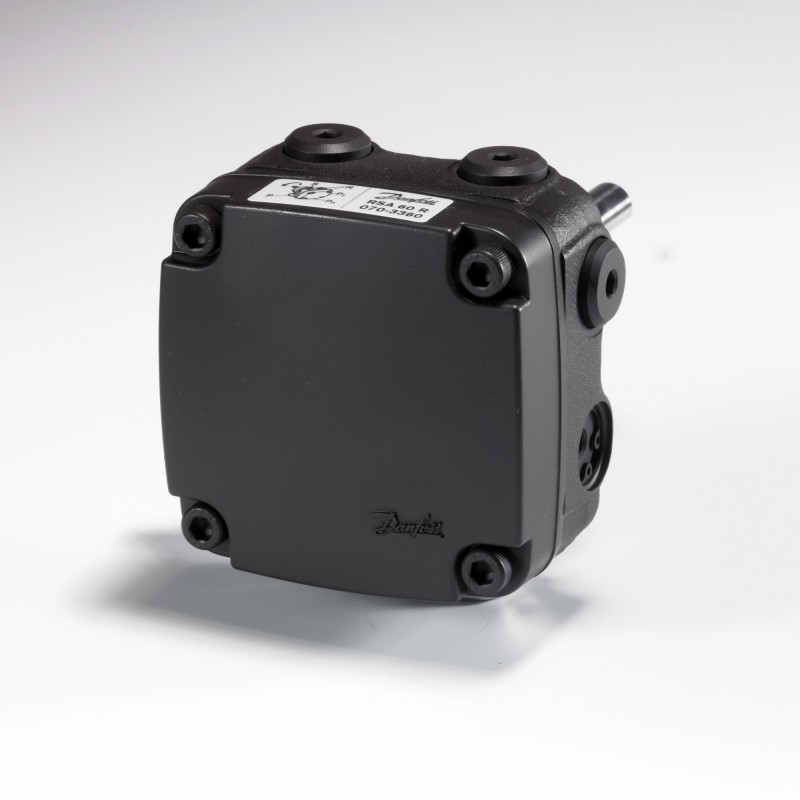

070-3354 DANFOSS HEATING ЮАР 060 М 2253
070-3354
DANFOSS HEATING
6
ЮАР 060 М 2253
Pumps, RSA, 120.00 L/h, Rotation: R, Nozzle/pressure outlet: L
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲RSA 60
Product details
| Gross weight | 2.118 Kg |
| Net weight | 2.117 Kg |
| Volume | 2.53 Liter |
| EAN | 5702425025556 |
| Gross weight | 2.118 Kg |
| Net weight | 2.117 Kg |
| Volume | 2.53 Liter |
| EAN | 5702425025556 |
| 1 or 2 stage | 1 |
| Ambient temperature [°C] [max] | 120 °C |
| Ambient temperature [°C] [min] | -20 °C |
| Capacity [l/h] | 120 L/h |
| Capacity group | 100-149 |
| Capacity range [l/h] [Max] | 149 L/h |
| Capacity range [l/h] [Min] | 100 L/h |
| Closing function | Shut-off |
| Comments | Rotation and nozzle/pressure outlet are always determined viewing from the shaft end of the pump. |
| Definition point [l/h] | 2800 min-1, 7 bar, 4.3 cSt |
| Description | RSA 60 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a), 6(c) |
| Factory pressure setting [bar] | 7 bar |
| Filter area [cm²] | 75 cm² |
| Filter grade [µm] | 150 |
| Filter type | Ring |
| Flats/key on the shaft | 1 flat |
| In scope of WEEE and contain batteries | No |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Nozzle/pressure outlet | L |
| Number of stages | 1 |
| Oil pump speed [op/min] | 3600 op/min |
| Oil type | Kerosene/Light oil |
| Packing format | Multi pack |
| Pipe connection | 1 pipe |
| Power consumption [W] | 89 W |
| Pressure [bar] [Max] | 21 bar |
| Pressure [bar] [Min] | 5.5 bar |
| Pressure feed line [bar] [Max] | 4 bar |
| Pressure kerosene [bar] [Max] | 12 bar |
| Pressure range special spring [bar] [Max] | 5 bar |
| Pressure range special spring [bar] [Min] | 1 bar |
| Product group | Pumps |
| Quantity per packing format | 6 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| ROTATION | R |
| SCIP dossier no. | 694e7c79-bcf1-4f46-a1db-9953bf12553f |
| SCIP dossier product name | Oil pumps - RSA 60 |
| Serie | RS |
| Shaft diameter [mm] | 10 mm |
| Speed [rpm] [Max] | 3600 rpm |
| Speed [rpm] [Min] | 1400 rpm |
| Starting torque [Nm] [Max] | 0.24 N-m |
| Storage temperature [°C] [Max] | 120 °C |
| Storage temperature [°C] [Min] | -25 °C |
| Suction Line Vacuum [bar] [Max] | 0.4 bar |
| Type | RSA |
| Viscosity [cSt] [Max] | 18 cSt |
| Viscosity [cSt] [Min] | 1.3 cSt |
| 1 or 2 stage | 1 |
| Ambient temperature [°C] [max] | 120 °C |
| Ambient temperature [°C] [min] | -20 °C |
| Capacity [l/h] | 120 L/h |
| Capacity group | 100-149 |
| Capacity range [l/h] [Max] | 149 L/h |
| Capacity range [l/h] [Min] | 100 L/h |
| Closing function | Shut-off |
| Comments | Rotation and nozzle/pressure outlet are always determined viewing from the shaft end of the pump. |
| Definition point [l/h] | 2800 min-1, 7 bar, 4.3 cSt |
| Description | RSA 60 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a), 6(c) |
| Factory pressure setting [bar] | 7 bar |
| Filter area [cm²] | 75 cm² |
| Filter grade [µm] | 150 |
| Filter type | Ring |
| Flats/key on the shaft | 1 flat |
| In scope of WEEE and contain batteries | No |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Nozzle/pressure outlet | L |
| Number of stages | 1 |
| Oil pump speed [op/min] | 3600 op/min |
| Oil type | Kerosene/Light oil |
| Packing format | Multi pack |
| Pipe connection | 1 pipe |
| Power consumption [W] | 89 W |
| Pressure [bar] [Max] | 21 bar |
| Pressure [bar] [Min] | 5.5 bar |
| Pressure feed line [bar] [Max] | 4 bar |
| Pressure kerosene [bar] [Max] | 12 bar |
| Pressure range special spring [bar] [Max] | 5 bar |
| Pressure range special spring [bar] [Min] | 1 bar |
| Product group | Pumps |
| Quantity per packing format | 6 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| ROTATION | R |
| SCIP dossier no. | 694e7c79-bcf1-4f46-a1db-9953bf12553f |
| SCIP dossier product name | Oil pumps - RSA 60 |
| Serie | RS |
| Shaft diameter [mm] | 10 mm |
| Speed [rpm] [Max] | 3600 rpm |
| Speed [rpm] [Min] | 1400 rpm |
| Starting torque [Nm] [Max] | 0.24 N-m |
| Storage temperature [°C] [Max] | 120 °C |
| Storage temperature [°C] [Min] | -25 °C |
| Suction Line Vacuum [bar] [Max] | 0.4 bar |
| Type | RSA |
| Viscosity [cSt] [Max] | 18 cSt |
| Viscosity [cSt] [Min] | 1.3 cSt |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
