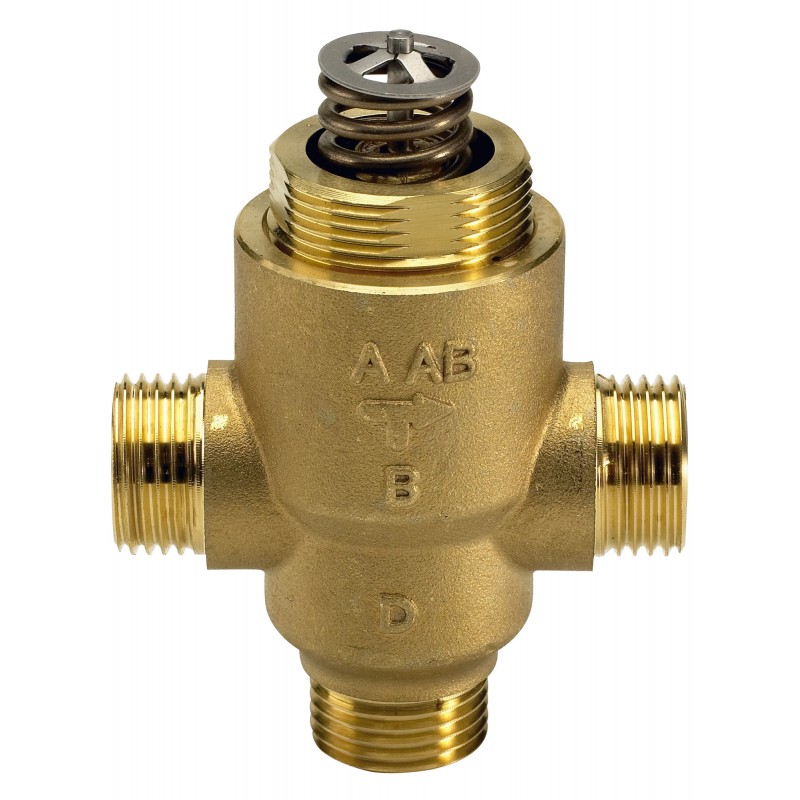

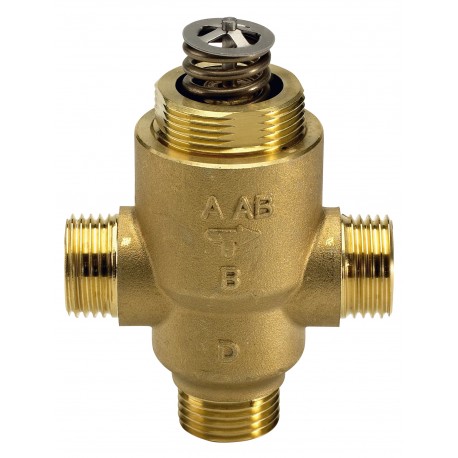

065Z5413 DANFOSS HEATING VZ 3 PN16 15/1 3WAY СИДЯЧИЙ ПЛОСКИЙ КОНЕЦ
065Z5413
DANFOSS HEATING
VZ 3 PN16 15/1 3WAY СИДЯЧИЙ ПЛОСКИЙ КОНЕЦ
VZ 3, 1.00 m³/h, G 1/2
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲HVZ 3 PN16 15/1 3way seated flat end
Product details
| Gross weight | 0.402 Kg |
| Net weight | 0.392 Kg |
| Volume | 0.322 Liter |
| EAN | 5702421526590 |
| Gross weight | 0.402 Kg |
| Net weight | 0.392 Kg |
| Volume | 0.322 Liter |
| EAN | 5702421526590 |
| Application | Heating and cooling |
| Application alternative VSP | Hot water |
| Closing differential pressure (diverting) [bar] [Max] | 1 bar |
| Closing differential pressure (mixing) [bar] [Max] | 3.5 bar |
| Connection size | G 1/2 |
| Connection types | External Thread |
| Control ratio | 50:1 |
| Description | HVZ 3 PN16 15/1 3way seated flat end |
| Diameter [mm] | 15 mm |
| Flow characteristic | Logarithmic |
| Function | Mixing valve |
| In scope of WEEE and contain batteries | No |
| Kvs value (B-AB) [m³/h] | 0.63 m³/h |
| Kvs values [m³/h] | 1 m³/h |
| Leakage through port (B-AB) max. [% Kvs] | 1.0 |
| Leakage through port max. [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting version | Free |
| Number of ports | 3 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 10 |
| Pressure nominal [bar] | 16 bar |
| Product group | Motorized control valves |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 4da357f0-472c-4c0b-9ef0-e65c8e59b267 |
| SCIP dossier product name | VZ 3 PN16 15/1 3WAY SEATED FLAT END |
| Spindle position | A-AB: Normally closed |
| Stroke [mm] | 5.5 mm |
| Stuffing box sealing material | EPDM |
| Type | VZ 3 |
| Valve body material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve cone material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve seat material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve stem material | Stainless steel |
| Application | Heating and cooling |
| Application alternative VSP | Hot water |
| Closing differential pressure (diverting) [bar] [Max] | 1 bar |
| Closing differential pressure (mixing) [bar] [Max] | 3.5 bar |
| Connection size | G 1/2 |
| Connection types | External Thread |
| Control ratio | 50:1 |
| Description | HVZ 3 PN16 15/1 3way seated flat end |
| Diameter [mm] | 15 mm |
| Flow characteristic | Logarithmic |
| Function | Mixing valve |
| In scope of WEEE and contain batteries | No |
| Kvs value (B-AB) [m³/h] | 0.63 m³/h |
| Kvs values [m³/h] | 1 m³/h |
| Leakage through port (B-AB) max. [% Kvs] | 1.0 |
| Leakage through port max. [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting version | Free |
| Number of ports | 3 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 10 |
| Pressure nominal [bar] | 16 bar |
| Product group | Motorized control valves |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 4da357f0-472c-4c0b-9ef0-e65c8e59b267 |
| SCIP dossier product name | VZ 3 PN16 15/1 3WAY SEATED FLAT END |
| Spindle position | A-AB: Normally closed |
| Stroke [mm] | 5.5 mm |
| Stuffing box sealing material | EPDM |
| Type | VZ 3 |
| Valve body material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve cone material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve seat material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve stem material | Stainless steel |
