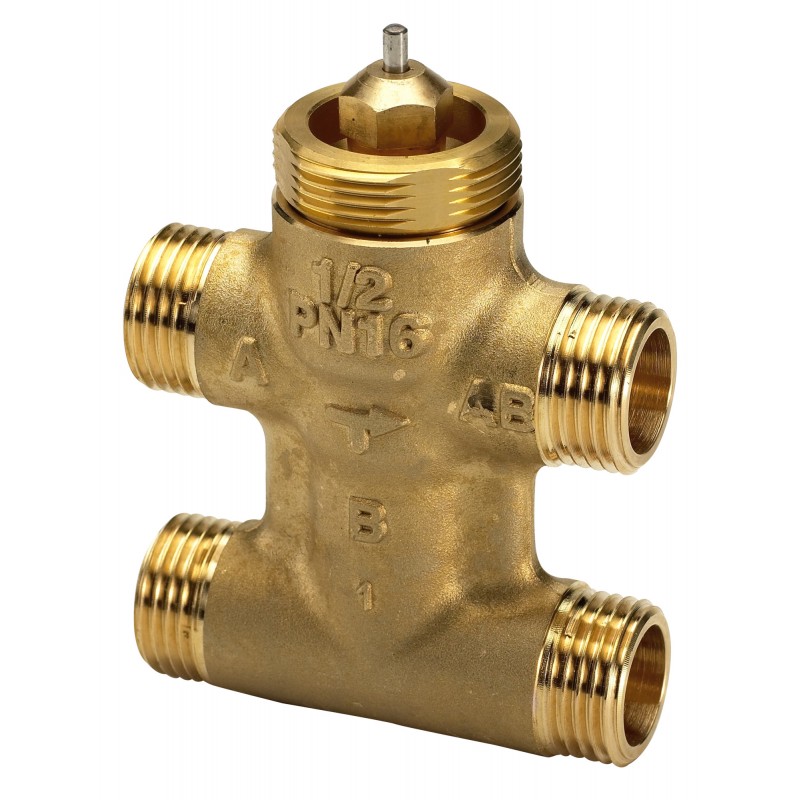

065Z2065 DANFOSS HEATING VZL4 DN20/2.5 конекс
065Z2065
DANFOSS HEATING
VZL4 DN20/2.5 конекс
VZL 4, 2.50 m³/h
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲VZL 4 PN16 20/2,5 4-way seated conex
Product details
| Gross weight | 0.626 Kg |
| Net weight | 0.626 Kg |
| Volume | 0.48 Liter |
| EAN | 5702421548547 |
| Gross weight | 0.626 Kg |
| Net weight | 0.626 Kg |
| Volume | 0.48 Liter |
| EAN | 5702421548547 |
| Application | Heating and cooling |
| Application alternative VSP | Hot water |
| Connection types | External Thread |
| Control ratio | 30:1 |
| Description | VZL 4 PN16 20/2,5 4-way seated conex |
| Diameter [mm] | 20 mm |
| Differential pressure range [bar] [Max] | 10 bar |
| Flow characteristic | Linear |
| Function | Mixing valve |
| In scope of WEEE and contain batteries | No |
| Kvs value (B-AB) [m³/h] | 1.6 m³/h |
| Kvs values [m³/h] | 2.5 m³/h |
| Leakage through port (B-AB) max. [% Kvs] | 1.0 |
| Leakage through port max. [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting version | Free |
| Number of ports | 4 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 10 |
| Pressure nominal [bar] | 16 bar |
| Product group | Motorized control valves |
| Spindle position | A-AB: Normally closed |
| Stroke [mm] | 2.8 mm |
| Stuffing box sealing material | EPDM |
| Type | VZL 4 |
| Valve body material | Brass |
| Valve cone material | Brass |
| Valve stem material | Brass |
| Application | Heating and cooling |
| Application alternative VSP | Hot water |
| Connection types | External Thread |
| Control ratio | 30:1 |
| Description | VZL 4 PN16 20/2,5 4-way seated conex |
| Diameter [mm] | 20 mm |
| Differential pressure range [bar] [Max] | 10 bar |
| Flow characteristic | Linear |
| Function | Mixing valve |
| In scope of WEEE and contain batteries | No |
| Kvs value (B-AB) [m³/h] | 1.6 m³/h |
| Kvs values [m³/h] | 2.5 m³/h |
| Leakage through port (B-AB) max. [% Kvs] | 1.0 |
| Leakage through port max. [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting version | Free |
| Number of ports | 4 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 10 |
| Pressure nominal [bar] | 16 bar |
| Product group | Motorized control valves |
| Spindle position | A-AB: Normally closed |
| Stroke [mm] | 2.8 mm |
| Stuffing box sealing material | EPDM |
| Type | VZL 4 |
| Valve body material | Brass |
| Valve cone material | Brass |
| Valve stem material | Brass |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
