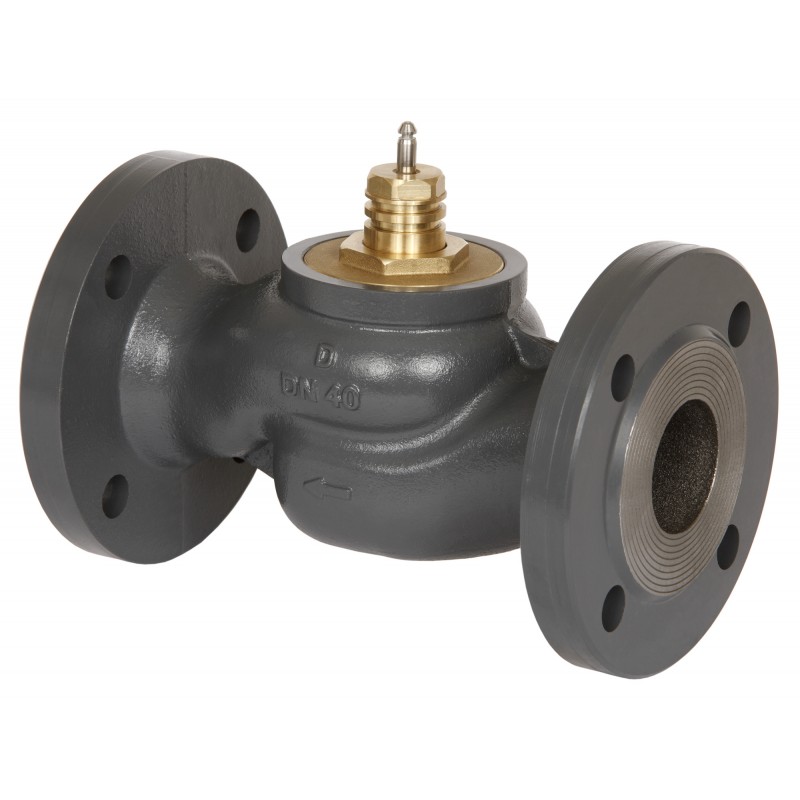

065Z0380 DANFOSS HEATING VL2 PN6 DN50/40 flange
Reference: 065Z0380
Manufacturer: DANFOSS HEATING
Description:
VL2 PN6 DN50/40 flange
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
MORE INFO
VL2 PN6 DN50/40 flange
Product details
| Gross weight | 7.2 Kilogram |
| Net weight | 7.07 Kilogram |
| Volume | 11.322 Liter |
| EAN | 5710104009322 |
| Type | VL 2 |
| Product group | Other valves |
| Gross weight | 7.2 Kilogram |
| Net weight | 7.07 Kilogram |
| Volume | 11.322 Liter |
| EAN | 5710104009322 |
| Type | VL 2 |
| Product group | Other valves |
| Application | Heating and cooling |
| Application alternative VSP | District heating |
| Cavitation factor | 0.4 |
| Connection types | Flange |
| Contains batteries | No |
| Control ratio | 100:1 |
| Description | VL2 PN6 DN50/40 flange |
| Diameter [mm] | 50 mm |
| Differential pressure range [bar] [Max] | 4 bar |
| Flow characteristic | Equal percentage |
| Function | Pressure relief |
| Kvs values [m³/h] | 40 m³/h |
| Leakage through port max. [% Kvs] | bubble tight design |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting version | Flow |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| Pressure nominal [bar] | 6 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | dc8625ff-2cb3-483d-a989-a089cd8f8cf5 |
| SCIP dossier product name | VL2 PN6 flange |
| Stroke [mm] | 15 mm |
| Stuffing box sealing material | EPDM |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve cone material | Brass |
| Valve stem material | Stainless steel |
| Application | Heating and cooling |
| Application alternative VSP | District heating |
| Cavitation factor | 0.4 |
| Connection types | Flange |
| Contains batteries | No |
| Control ratio | 100:1 |
| Description | VL2 PN6 DN50/40 flange |
| Diameter [mm] | 50 mm |
| Differential pressure range [bar] [Max] | 4 bar |
| Flow characteristic | Equal percentage |
| Function | Pressure relief |
| Kvs values [m³/h] | 40 m³/h |
| Leakage through port max. [% Kvs] | bubble tight design |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | -10 °C |
| Medium alternative | Glycolic water up to 50% |
| Mounting version | Flow |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| Pressure nominal [bar] | 6 bar |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | dc8625ff-2cb3-483d-a989-a089cd8f8cf5 |
| SCIP dossier product name | VL2 PN6 flange |
| Stroke [mm] | 15 mm |
| Stuffing box sealing material | EPDM |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve cone material | Brass |
| Valve stem material | Stainless steel |
