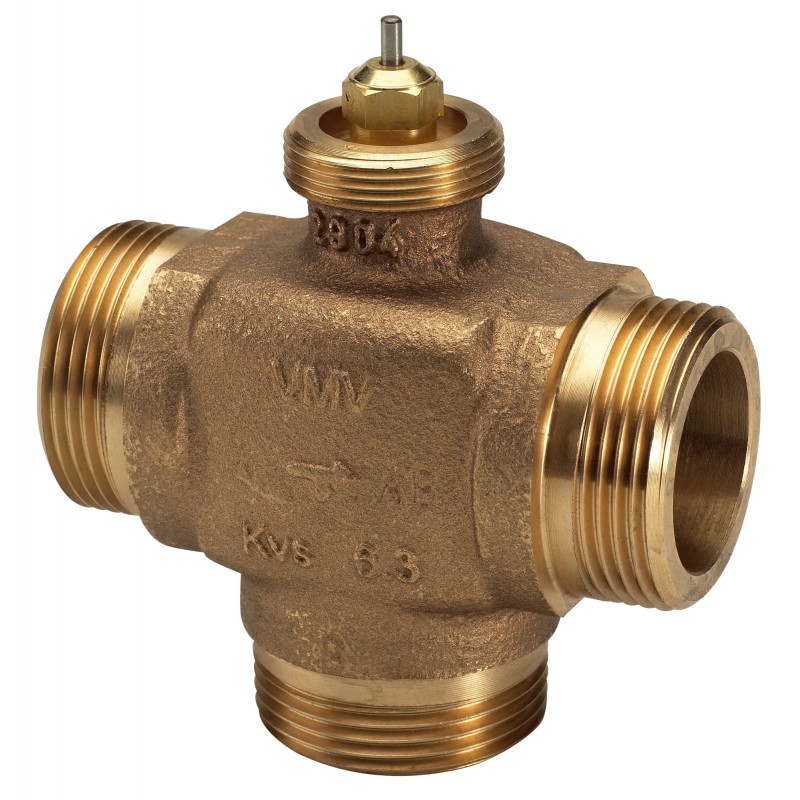

065F6020 DANFOSS HEATING VMV PN16 20/4 3-полосный ext. thr M30 гриф
065F6020
DANFOSS HEATING
VMV PN16 20/4 3-полосный ext. thr M30 гриф
VMV, 4.00 m³/h, G 1 A, M30
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲VMV PN16 20/4 3-way ext. thr M30 neck
Product details
| Gross weight | 0.634 Kg |
| Net weight | 0.634 Kg |
| Volume | 0.869 Liter |
| EAN | 5702421603826 |
| Gross weight | 0.634 Kg |
| Net weight | 0.634 Kg |
| Volume | 0.869 Liter |
| EAN | 5702421603826 |
| Application | Heating and cooling |
| Cavitation factor | 0.5 |
| Closing differential pressure (diverting) [bar] [Max] | 0.5 bar |
| Closing differential pressure (mixing) [bar] [Max] | 0.5 bar |
| Connection size | G 1 A |
| Connection type to valve | M30 |
| Connection types | External Thread |
| Control ratio | 1:30 |
| Description | VMV PN16 20/4 3-way ext. thr M30 neck |
| Diameter [mm] | 20 mm |
| Flow characteristic | Approx. linear |
| Function | Mixing valve |
| Function 2 | Diverting valve |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 4 m³/h |
| Leakage bypass port max. [% Kvs] | 0.1 % |
| Leakage through port max. [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 3 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 10 |
| Pressure nominal [bar] | 16 bar |
| Product group | Motorized control valves |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Spindle material | Stainless steel |
| Spindle position | B-AB (Normal open) |
| Stroke [mm] | 2.1 mm |
| Type | VMV |
| Valve body material | Red bronze, mat. No. 2.1096.1 (RG5) |
| Valve cone material | EPDM |
| Valve seat material | Red bronze, mat. No. 2.1096.1 (RG5) |
| Application | Heating and cooling |
| Cavitation factor | 0.5 |
| Closing differential pressure (diverting) [bar] [Max] | 0.5 bar |
| Closing differential pressure (mixing) [bar] [Max] | 0.5 bar |
| Connection size | G 1 A |
| Connection type to valve | M30 |
| Connection types | External Thread |
| Control ratio | 1:30 |
| Description | VMV PN16 20/4 3-way ext. thr M30 neck |
| Diameter [mm] | 20 mm |
| Flow characteristic | Approx. linear |
| Function | Mixing valve |
| Function 2 | Diverting valve |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 4 m³/h |
| Leakage bypass port max. [% Kvs] | 0.1 % |
| Leakage through port max. [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 120 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 3 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 10 |
| Pressure nominal [bar] | 16 bar |
| Product group | Motorized control valves |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Spindle material | Stainless steel |
| Spindle position | B-AB (Normal open) |
| Stroke [mm] | 2.1 mm |
| Type | VMV |
| Valve body material | Red bronze, mat. No. 2.1096.1 (RG5) |
| Valve cone material | EPDM |
| Valve seat material | Red bronze, mat. No. 2.1096.1 (RG5) |
Datasheet - PDF
