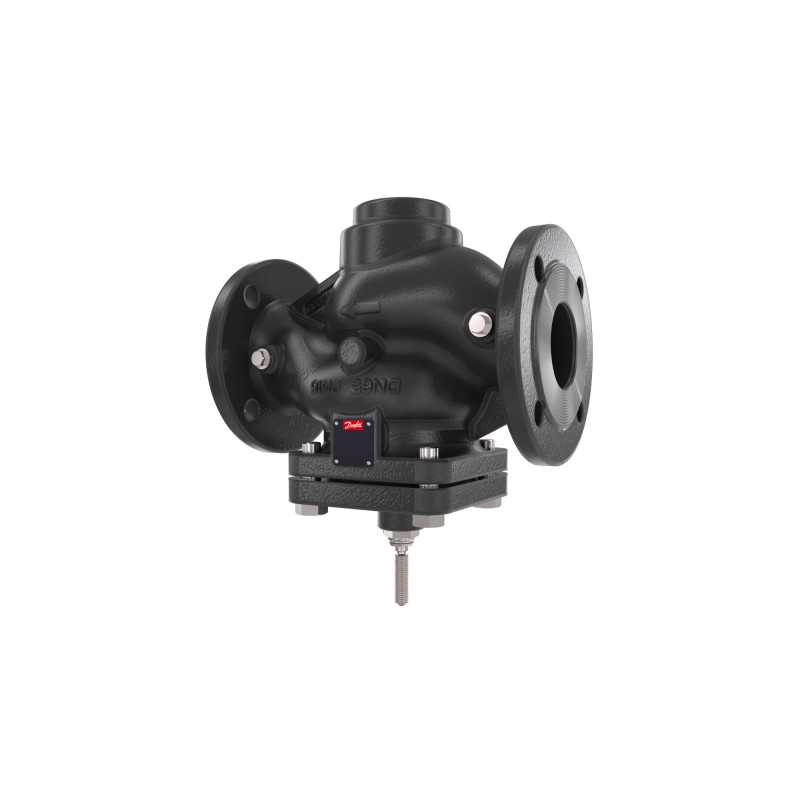

065B5500 DANFOSS HEATING VFG 22 PN16 65/60 2-ходовой фланец flow/ret
065B5500
DANFOSS HEATING
VFG 22 PN16 65/60 2-ходовой фланец flow/ret
VFG 22, PN 16, DN 65, 60.00 m³/h
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲Pressure operated valves
Product details
| Gross weight | 33.5 Kg |
| Net weight | 24 Kg |
| Volume | 85.2 Liter |
| EAN | 5710104095448 |
| Gross weight | 33.5 Kg |
| Net weight | 24 Kg |
| Volume | 85.2 Liter |
| EAN | 5710104095448 |
| Application | District heating and cooling |
| Cavitation factor | 0.42 |
| Cavitation factor 100% | 0.36 |
| Cavitation factor 25% | 0.6 |
| Cavitation factor 50% | 0.49 |
| Cavitation factor 75% | 0.42 |
| Connection size | DN 65 |
| Connection types | Flange |
| Description | Pressure operated valves |
| Diameter [mm] | 65 mm |
| Differential pressure range [bar] [Max] | 16 bar |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 60 m³/h |
| Leakage rate [% Kvs] | 0.03 |
| Leakage through port max. [% Kvs] | 0.03 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Operating pressure [bar] [Max] | 16 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 16 |
| Pressure nominal [bar] | 16 bar |
| Pressure relieve system control valve insert | Chamber |
| Product group | Pressure flow controllers |
| Sealing DP material | Metal |
| Type | VFG 22 |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve cone DP material | Stainless steel mat. No. 1.4021 |
| Valve seat DP material | Stainless steel, mat. No. 1.4021 |
| Valve size | DN 65 |
| Application | District heating and cooling |
| Cavitation factor | 0.42 |
| Cavitation factor 100% | 0.36 |
| Cavitation factor 25% | 0.6 |
| Cavitation factor 50% | 0.49 |
| Cavitation factor 75% | 0.42 |
| Connection size | DN 65 |
| Connection types | Flange |
| Description | Pressure operated valves |
| Diameter [mm] | 65 mm |
| Differential pressure range [bar] [Max] | 16 bar |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 60 m³/h |
| Leakage rate [% Kvs] | 0.03 |
| Leakage through port max. [% Kvs] | 0.03 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Operating pressure [bar] [Max] | 16 bar |
| Permissible media | District heating/cooling circulation water |
| Pressure class | PN 16 |
| Pressure nominal [bar] | 16 bar |
| Pressure relieve system control valve insert | Chamber |
| Product group | Pressure flow controllers |
| Sealing DP material | Metal |
| Type | VFG 22 |
| Valve body material | Grey cast iron EN-GJL-250 (GG-25) |
| Valve cone DP material | Stainless steel mat. No. 1.4021 |
| Valve seat DP material | Stainless steel, mat. No. 1.4021 |
| Valve size | DN 65 |
Datasheet - PDF
