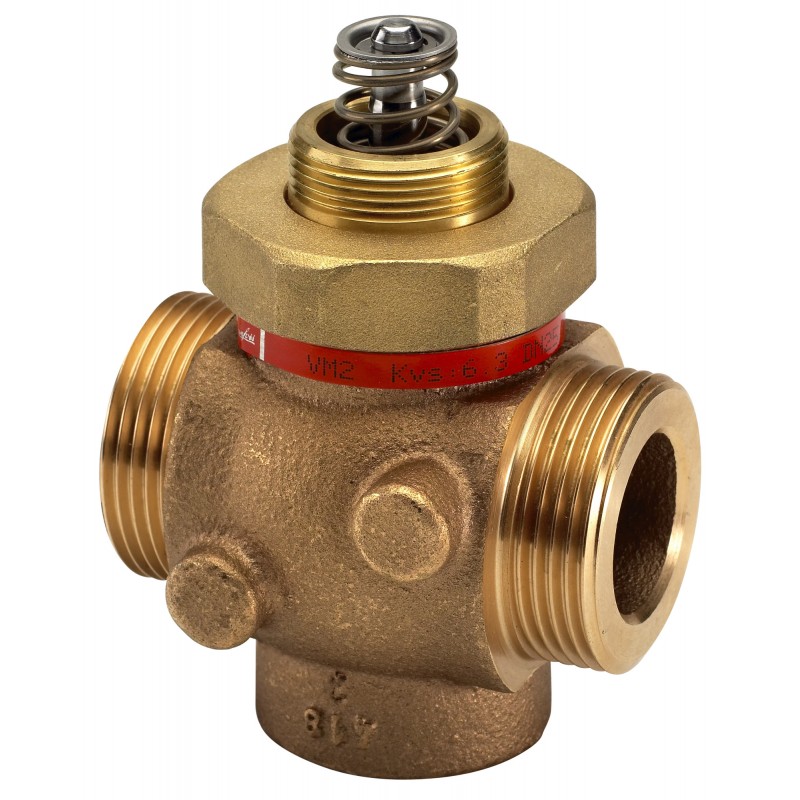

065B2029 DANFOSS HEATING VM 2 PN25 32/10 2-way ext. thr 1 3/4
065B2029
DANFOSS HEATING
VM 2 PN25 32/10 2-way ext. thr 1 3/4
VM 2, 10.00 m³/h, G 1 3/4 A
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲VM 2 PN25 32/10 2-way ext. thr 1 3/4
Product details
| Gross weight | 1.568 Kg |
| Net weight | 1.56 Kg |
| Volume | 1.5 Liter |
| EAN | 5710104012407 |
| Gross weight | 1.568 Kg |
| Net weight | 1.56 Kg |
| Volume | 1.5 Liter |
| EAN | 5710104012407 |
| Application | District Heating |
| Application alternative VSP | Heating |
| Cavitation factor | 0.5 |
| Connection size | G 1 3/4 A |
| Connection types | External Thread |
| Control ratio | 50:1 |
| Description | VM 2 PN25 32/10 2-way ext. thr 1 3/4 |
| Diameter [mm] | 32 mm |
| Differential pressure range [bar] [Max] | 25 bar |
| Flow characteristic | Split |
| Function | Pressure relief |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 10 m³/h |
| Leakage through port max. [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 16 |
| Pressure nominal [bar] | 25 bar |
| Product group | Motorized control valves |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Spindle position | Normally open |
| Stroke [mm] | 7 mm |
| Stuffing box sealing material | EPDM |
| Type | VM 2 |
| Valve body material | Red bronze, mat. No. 2.1096.1 (RG5) |
| Valve cone material | Stainless steel |
| Valve seat material | Stainless steel |
| Valve stem material | Stainless steel |
| Application | District Heating |
| Application alternative VSP | Heating |
| Cavitation factor | 0.5 |
| Connection size | G 1 3/4 A |
| Connection types | External Thread |
| Control ratio | 50:1 |
| Description | VM 2 PN25 32/10 2-way ext. thr 1 3/4 |
| Diameter [mm] | 32 mm |
| Differential pressure range [bar] [Max] | 25 bar |
| Flow characteristic | Split |
| Function | Pressure relief |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 10 m³/h |
| Leakage through port max. [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 16 |
| Pressure nominal [bar] | 25 bar |
| Product group | Motorized control valves |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Spindle position | Normally open |
| Stroke [mm] | 7 mm |
| Stuffing box sealing material | EPDM |
| Type | VM 2 |
| Valve body material | Red bronze, mat. No. 2.1096.1 (RG5) |
| Valve cone material | Stainless steel |
| Valve seat material | Stainless steel |
| Valve stem material | Stainless steel |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
