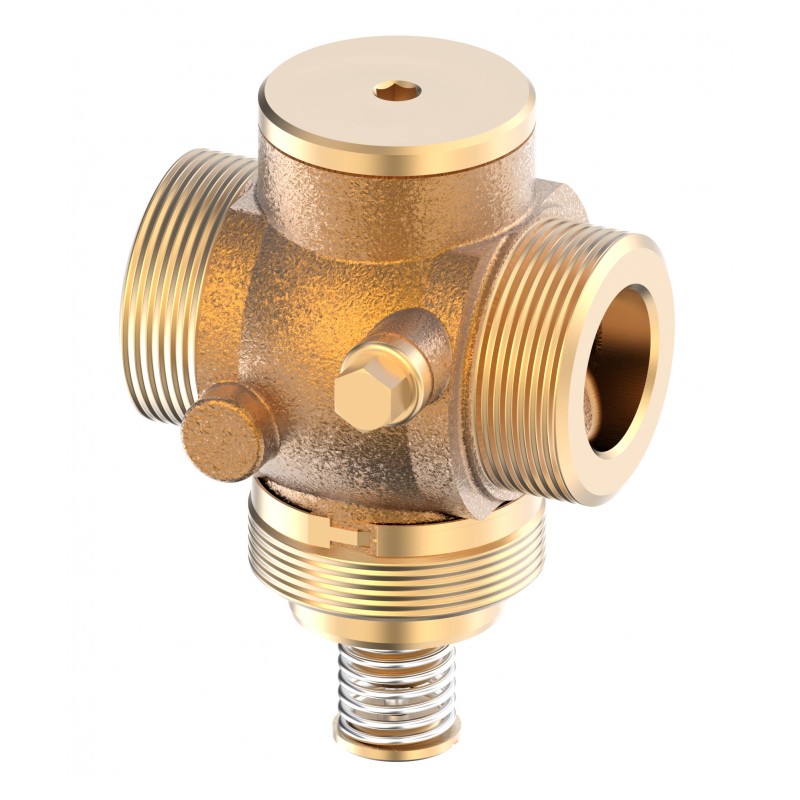

065B0793 DANFOSS HEATING VGU PN25 25/8 2-сторонняя резьба flow/ret
065B0793
DANFOSS HEATING
VGU PN25 25/8 2-сторонняя резьба flow/ret
VGU, 8.00 m³/h, G 1 1/4 A
Home > DANFOSS HEATING
Новый продукт в оригинальной упаковке со всеми гарантиями и сертификатами DANFOSS HEATING
Best sellers
▲Описание
▲VGU PN25 25/8 2-way thread flow/ret
Product details
| Gross weight | 1.049 Kg |
| Net weight | 1.049 Kg |
| Volume | 1.479 Liter |
| EAN | 5702421543757 |
| Gross weight | 1.049 Kg |
| Net weight | 1.049 Kg |
| Volume | 1.479 Liter |
| EAN | 5702421543757 |
| Application | Cooling |
| Cavitation factor | 0.6 |
| Connection size | G 1 1/4 A |
| Connection standard | ISO 228/1 |
| Connection types | External Thread |
| Description | VGU PN25 25/8 2-way thread flow/ret |
| Diameter [mm] | 25 mm |
| Differential pressure range [bar] [Max] | 20 bar |
| Flow characteristic | Approx. linear |
| Function | Control valve |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 8 m³/h |
| Leakage through port max. [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 16 |
| Pressure nominal [bar] | 25 bar |
| Pressure relieve system | Piston |
| Product group | Motorized control valves |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Sealing material | EPDM |
| Spindle position | Normally closed |
| Stroke [mm] | 5 mm |
| Type | VGU |
| Valve body material | Red bronze, mat. No. 2.1096.1 (RG5) |
| Valve cone material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve seat material | Stainless steel, mat. No. 1.4571 |
| Application | Cooling |
| Cavitation factor | 0.6 |
| Connection size | G 1 1/4 A |
| Connection standard | ISO 228/1 |
| Connection types | External Thread |
| Description | VGU PN25 25/8 2-way thread flow/ret |
| Diameter [mm] | 25 mm |
| Differential pressure range [bar] [Max] | 20 bar |
| Flow characteristic | Approx. linear |
| Function | Control valve |
| In scope of WEEE and contain batteries | No |
| Kvs values [m³/h] | 8 m³/h |
| Leakage through port max. [% Kvs] | 0.05 |
| Media pH [Max] | 10 |
| Media pH [Min] | 7 |
| Media temperature [°C] [Max] | 150 °C |
| Media temperature [°C] [Min] | 2 °C |
| Medium alternative | Glycolic water up to 30% |
| Mounting version | Free |
| Number of ports | 2 |
| Permissible media | District heating/cooling circulation water |
| PN alternative VSP | 16 |
| Pressure nominal [bar] | 25 bar |
| Pressure relieve system | Piston |
| Product group | Motorized control valves |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Sealing material | EPDM |
| Spindle position | Normally closed |
| Stroke [mm] | 5 mm |
| Type | VGU |
| Valve body material | Red bronze, mat. No. 2.1096.1 (RG5) |
| Valve cone material | DZR brass CuZn36Pb2AS (CW 602N) |
| Valve seat material | Stainless steel, mat. No. 1.4571 |
Datasheet - PDF
▲| Заглавие: | Размер: | Тип: |
|---|---|---|
| PDF CATALOGUE DANFOSS HEATING EN .pdf | 11 Mbytes |
|
