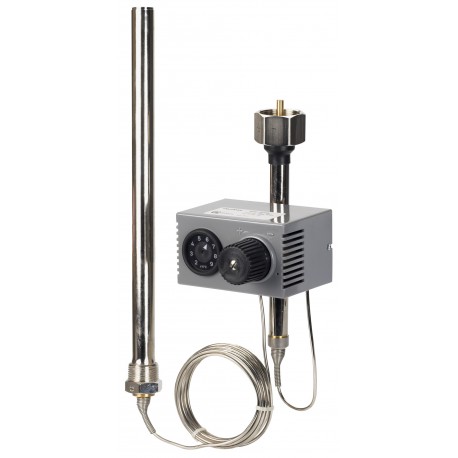

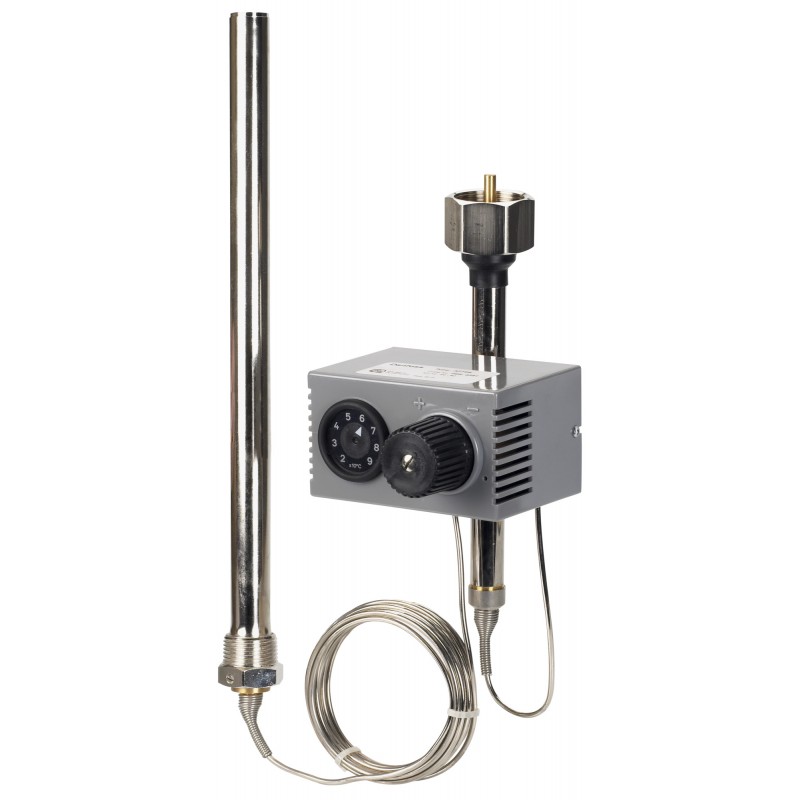

065-4392 DANFOSS HEATING AFT06 PN40 40-110/5m Bronze pocket
Reference: 065-4392
Manufacturer: DANFOSS HEATING
Description:
AFT06 PN40 40-110/5m Bronze pocket
AFT 06, 40 °C - 110 °C, 386 mm, 5 m
Categories:
- DANFOSS HEATING
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS HEATING
- More Info
- Reviews
LAST VIEWED
MORE INFO
AFT06 PN40 40-110/5m Bronze pocket
Product details
| Gross weight | 4.549 Kilogram |
| Net weight | 4.549 Kilogram |
| Volume | 37.926 Liter |
| EAN | 5702421807958 |
| Type | AFT 06 |
| Product group | Actuators - Temperature |
| Gross weight | 4.549 Kilogram |
| Net weight | 4.549 Kilogram |
| Volume | 37.926 Liter |
| EAN | 5702421807958 |
| Type | AFT 06 |
| Product group | Actuators - Temperature |
| Ambient temperature [°C] [max] | 70 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Approval standard | DIN EN 14597:2005-12 TR(TW)76107 |
| Capillary tube length [m] | 5 m |
| Contains batteries | No |
| Description | AFT06 PN40 40-110/5m Bronze pocket |
| Function | Temp. controller |
| Gain Ks | 0.8 |
| Impulse tube material | Copper mat. No 2.0090 |
| Media temperature at sensor [°C] [Max] | 210 °C |
| Mounting version | Free |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | ed87ec22-a47b-4139-aab5-e30be62a5a68 |
| SCIP dossier product name | Selfacting Thermostats - AFT |
| Sensor connection | R1 conic male thread acc. to DIN 2999 |
| Temperature sensor diameter [mm] | 22 mm |
| Temperature sensor length [mm] | 386 mm |
| Temperature sensor material | Copper mat. No 2.0090 |
| Temperature setting range [°C] [Max] | 110 °C |
| Temperature setting range [°C] [Min] | 40 °C |
| Time constant [sec] | 120 " |
| Transport temperature [°C] [Max] | 50 °C |
| Transport temperature [°C] [Min] | -20 °C |
| Ambient temperature [°C] [max] | 70 °C |
| Ambient temperature [°C] [min] | 0 °C |
| Approval standard | DIN EN 14597:2005-12 TR(TW)76107 |
| Capillary tube length [m] | 5 m |
| Contains batteries | No |
| Description | AFT06 PN40 40-110/5m Bronze pocket |
| Function | Temp. controller |
| Gain Ks | 0.8 |
| Impulse tube material | Copper mat. No 2.0090 |
| Media temperature at sensor [°C] [Max] | 210 °C |
| Mounting version | Free |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | ed87ec22-a47b-4139-aab5-e30be62a5a68 |
| SCIP dossier product name | Selfacting Thermostats - AFT |
| Sensor connection | R1 conic male thread acc. to DIN 2999 |
| Temperature sensor diameter [mm] | 22 mm |
| Temperature sensor length [mm] | 386 mm |
| Temperature sensor material | Copper mat. No 2.0090 |
| Temperature setting range [°C] [Max] | 110 °C |
| Temperature setting range [°C] [Min] | 40 °C |
| Time constant [sec] | 120 " |
| Transport temperature [°C] [Max] | 50 °C |
| Transport temperature [°C] [Min] | -20 °C |
